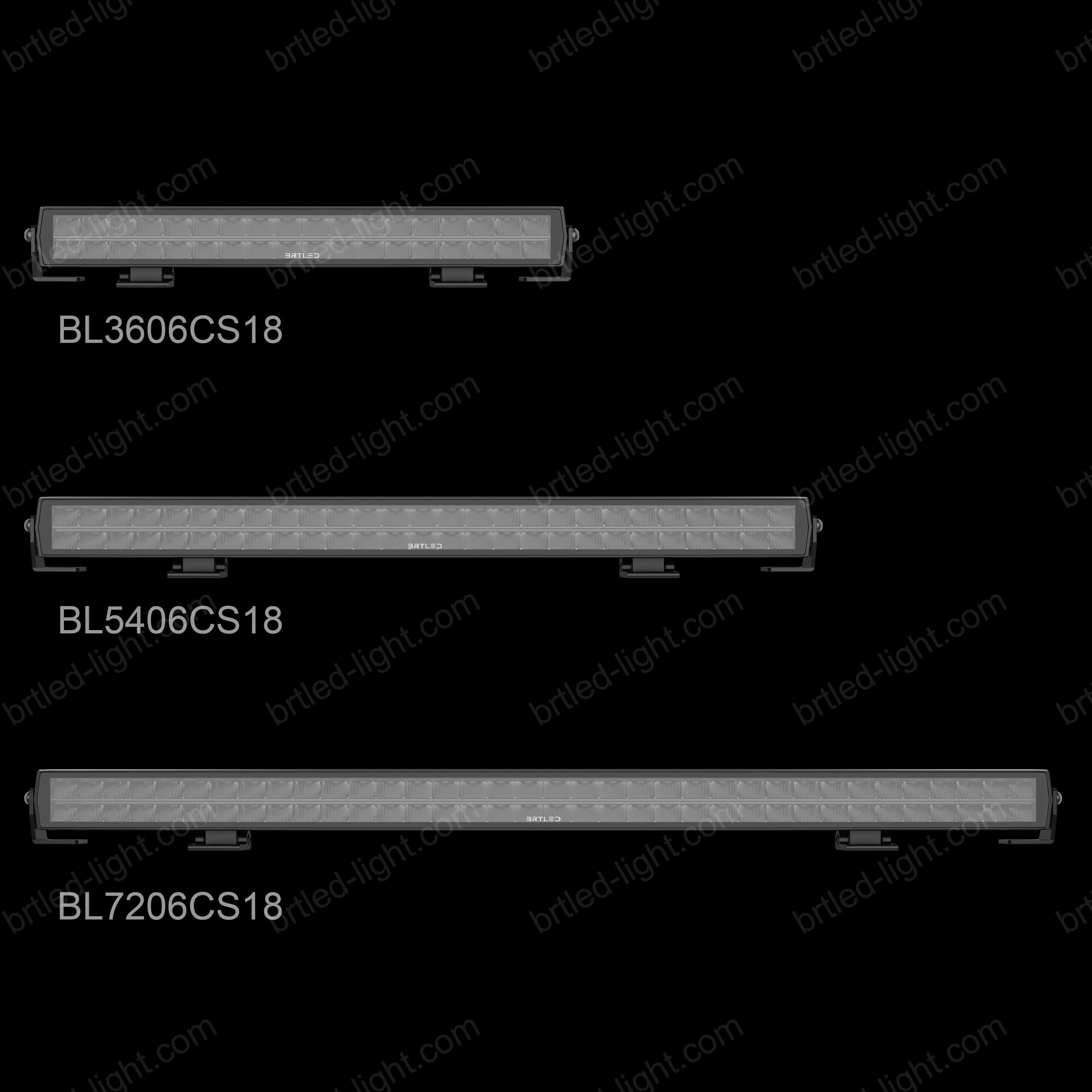

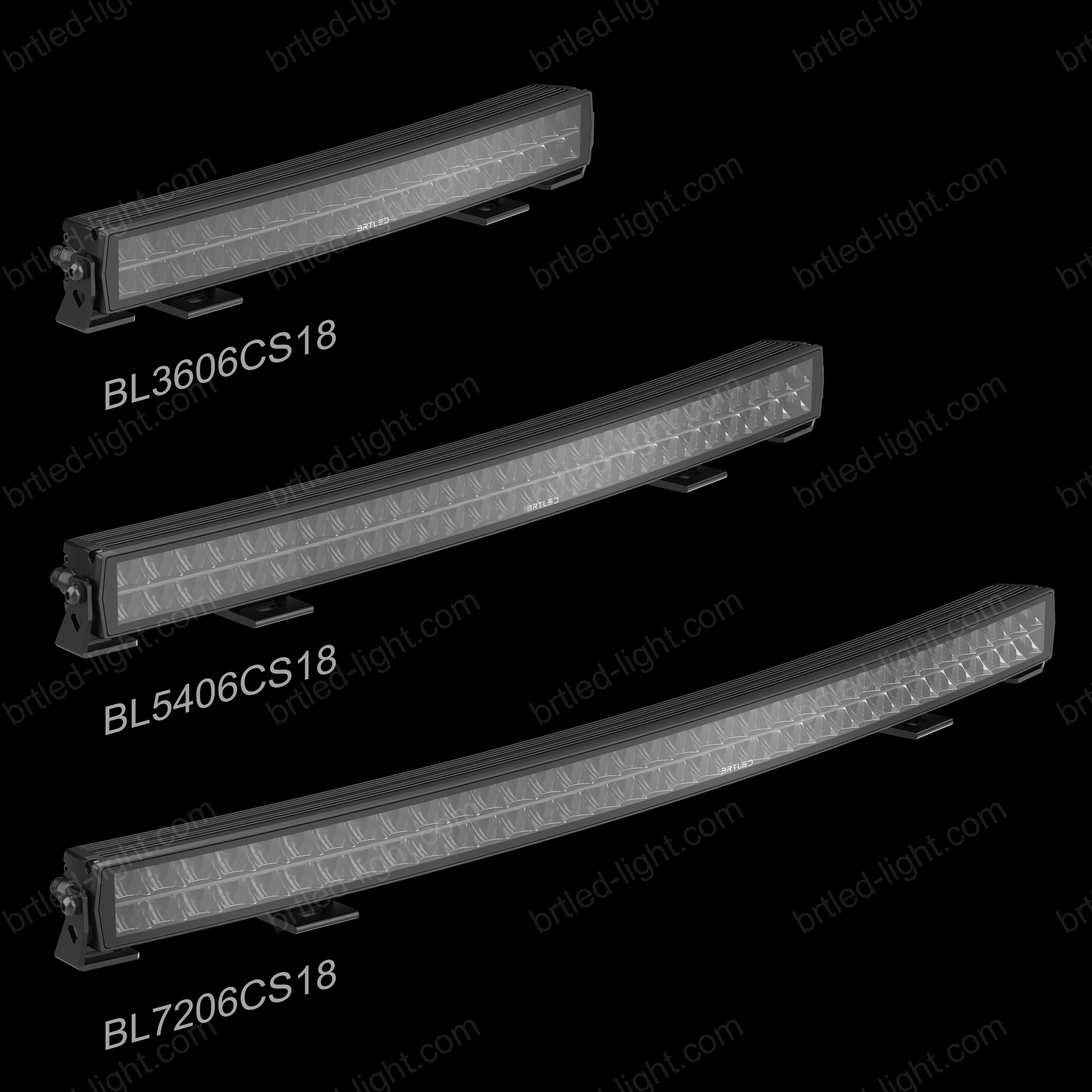

BL36-54-7206CS18
· Voltage: DC9-36V
· Driving Beam with/without Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10 / CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Driving Beam with/without Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10 / CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

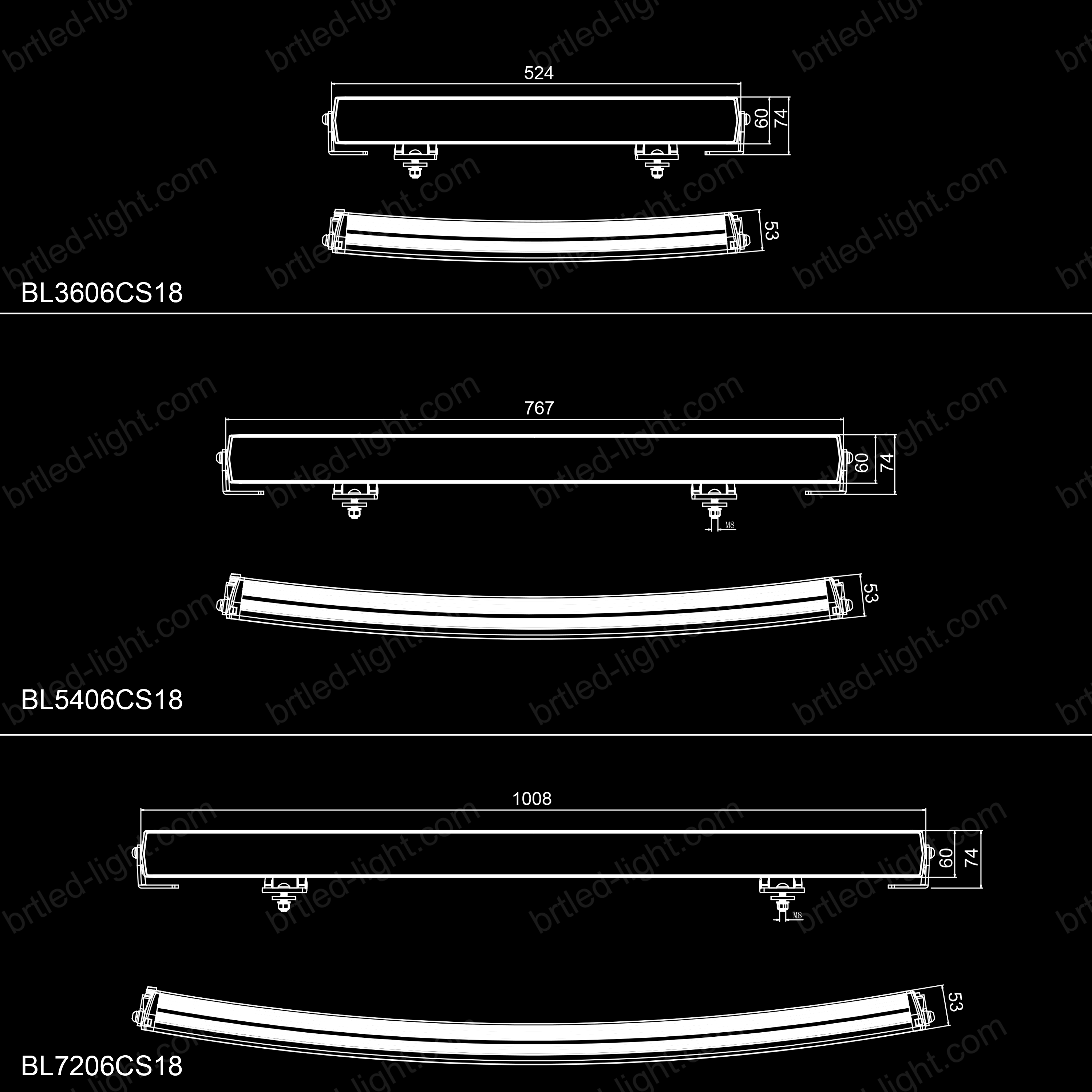

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |
| BL3606CS18 | 36X7W | 524*60*53mm | Driving Beam | Approved (Ref. No.:50) | Full power: 16.5A /7.1A ECE R112: 5.1A/2.4A | 19000LM | Full power:733M ECE R112: 463M |
| BL5406CS18 | 54X7W | 767*60*53mm | Driving Beam | Approved (Ref. No.:50) | Full power: 23.4A /11.2A ECE R112: 5.2A/2.6A | 27000LM | Full power:801M ECE R112: 463M |
| BL7206CS18 | 72X7W | 1008*60*53mm | Driving Beam | Approved (Ref. No.:50) | Full power: 33.4A /14.5A ECE R112: 6.2A/2.9A | 36000LM | Full power: 815M ECE R112: 463M |
