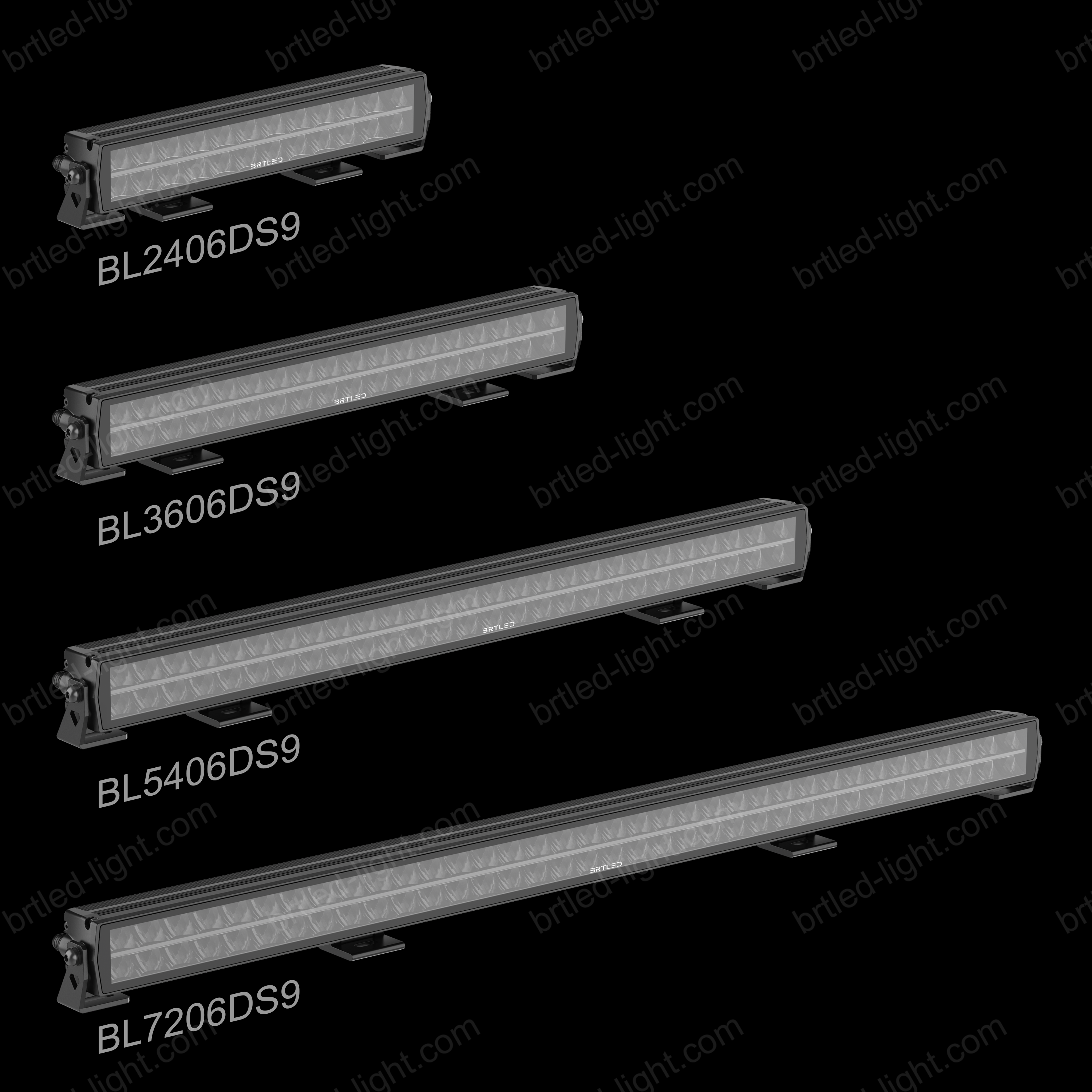

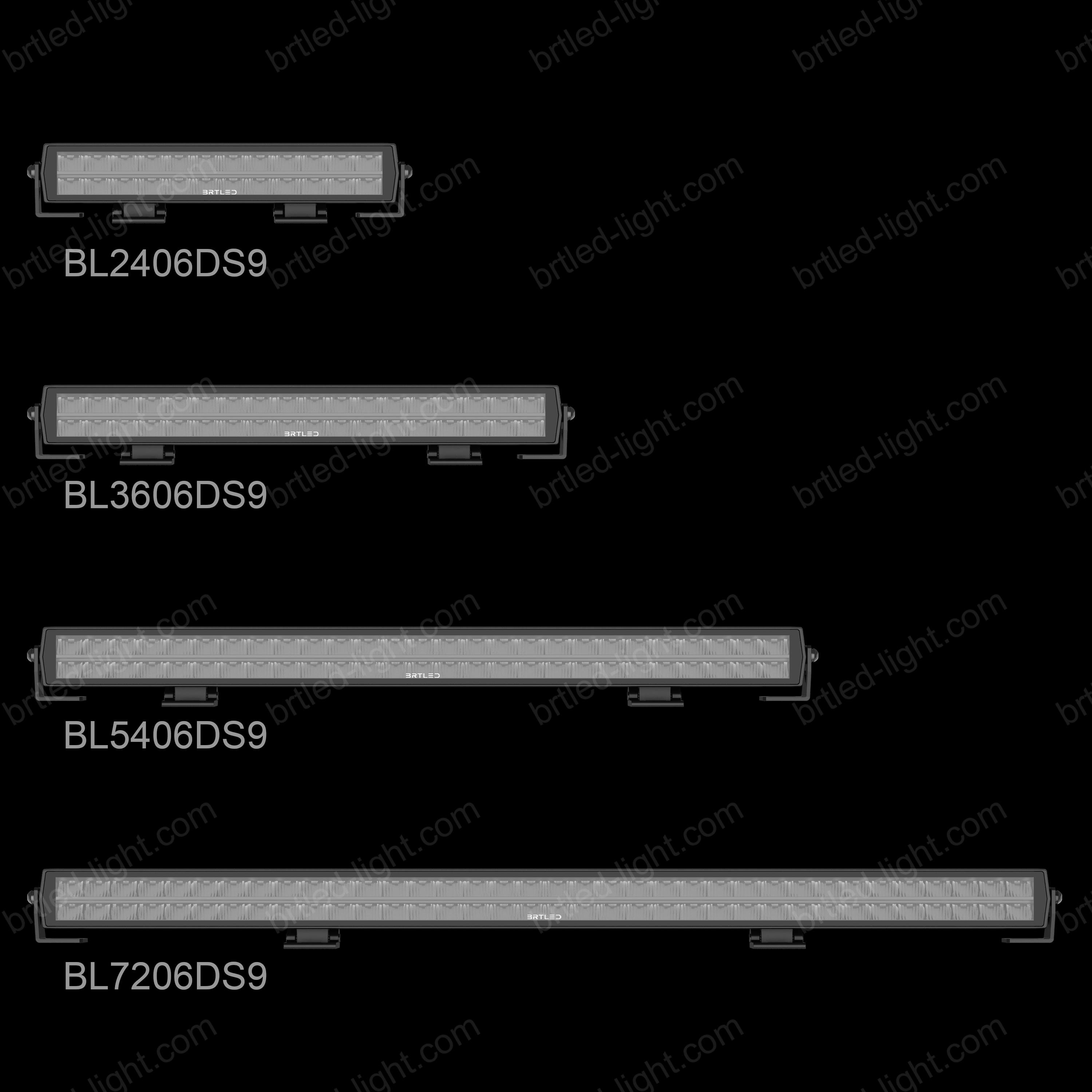

BL24-36-54-7206DS9

·Voltage: DC9-36V
· Driving Beam with/without Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/ CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C

Reservation Now

Next: BL36-54-7206CS18

Detail

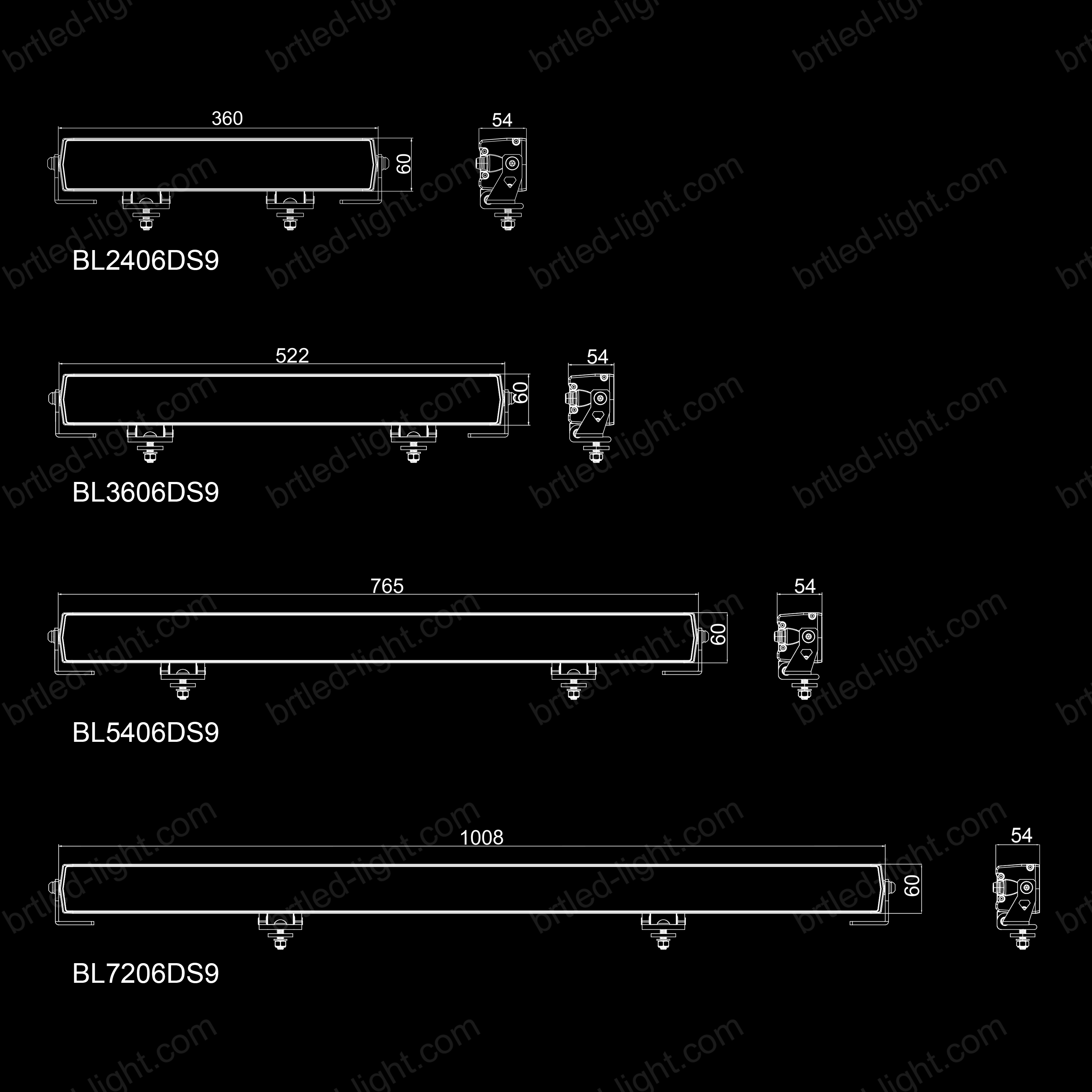

Part NO.	LEDs	Dimensions mm	Beam pattern	ECE R112	AMP Draw (12V/24V)	Raw Luminous Flux (LM)	LUX@1M
BL3606DS9	36X7W	5226054mm	Driving Beam	Approved (Ref. No.:50)	Full power: 15.2A /6.8A ECE R112: 3.7A/1.8A	19000LM	Full power:790M ECE R112: 463M
BL5406DS9	54X7W	7656054mm	Driving Beam	Approved (Ref. No.:50)	Full power: 23.4A /10.5A ECE R112: 4.5A/2.1A	27000LM	Full power:970M ECE R112: 463M
BL7206DS9	72X7W	10086054mm	Driving Beam	Approved (Ref. No.:50)	Full power: 32.5A /13.5A ECE R112:4.2A/2.0A	36000LM	Full power:1116M ECE R112: 463M
