BL18-27-3606CS15
· Voltage: DC9-36V
· Driving Beam with/without Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/ CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Driving Beam with/without Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/ CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

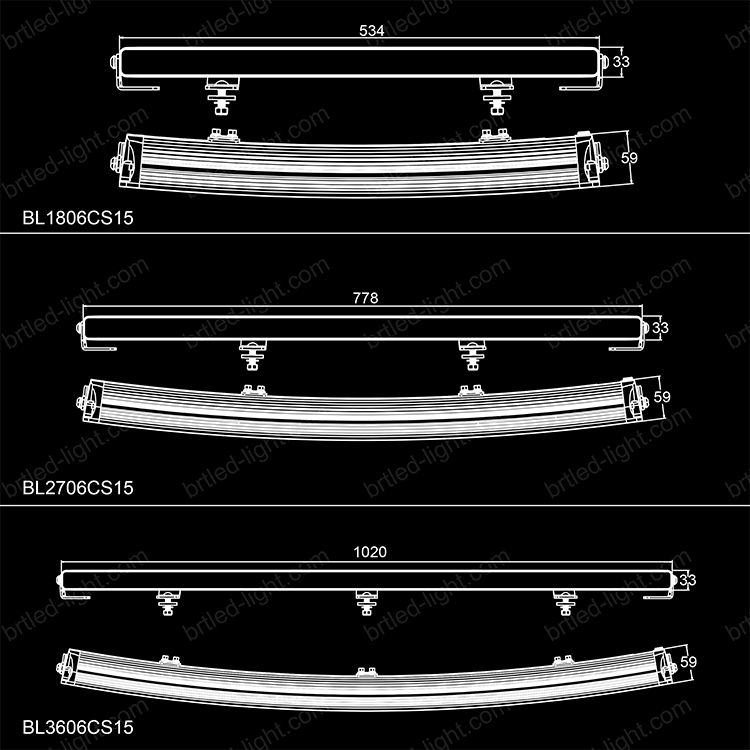

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

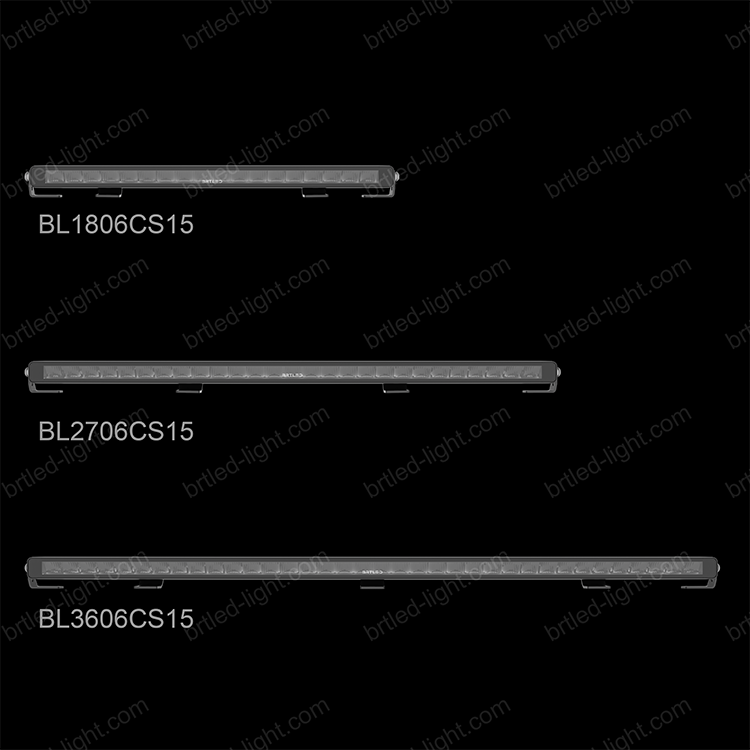

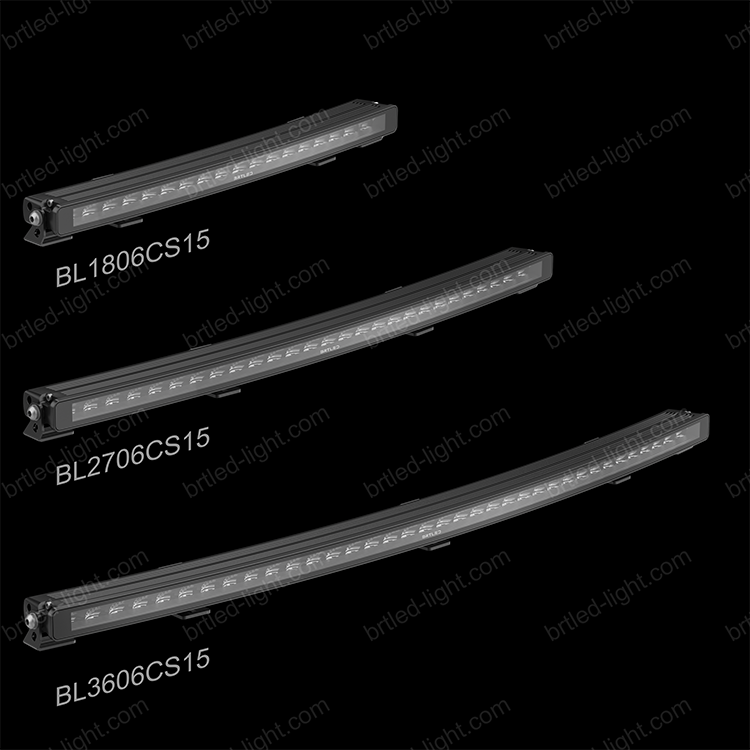

| BL1806CS15 | 18X6W | 534*33*59mm | Driving Beam | Approved (Ref. No.:50) | Full power: 9.6A/4.2A ECE R112: 5.4A/2.5A | 9600LM | Full power:502M ECE R112: 462M |
| BL2706CS15 | 27X6W | 777*33*59mm | Driving Beam | Approved (Ref. No.:50) | Full power: 14.5A/6.7A ECE R112: 7.1A/3.3A | 14600LM | Full power:572M ECE R112: 462M |
| BL3606CS15 | 36X6W | 1020*33*59mm | Driving Beam | Approved (Ref. No.:50) | Full power: 19.8A/8.4A ECE R112: 8.3A/4.1A | 19400LM | Full power:602M ECE R112: 462M |
