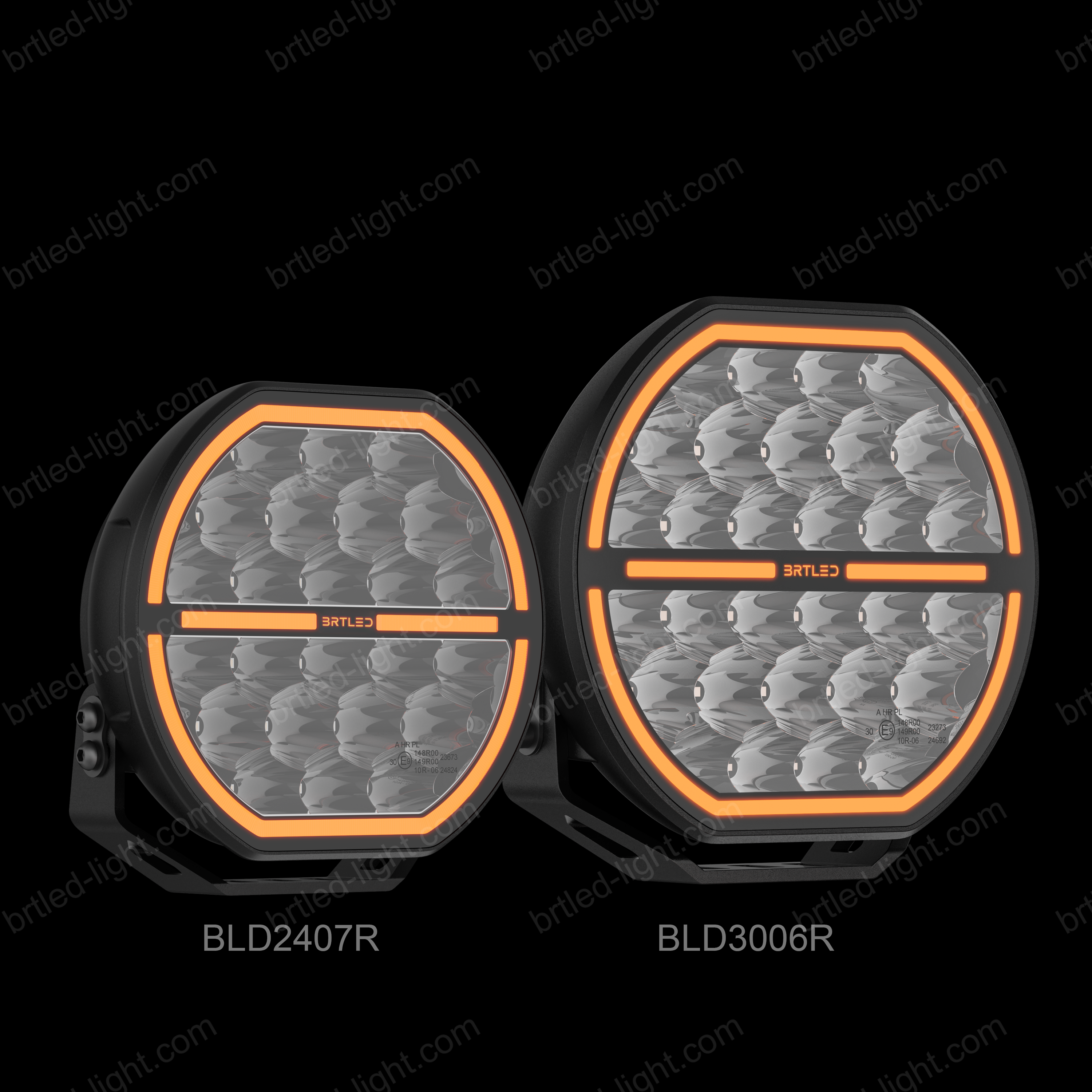

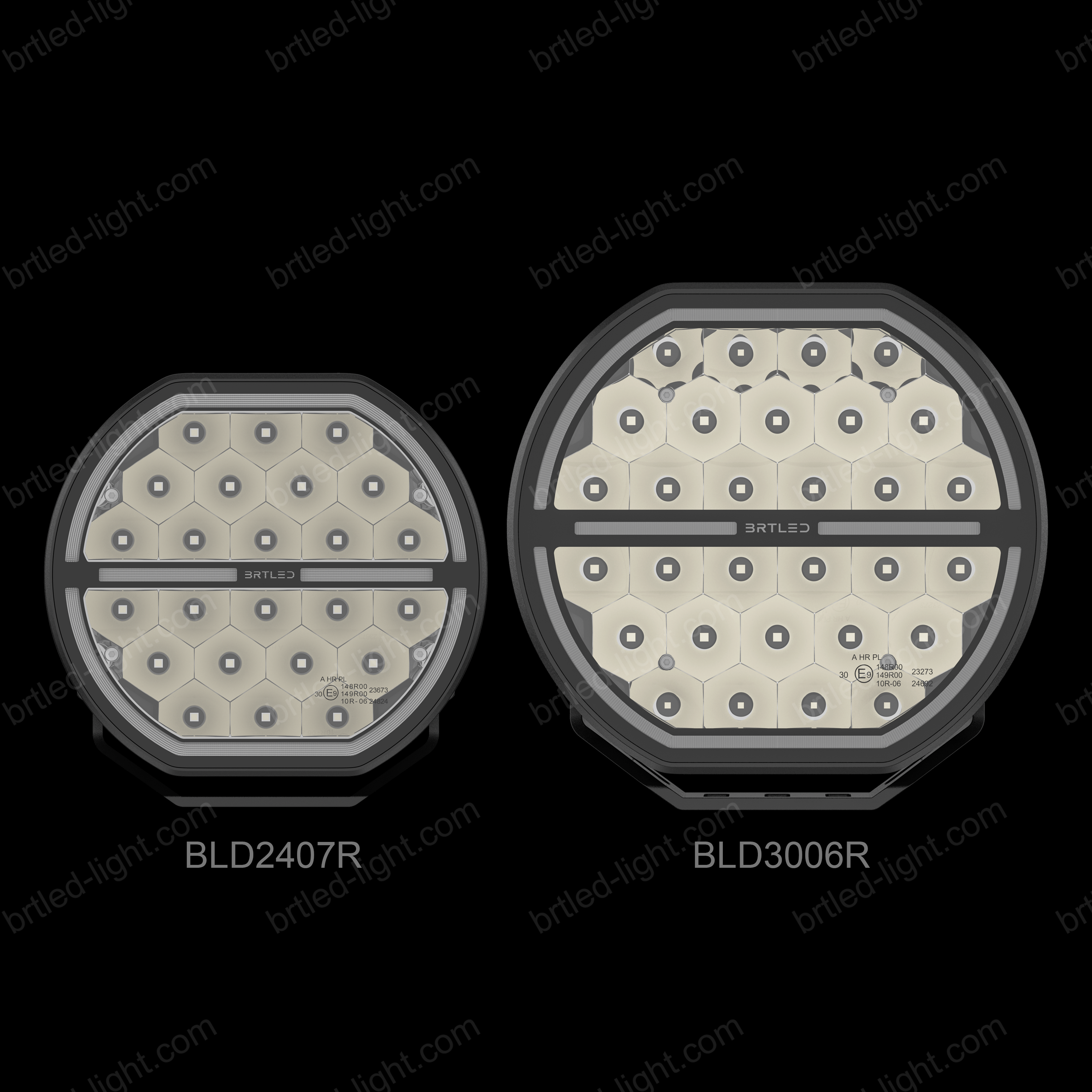

BLD2407R BLD3006R
·Voltage: DC9-36V
· Spot Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Spot Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

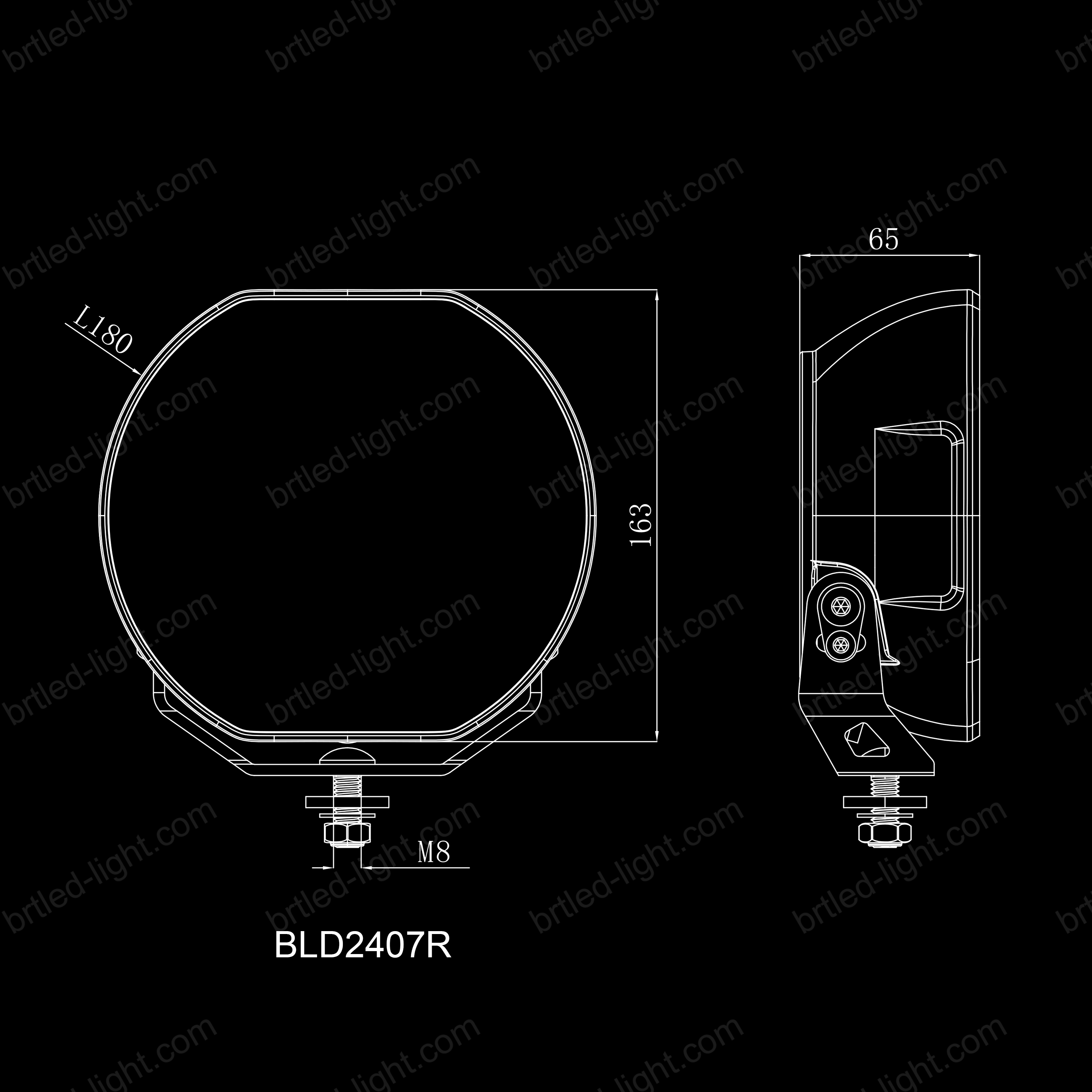

| BLD2407R | 24X6W | 180*163*65mm | Spot beam | Approved (Ref. No.:35) | Full power: 12A/5.7A ECE R112: 1.6A/0.8A | 13000LM | Full power:790M ECE R112: 359M |

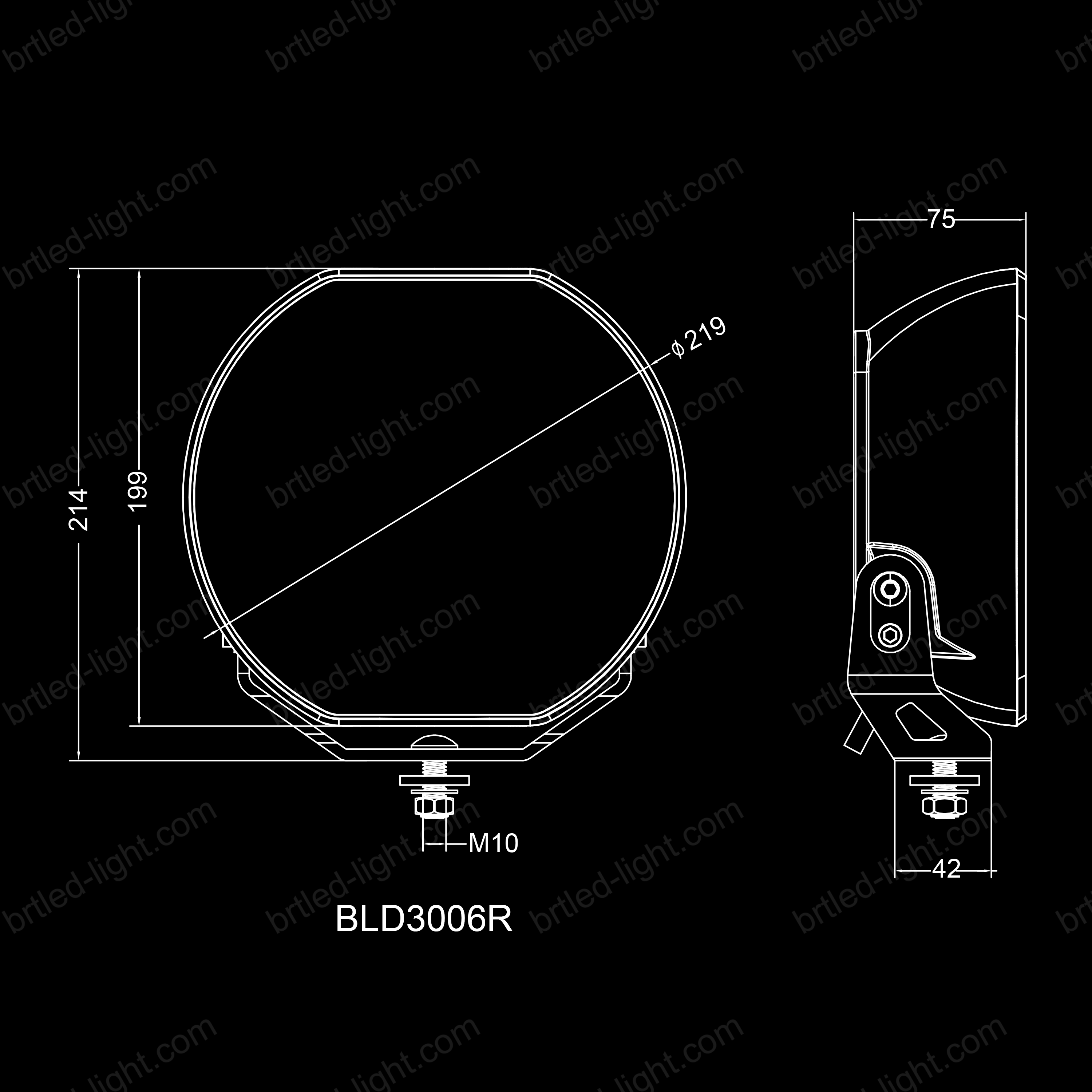

| BLD3006R | 22X6W+8X4W | 219*214*75mm | Spot beam | Approved (Ref. No.:30) | Full power: 12.8A/5.9A ECE R112: 2.2A/1A | 15000LM | Full power:1046M ECE R112: 359M |
