BL09-18-27-36-4505S7

·Voltage: DC9-36V
· Combo Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C

Reservation Now

Prev: BL1215CS4 BL1815CS4

Next: BLD2407R BLD3006R

Detail

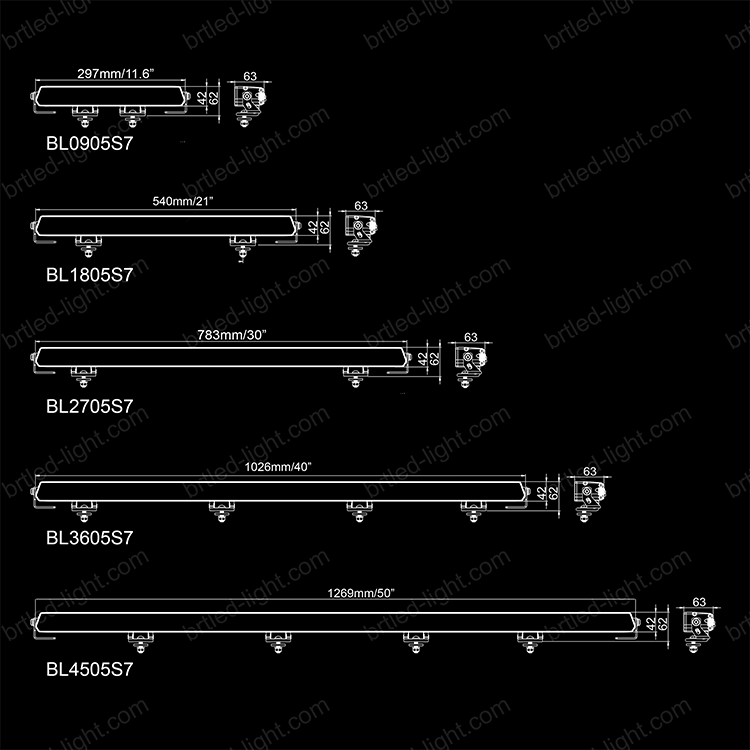

Part NO.	LEDs	Dimensions mm	Beam pattern	ECE R112	AMP Draw (12V/24V)	Raw Luminous Flux (LM)	LUX@1M
BL0905S7	9X6W	2974262.5mm	Combo Beam	Approved (Ref. No.:17.5)	Full power: 4.5A /2.3A ECE R112: 2A/1A	4900LM	Full power:366M ECE R112: 272M
BL1805S7	18X6W	5404262.5mm	Combo Beam	Approved (Ref. No.:25)	Full power: 10.3A /4.3A ECE R112: 3A/1.3A	9600LM	Full power:526M ECE R112: 328M
BL2705S7	27X6W	7834262.5mm	Combo Beam	Approved (Ref. No.:50)	Full power: 15.3A /6.5A ECE R112: 6A/2.7A	14600LM	Full power:598M ECE R112: 468M
BL3605S7	36X6W	10264262.5mm	Combo Beam	Approved (Ref. No.:50)	Full power: 23.2A /8.8A ECE R112: 6.1A/2.8A	19400LM	Full power:684M ECE R112: 468M
BL4505S7	45X6W	12694262.5mm	Combo Beam	Approved (Ref. No.:50)	Full power: 24A /9.6A ECE R112: 3.7A/1.8A	24000LM	Full power:844M ECE R112: 468M
