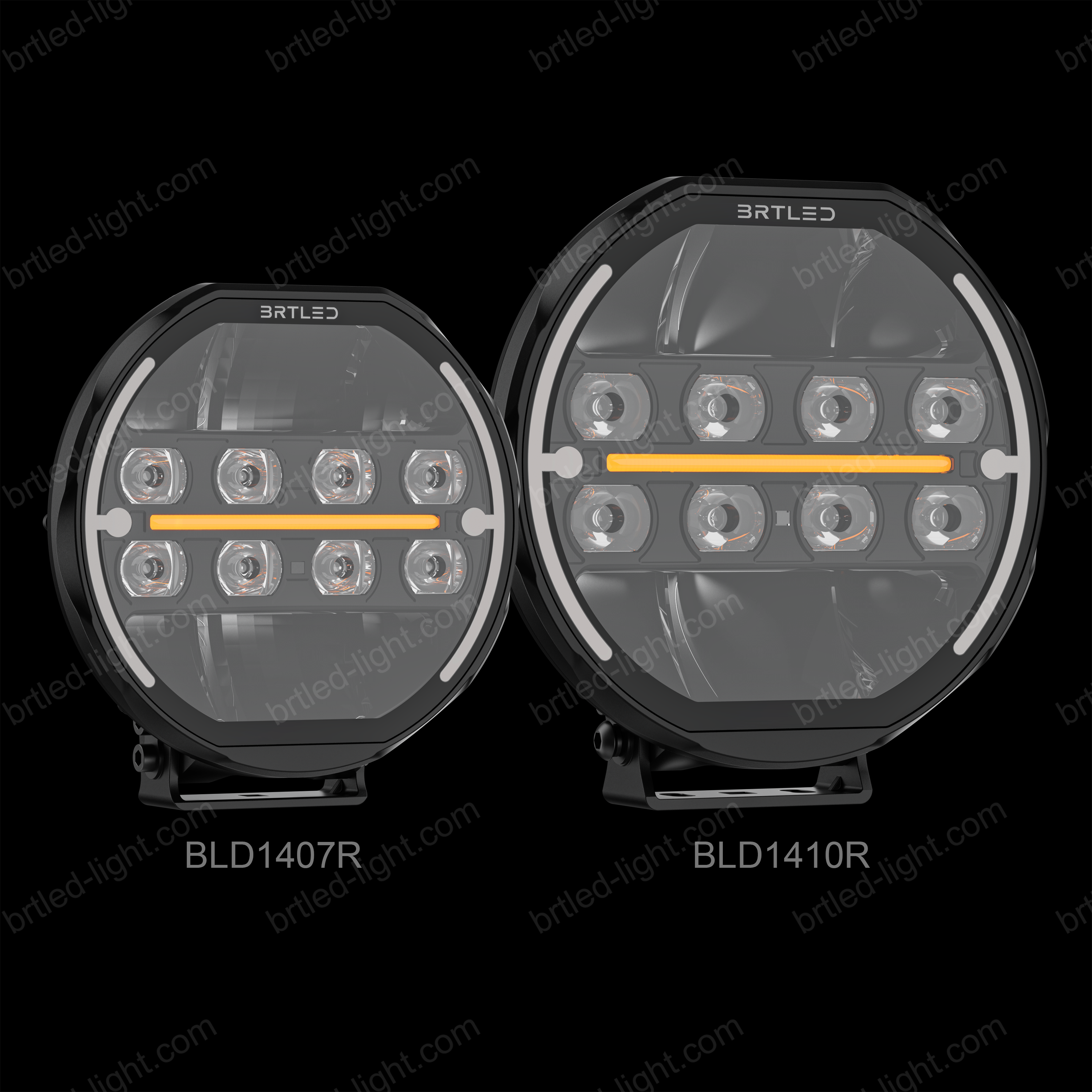

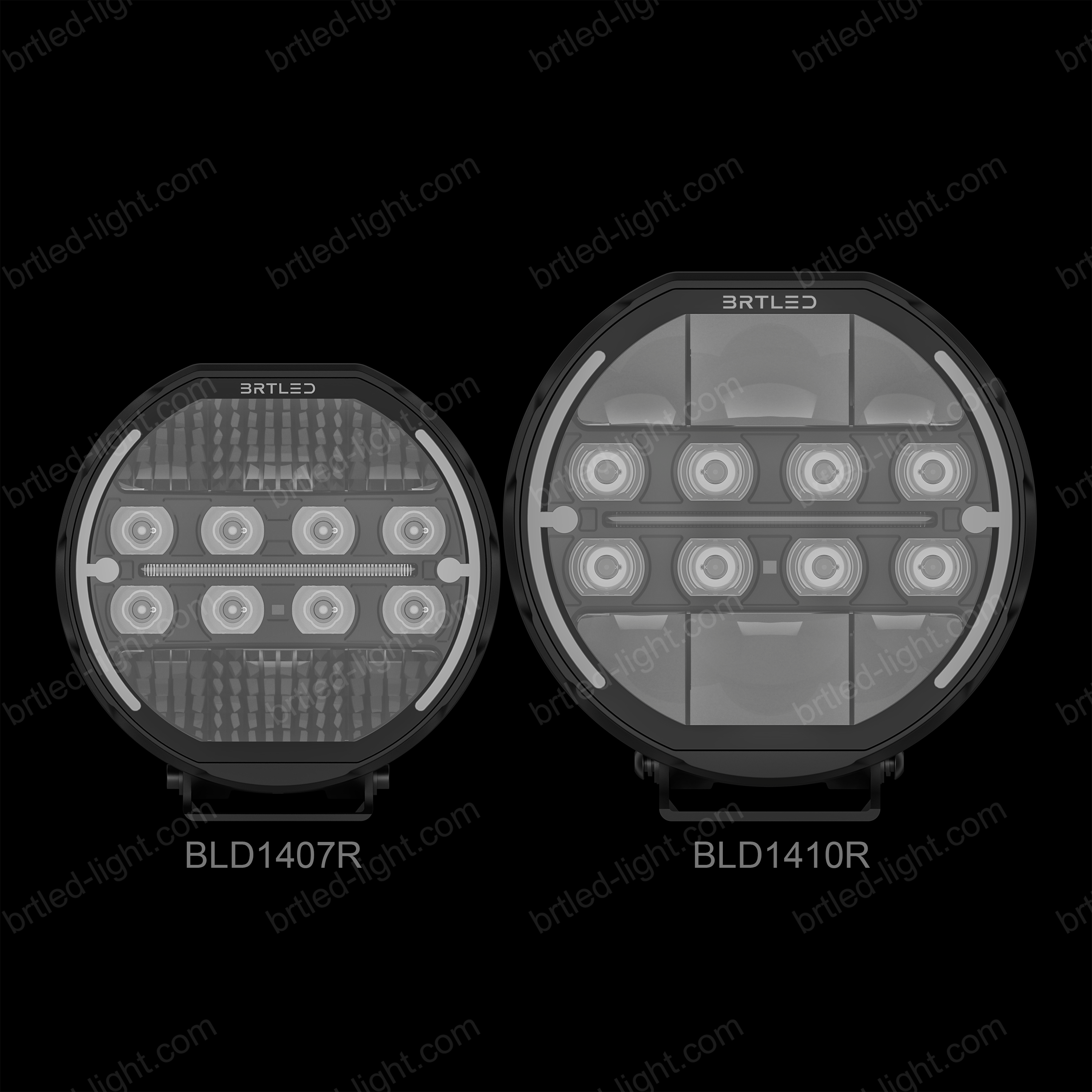

BLD1407R BLD1410R
·Voltage: DC9-36V
· Driving Beam with Dual Position Light+heating function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Driving Beam with Dual Position Light+heating function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

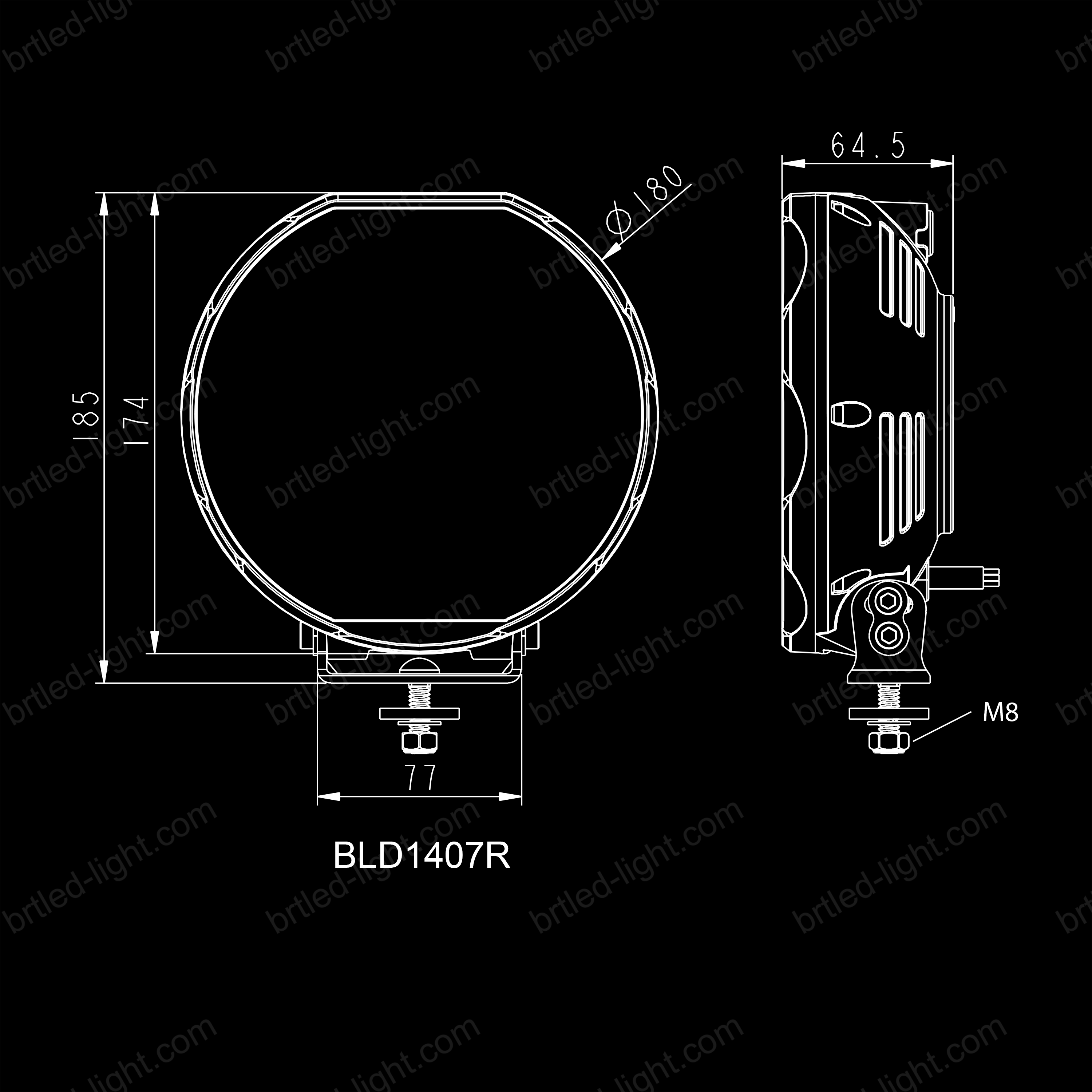

| BLD1407R | 6X10W+8X6W | Φ180*185*64.5mm | Driving beam | Approved (Ref. No.:25) | Full power: 9.5A/4.3A ECE R112: 4.0A/1.9A | 11000LM | Full power:465M ECE R112: 327M |

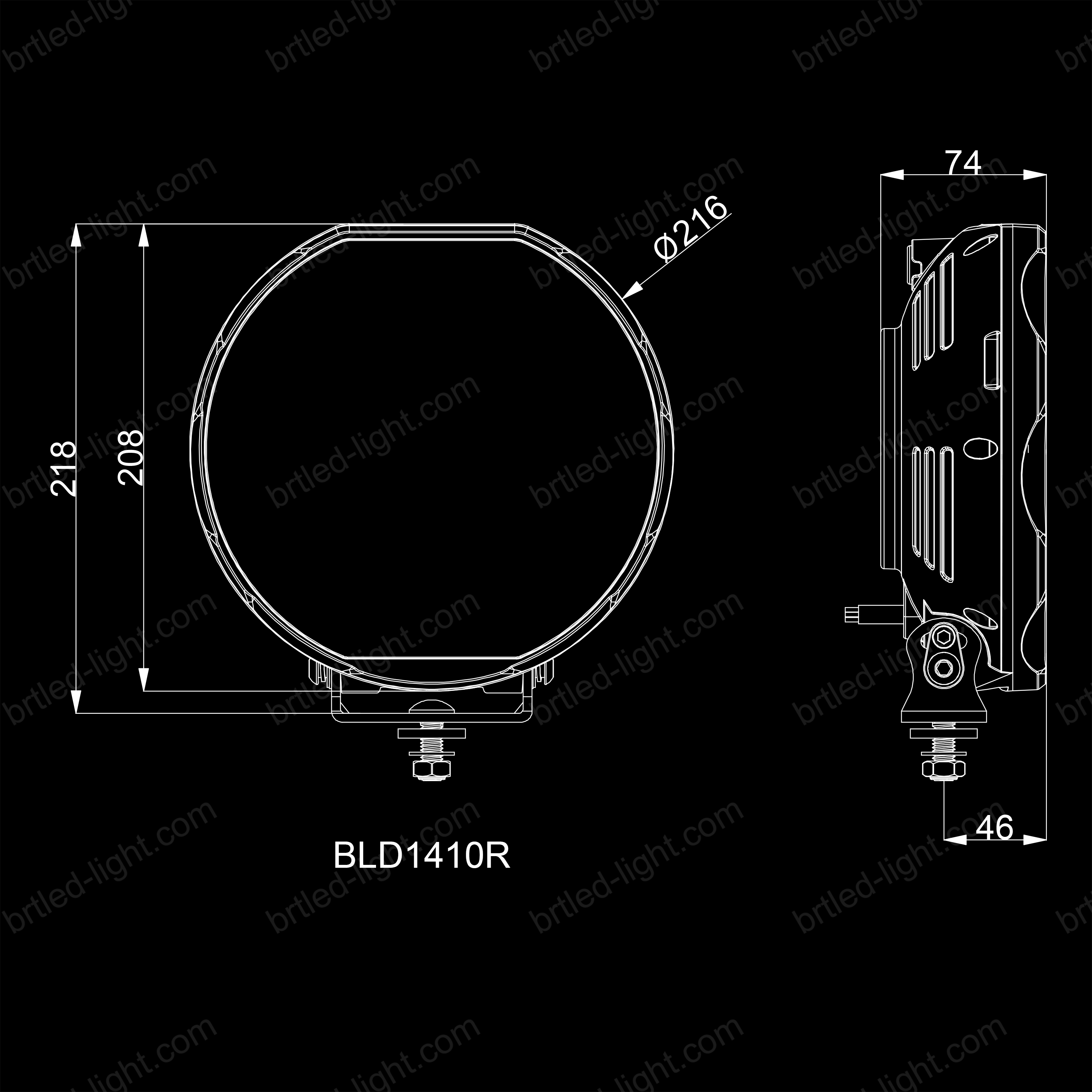

| BLD1410R | 6X20W+8X10W | Φ216*222*62mm | Driving beam | Approved (Ref. No.:50) | Full power: 16.8A/8.3A ECE R112: 10A/5.3A | 17500LM | Full power:552M ECE R112: 478M |
