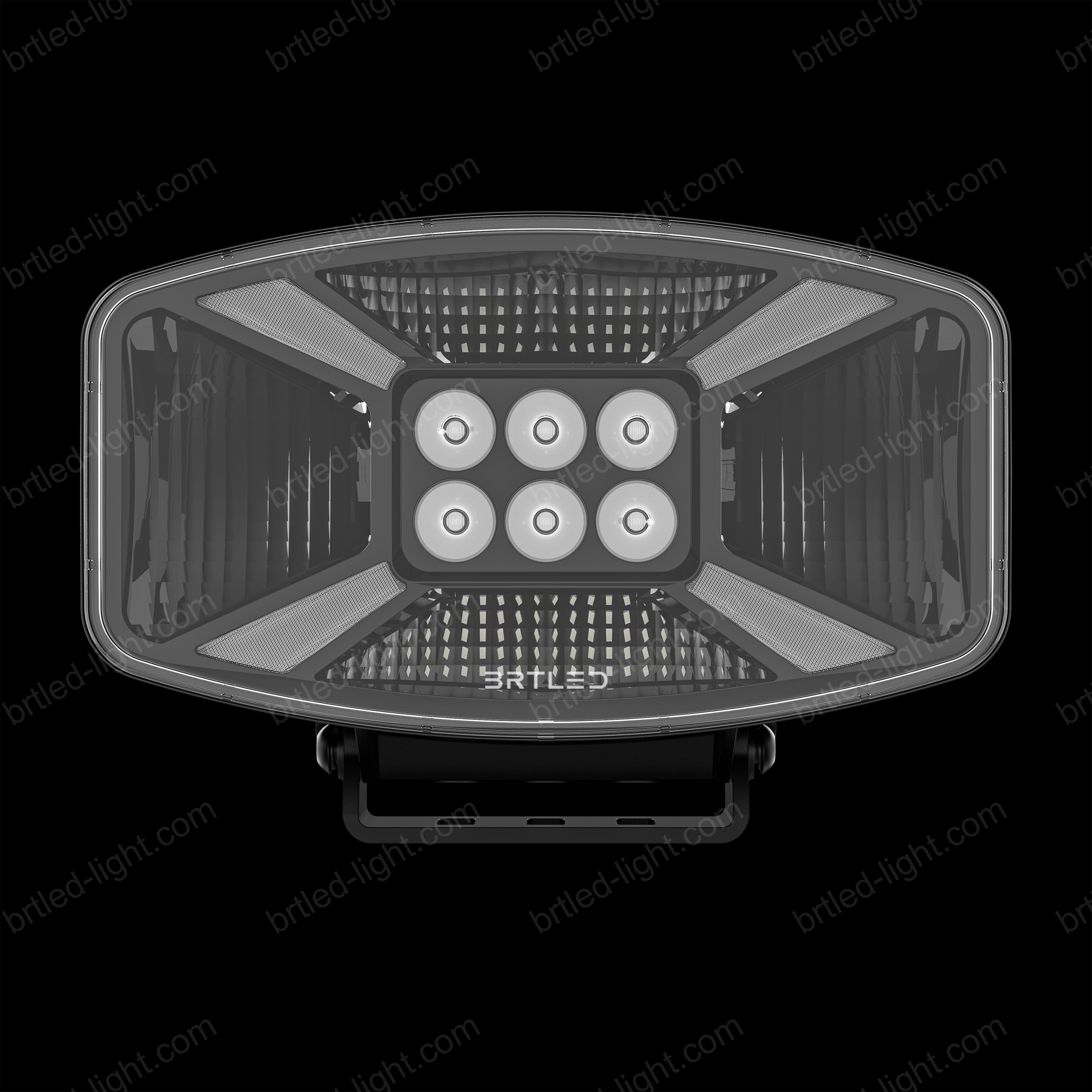

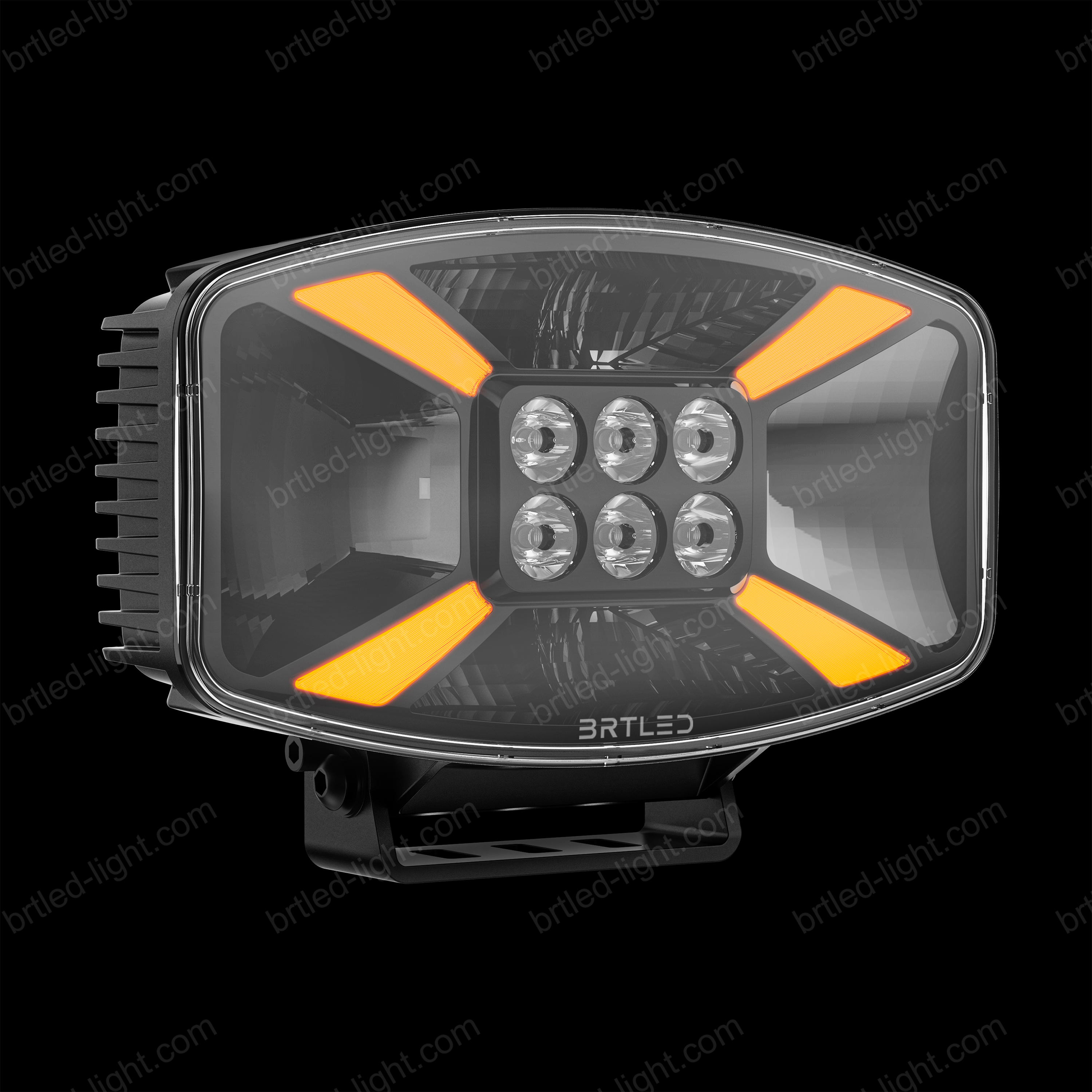

BLD1212S-WL
·Voltage: DC9-36V
· Combo Beam with Dual Position Light with warning light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE/R65
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Combo Beam with Dual Position Light with warning light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE/R65
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux(LM) | LUX@1M |

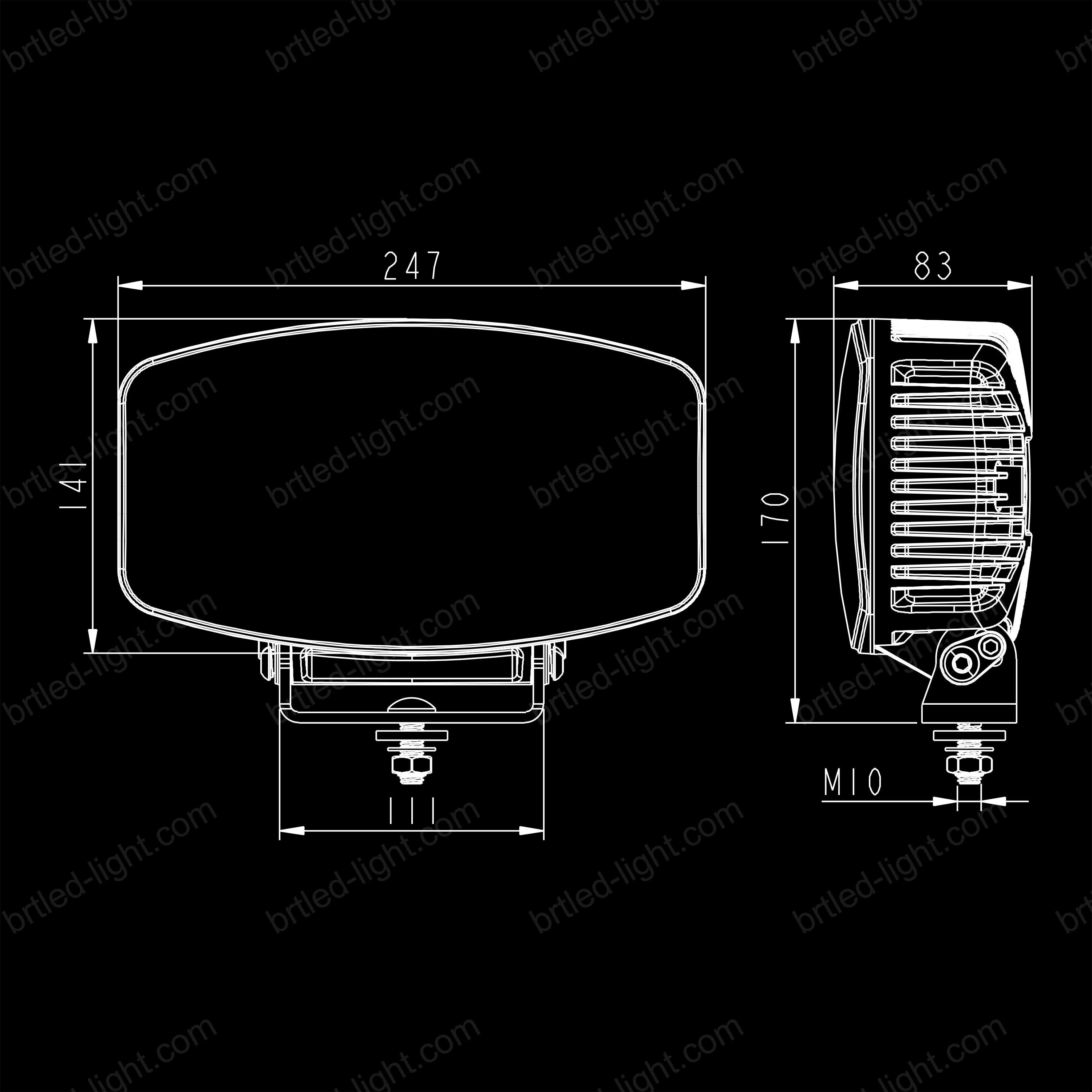

| BLD1212S-WL | 10X10W+2X20W | 247*141*83mm | Combo Beam | Approved (Ref. No.:50) | Full power: 11.6A/5.5A ECE R112: 5.2A/2.7A | 11000LM | Full power:556M ECE R112: 415M |
