BLD1205R-B BLD1210R-B
·Voltage: DC9-36V
· Euro Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Euro Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

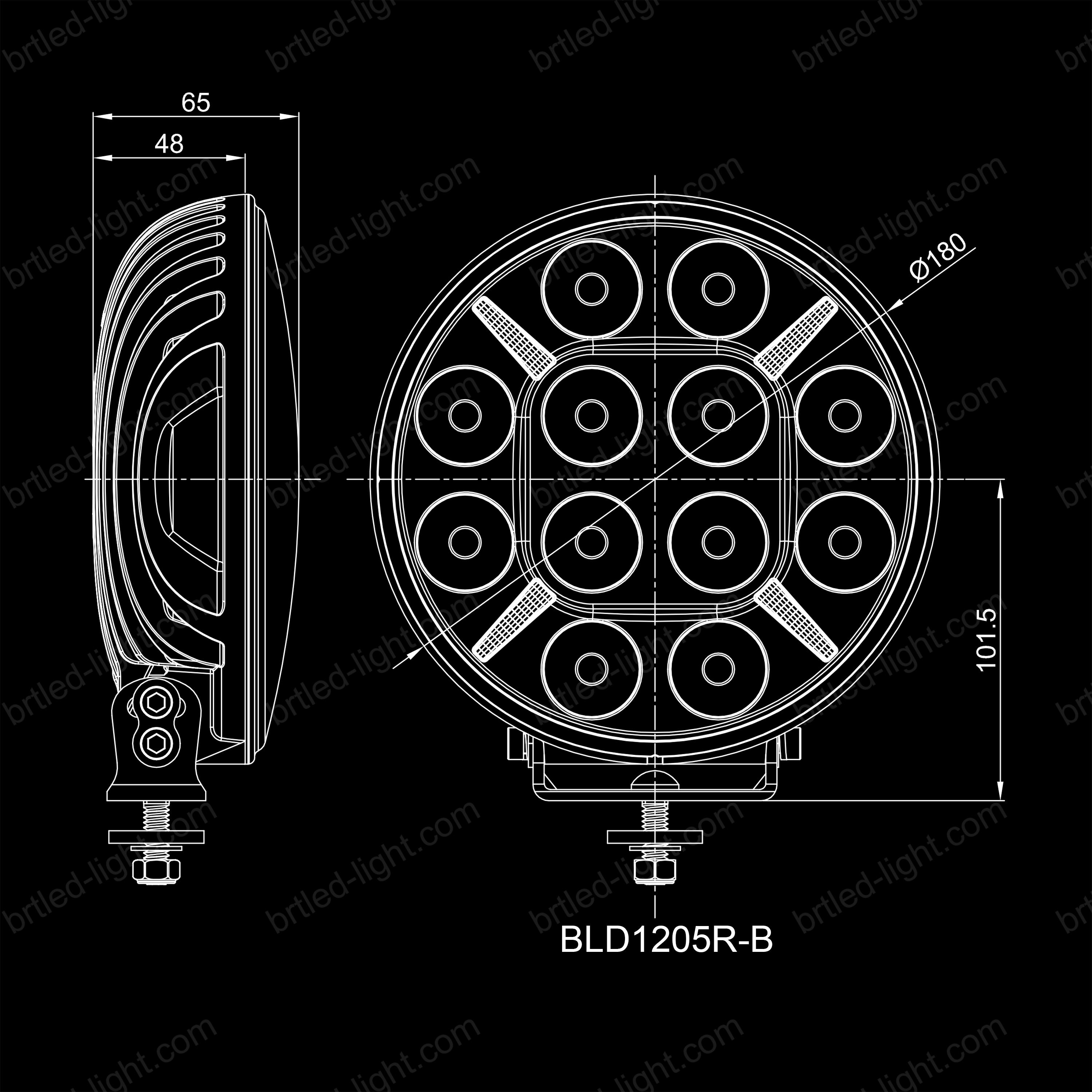

| BLD1205R-B | 12X6W | Φ180*55mm | Euro Beam | Approved (Ref. No.:30) | Full power: 6A/3.5A ECE R112: 4.2A/2.1A | 7200LM | Full power:430M ECE R112: 380M |

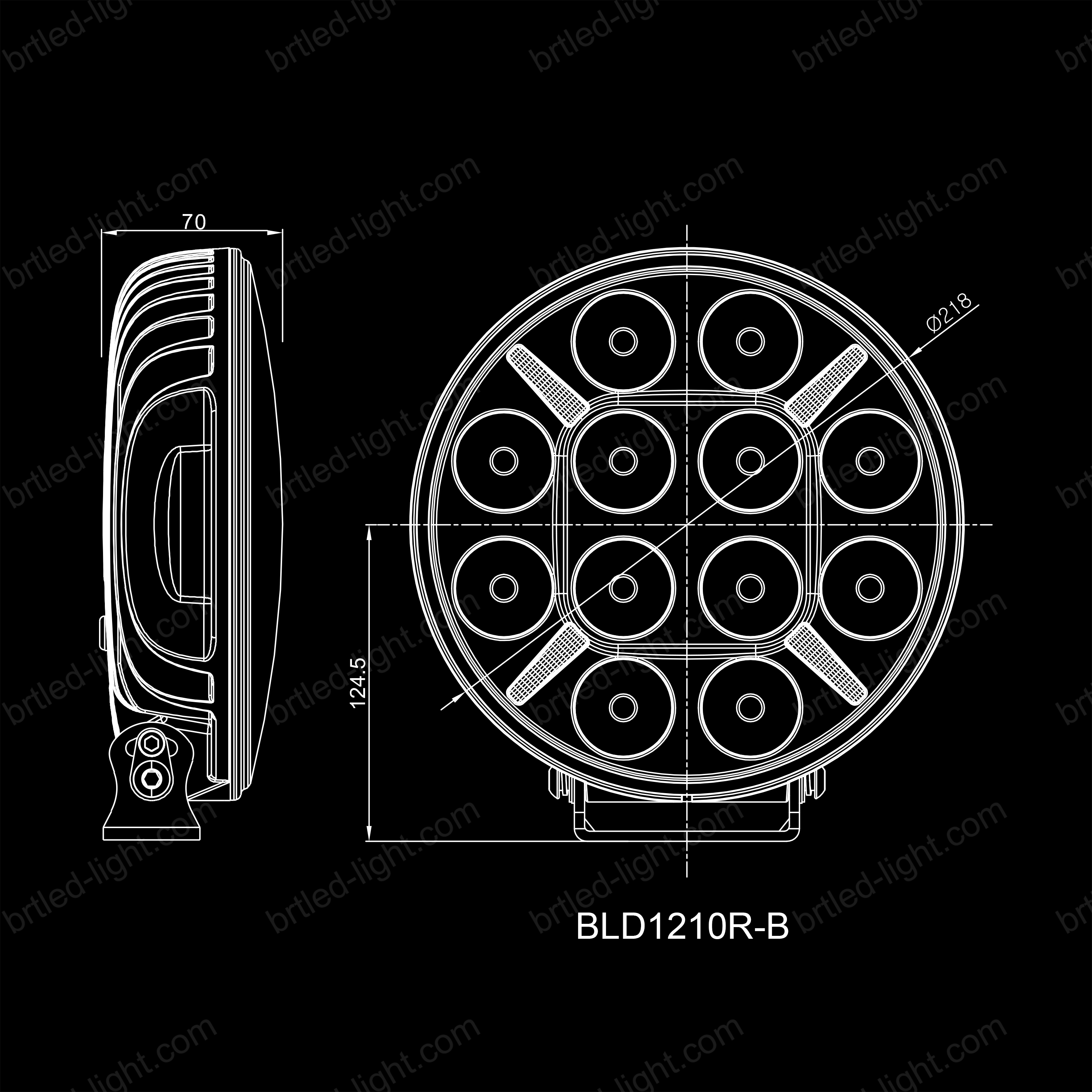

| BLD1210R-B | 12X10W | Φ218*70mm | Combo beam/ Spot beam | Approved (Ref. No.:37.5/50) | Full power: 9.8A/4.6A ECE R112: 3.2A/1.6A | 13000LM | Combo beam：659M Spot beam：805M |
