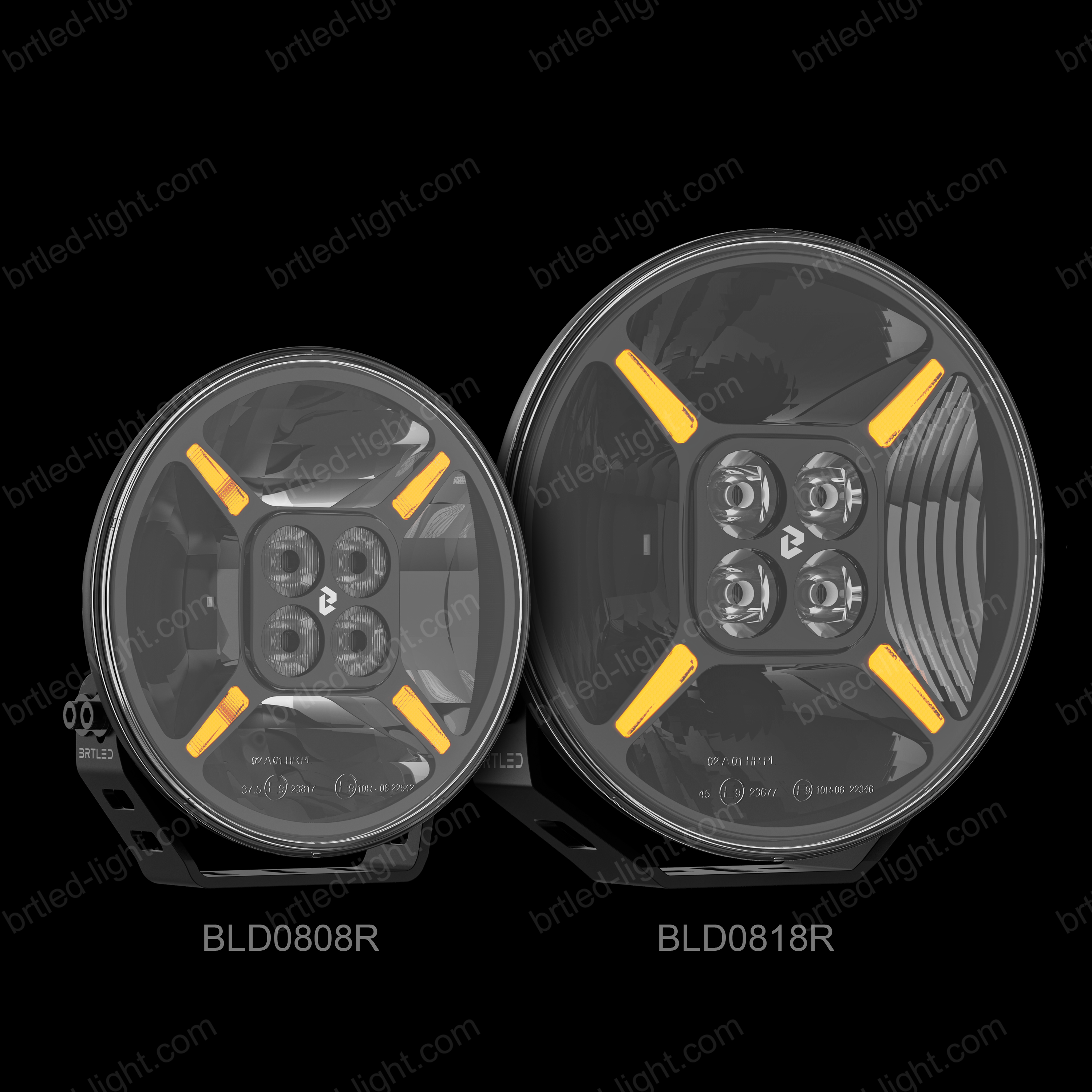

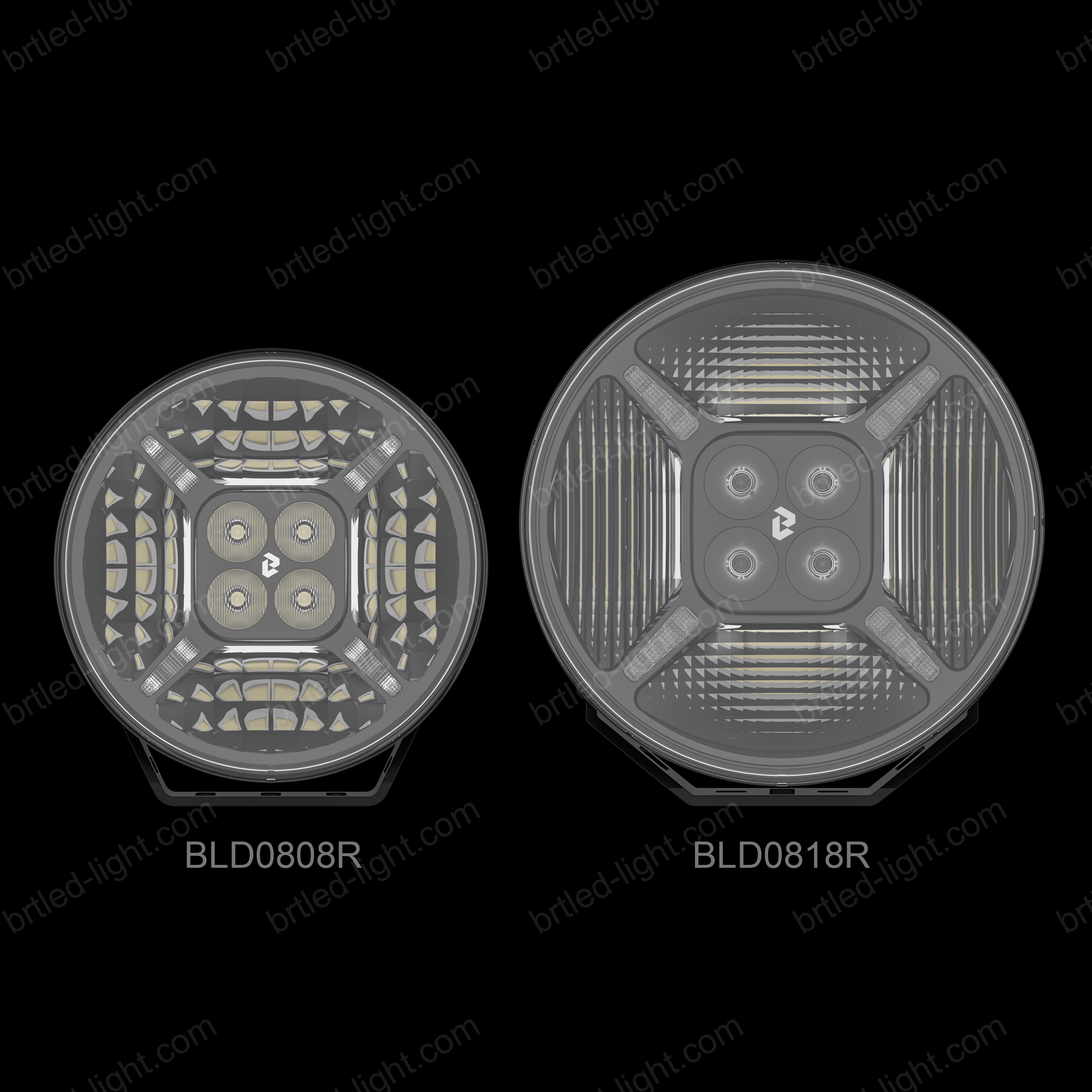

BLD0808R BLD0818R-WL
·Voltage: DC9-36V
· Driving Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE/R65-BLD0818R-WL
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Driving Beam with Dual Position Light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 / R10/CE/R65-BLD0818R-WL
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

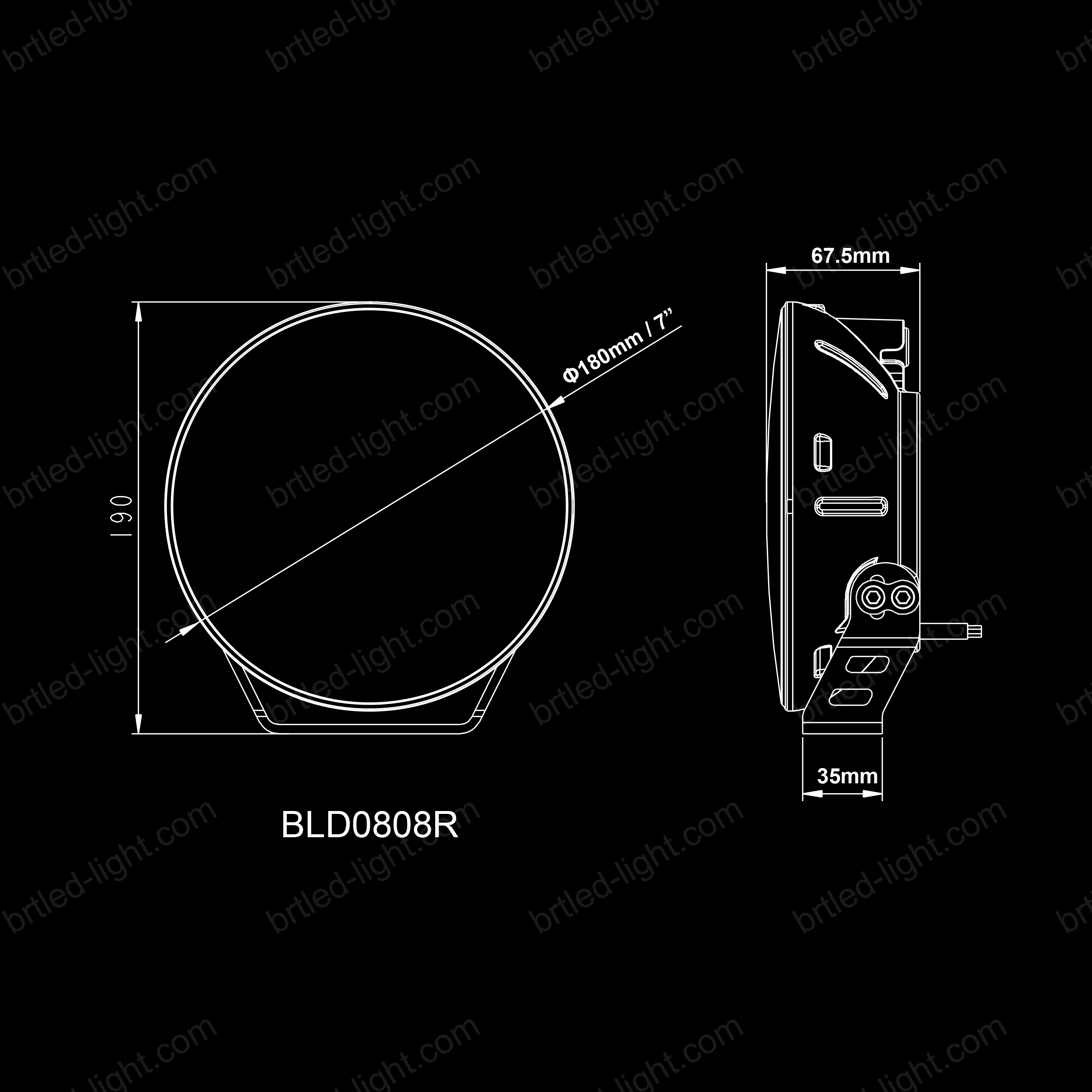

| BLD0808R | 4X10W+4X5W | Φ180*190*67.5mm | Driving beam | Approved (Ref. No.:37.5) | ECE R112: 4A/2A | 6000LM | ECE R112: 406M |

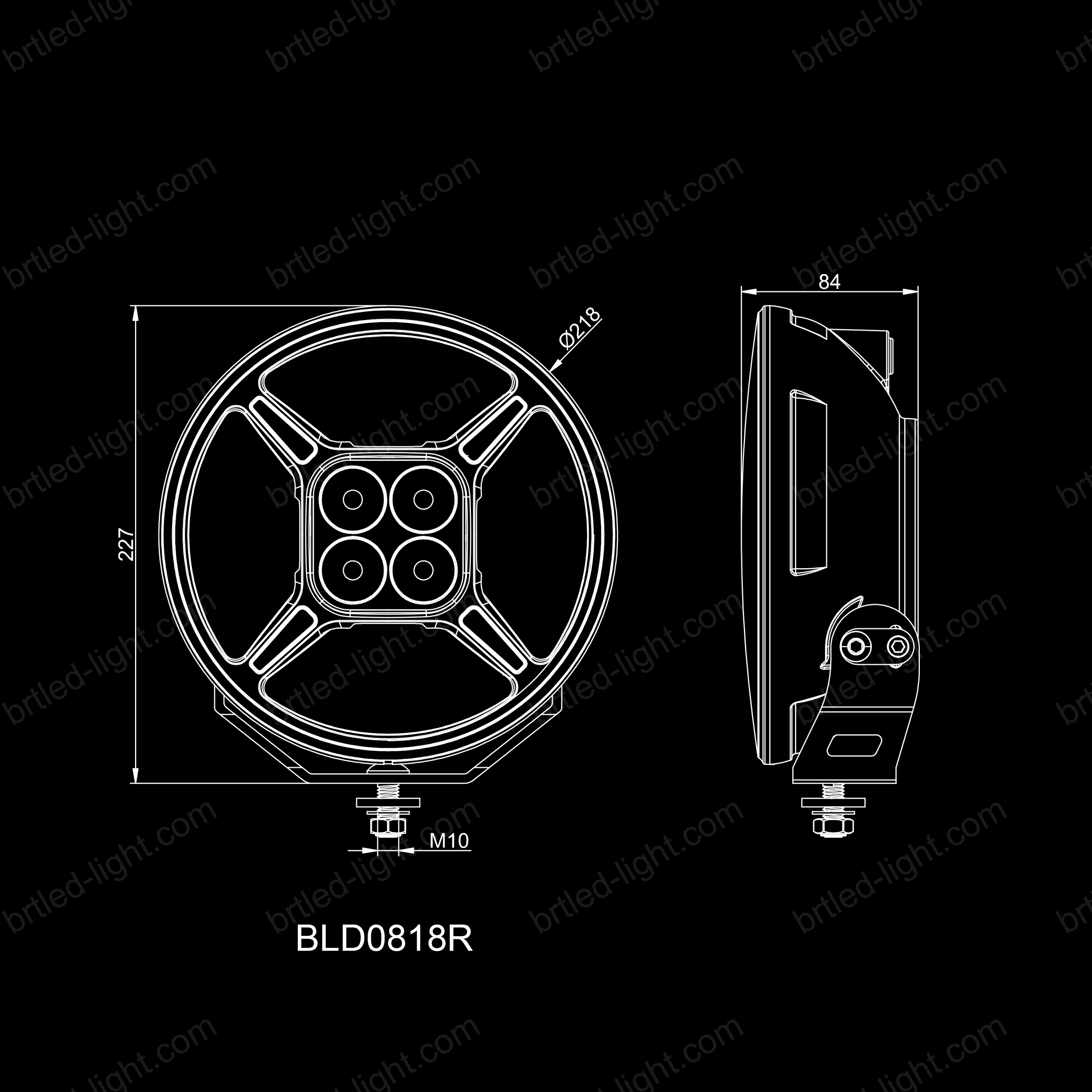

| BLD0818R-WL | 4X30W+4X10W | Φ218*232*84mm | Driving beam | Approved (Ref. No.:30) | Full power: 13A/5.8A ECE R112: 2.2A/1.1A | 16500LM | Full power: 747M ECE R112: 360M |
