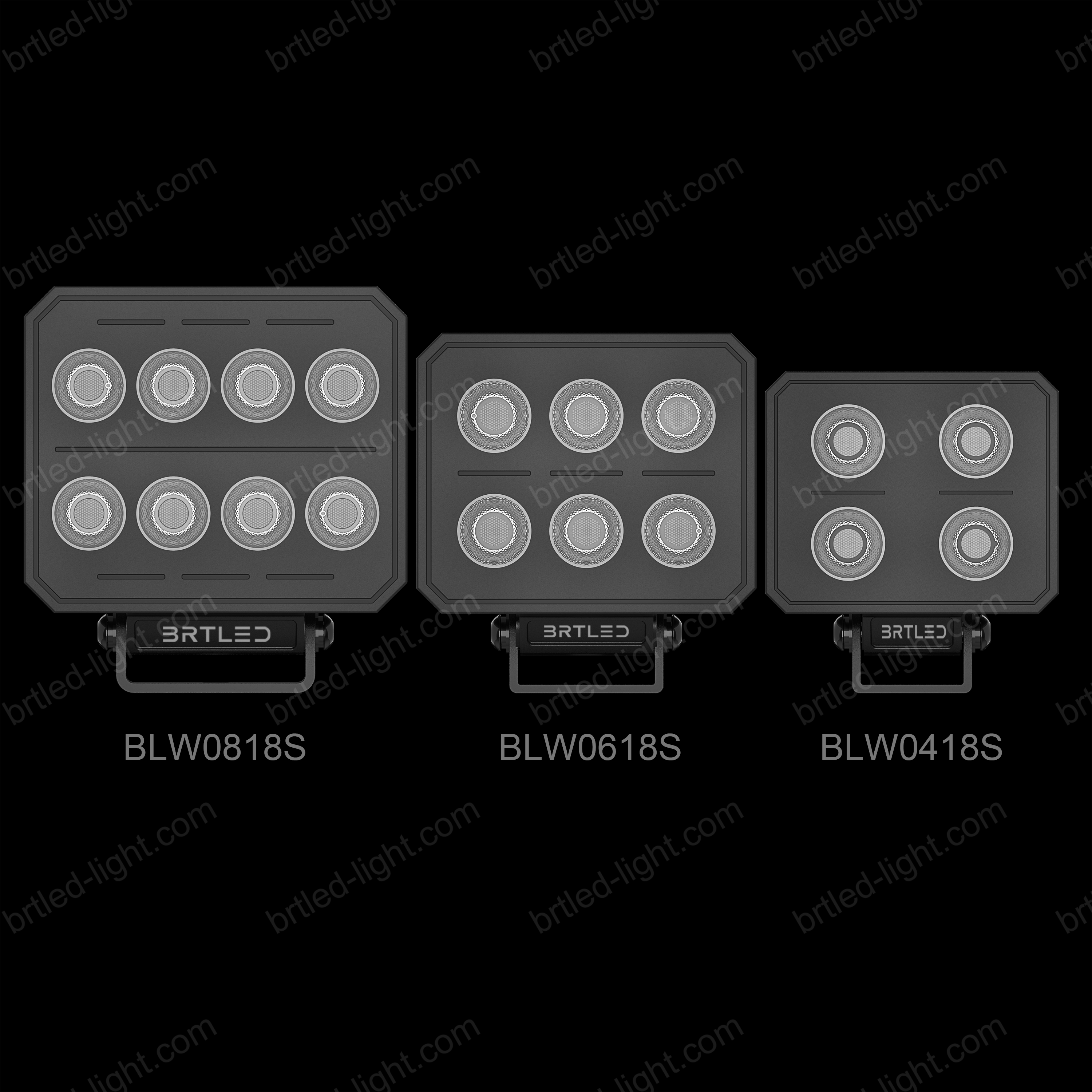

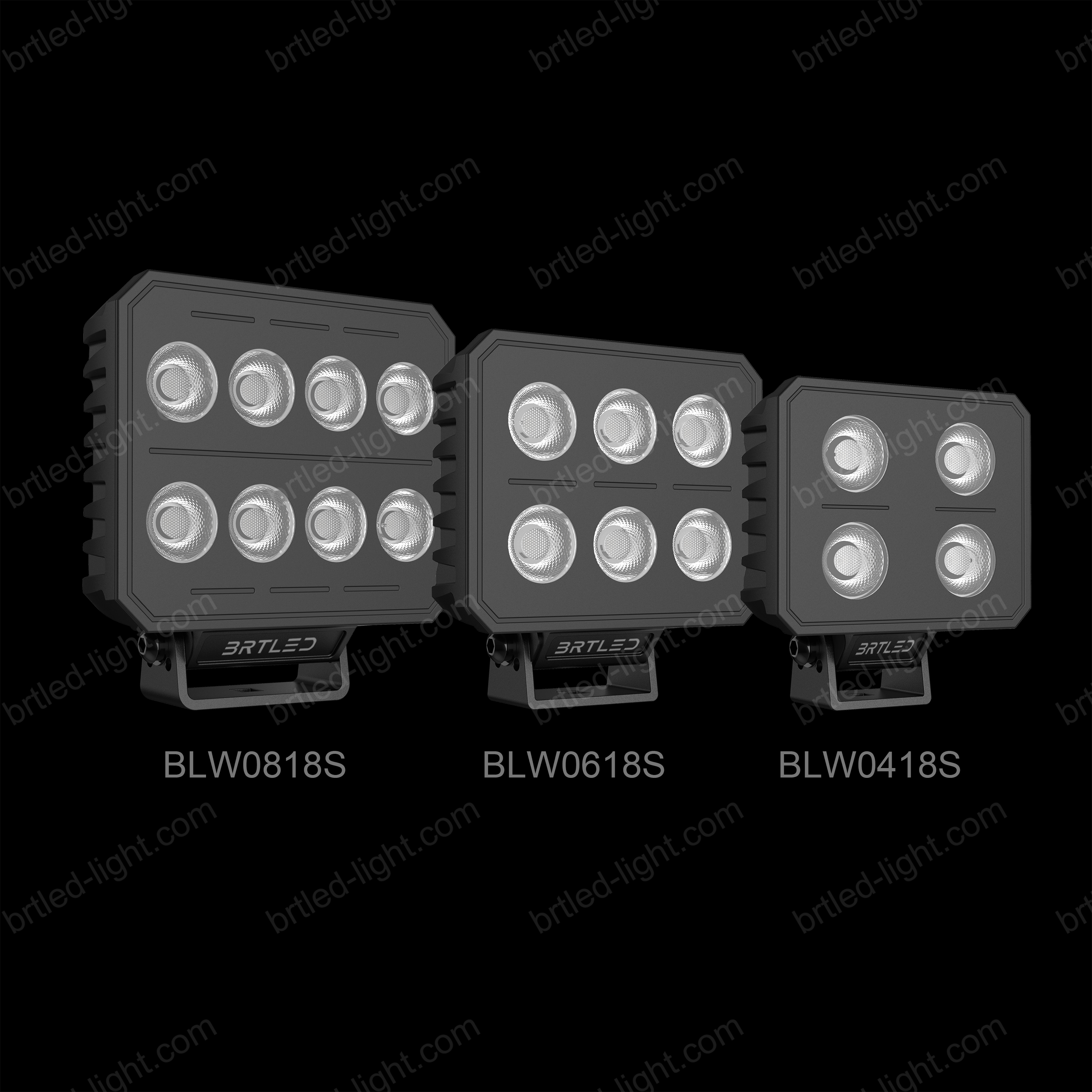

BLW0418S BLW0618S BLW0818S-DC

·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C

Reservation Now

Prev: BLW0606R-WL

Next: BLW0410R3 BLW0610R3 BLW0910R3

Detail

Part NO.	LEDs Power	Dimensions mm	Color Temperature	Beam pattern	Degrees	AMP Draw (12V/24V)	Raw Luminous Flux (lm)	LUX@1M

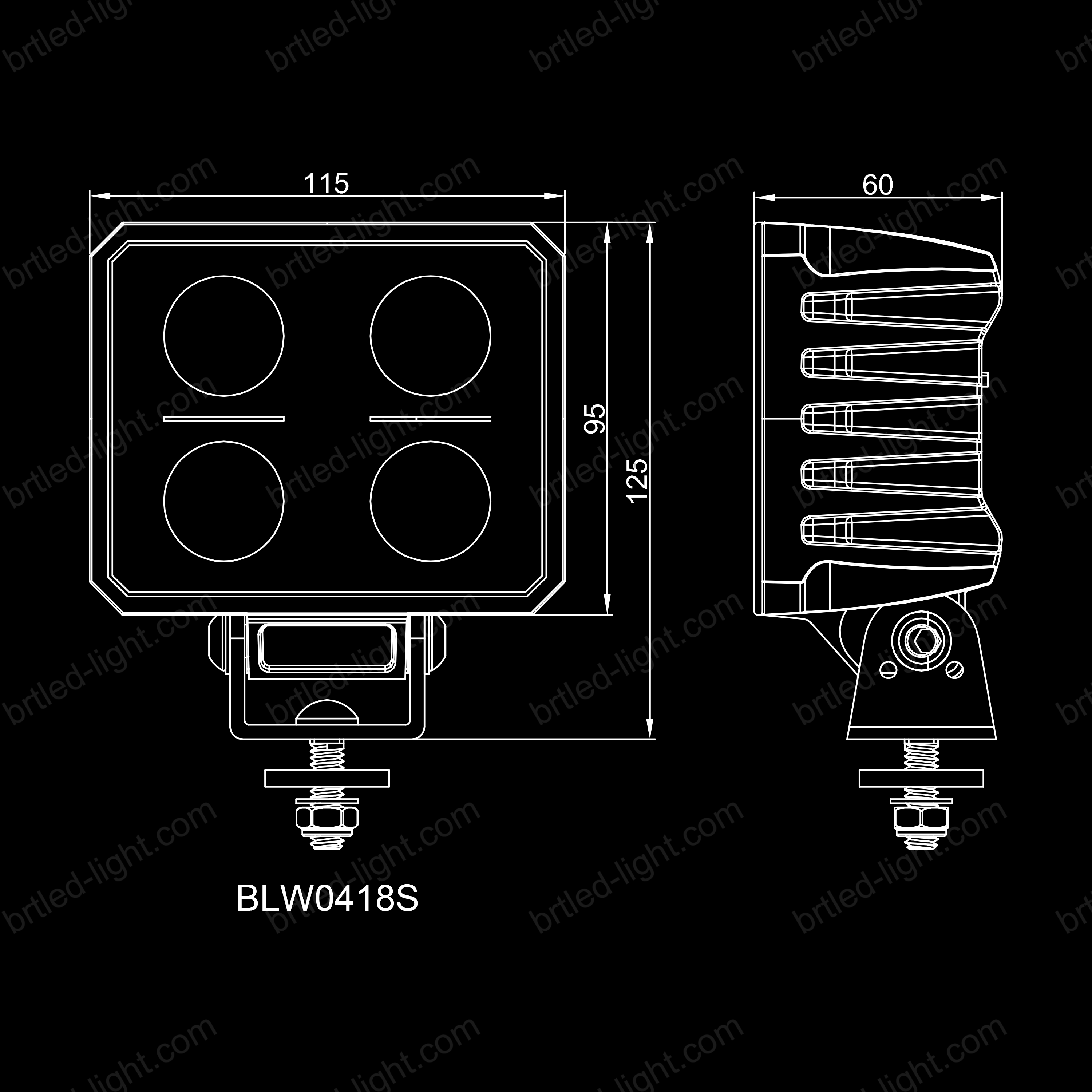

BLW0418S-DC	4x10W	1159560mm	3000K/4500K/6000K	Flood	70°	3000K: 3.3A/1.7A 4500K: 5.4A/2.7A 6000K: 3.2A/1.6A	3000K: 3900 LM 4500K: 6200 LM 6000K: 4200 LM	3000K: 57m 4500K: 77m 6000K: 63m

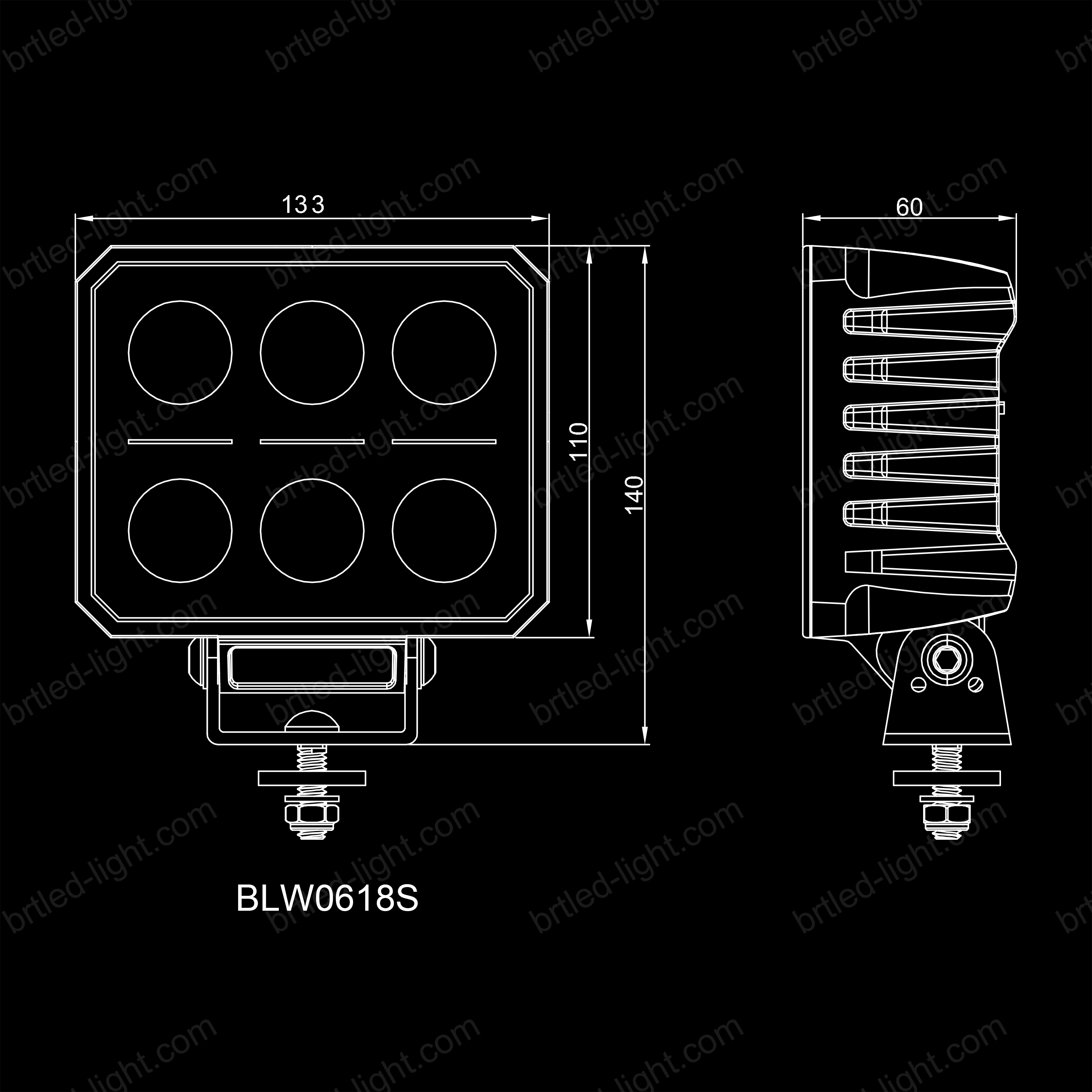

BLW0618S-DC	6x10W	13311060mm	3000K/4500K/6000K	Flood	80°	3000K: 4.7A/2.4A 4500K: 7.5A/3.8A 6000K: 4.6A/2.7A	3000K: 5800LM 4500K: 9800LM 6000K: 6200LM	3000K: 68m 4500K: 86m 6000K: 75m

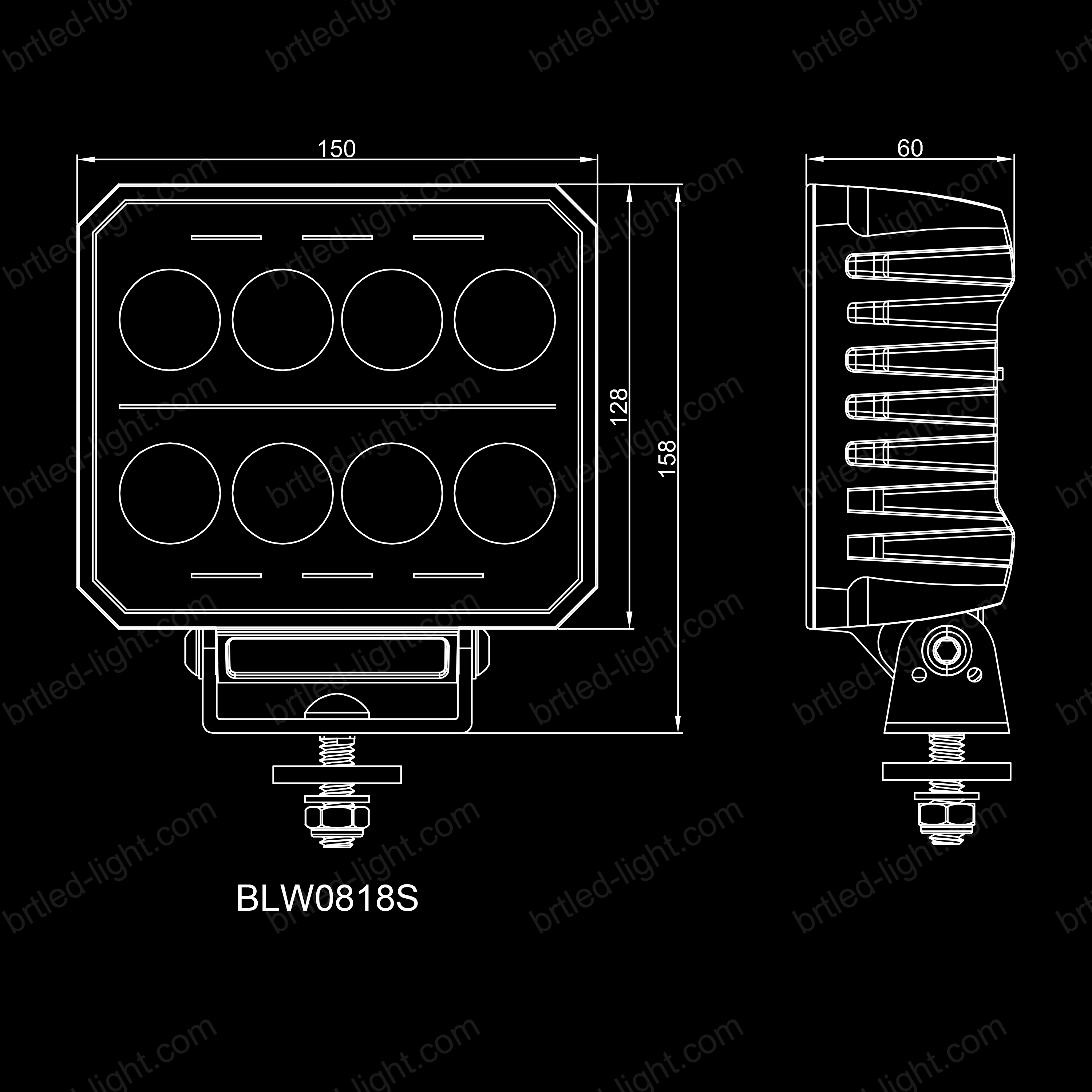

BLW0818S-DC	8x10W	15012860mm	3000K/4500K/6000K	Flood	80°	3000K: 6.7A/3.2A 4500K: 13A/6.2A 6000K: 6.7A/3.2A	3000K: 7500LM 4500K: 13500LM 6000K: 8000LM	3000K: 101m 4500K: 140m 6000K: 105m
