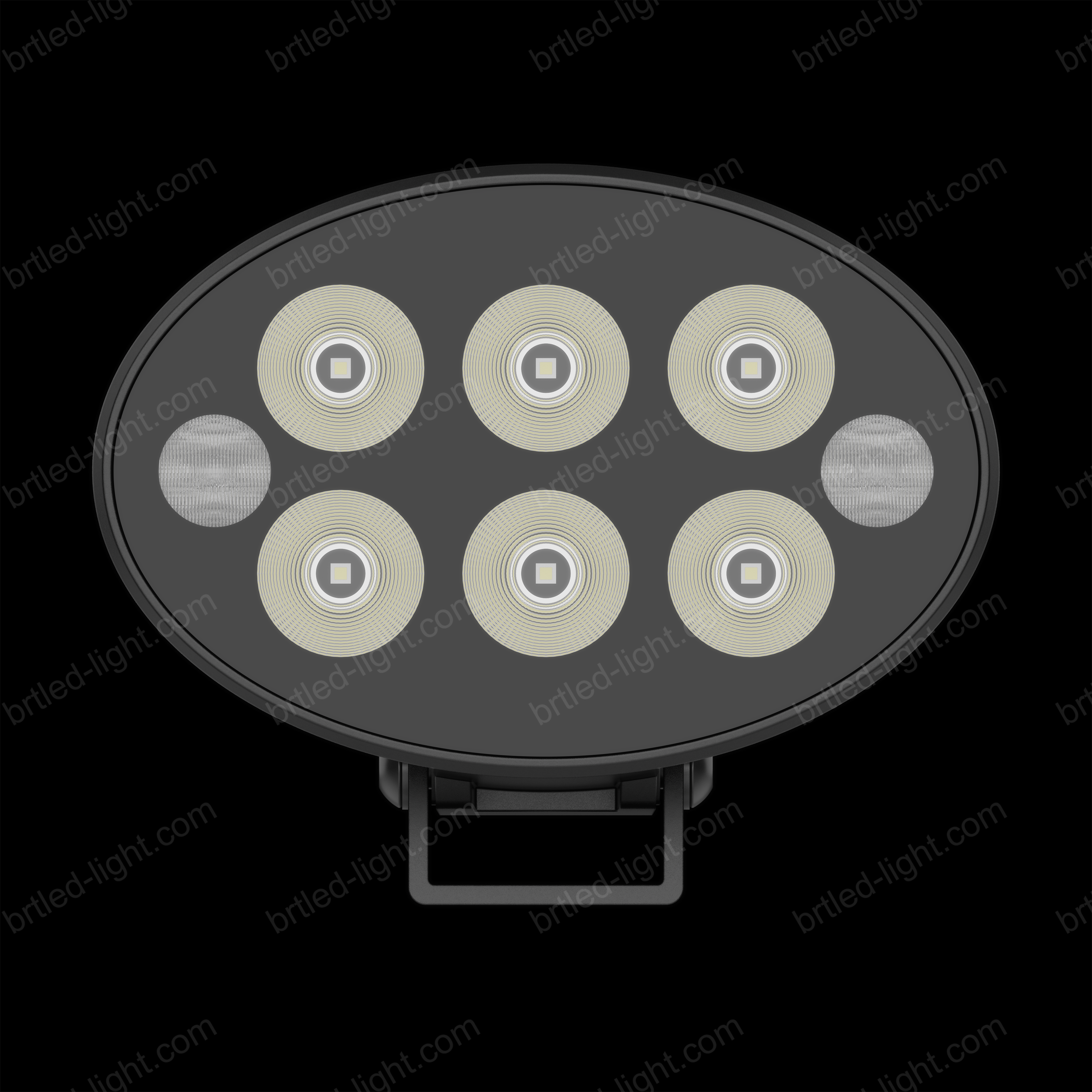

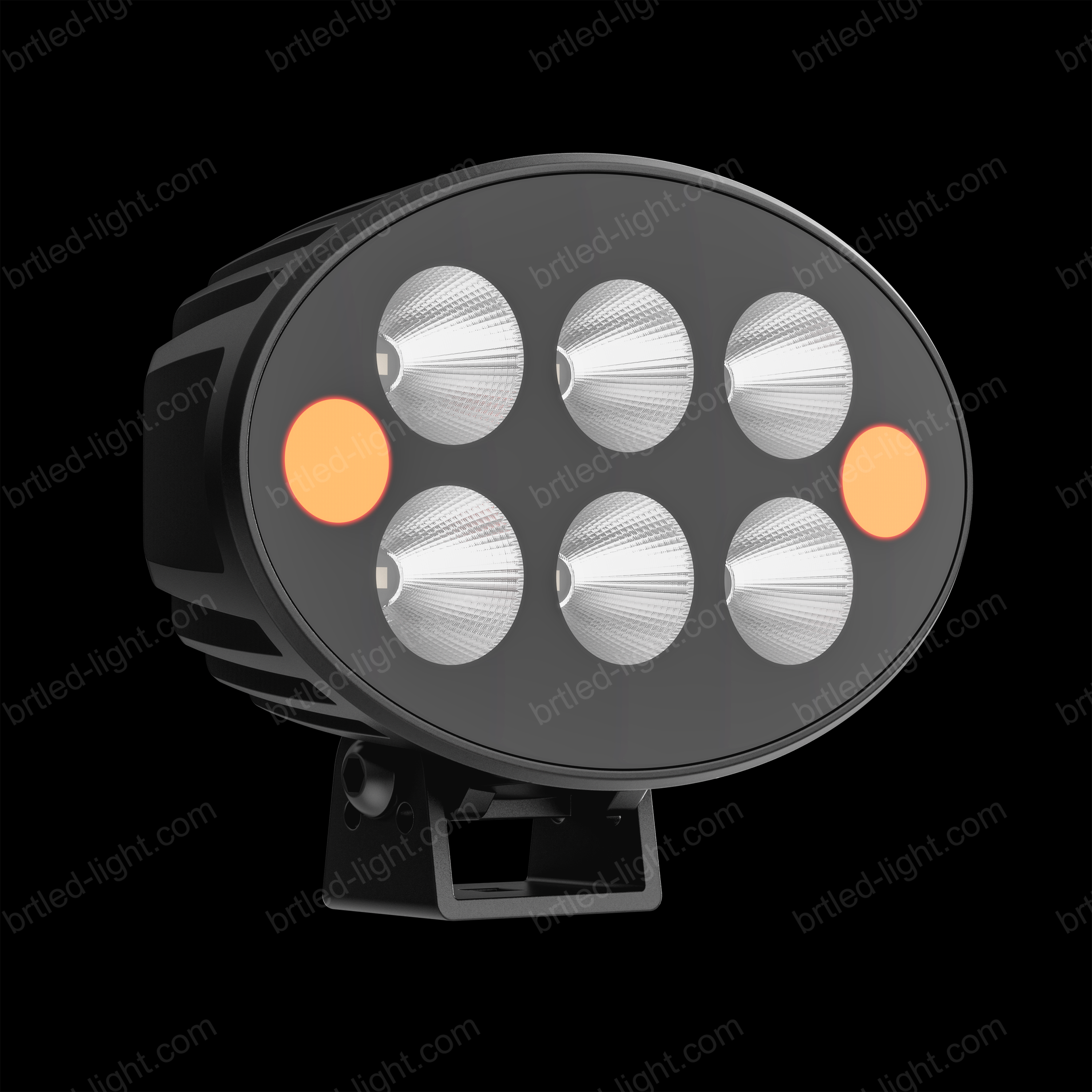

BLW0606R-WL
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/R65
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/R65
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

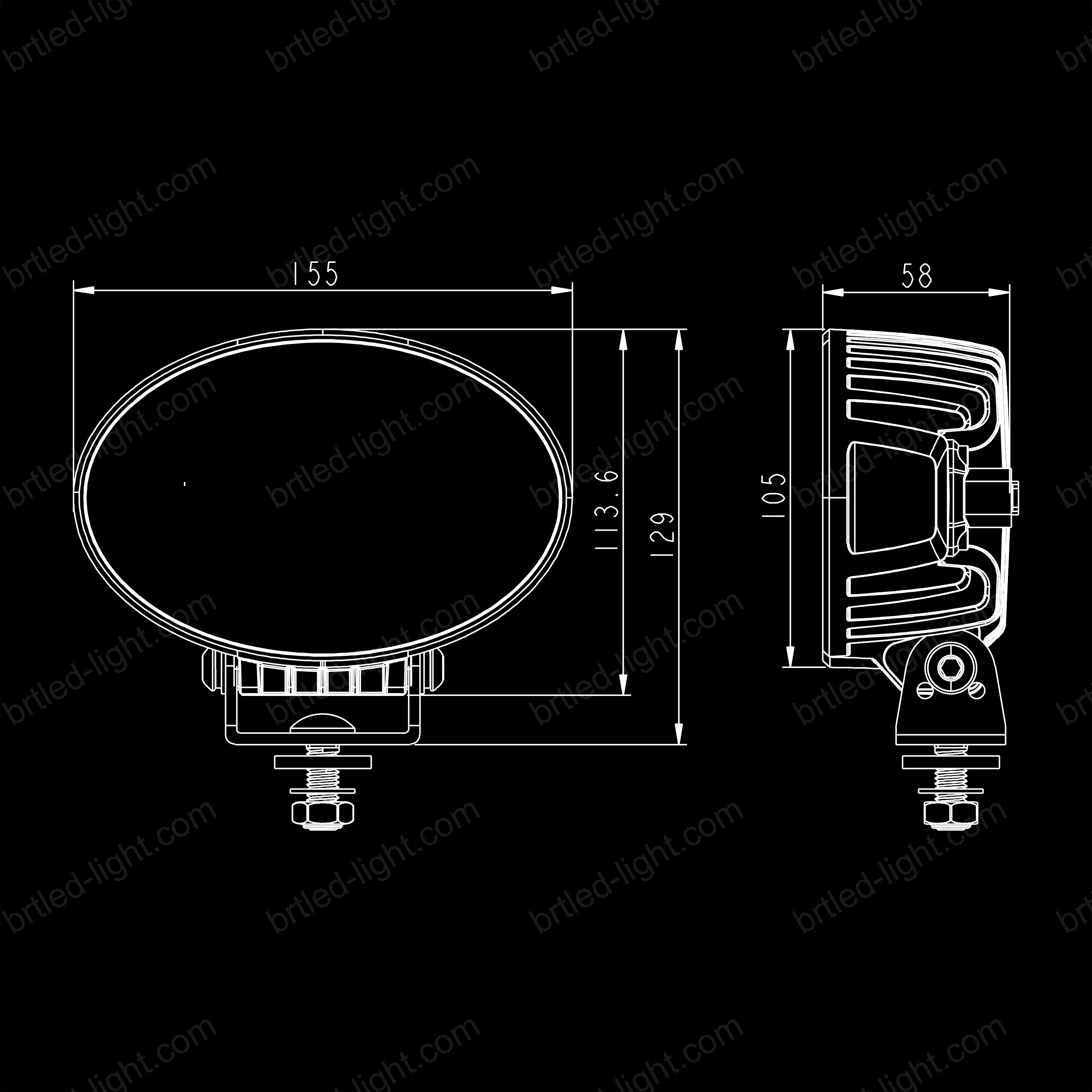

| Part NO. | LEDs Power | Dimensions mm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux (lm) | LUX@1M |
| BLW0606R-WL | 6X6W | 155*105*58mm | Flood Spot | Flood Light: 60° Spot Light: 8° | Main Light: 3.2A / 1.6A Warning Light: 0.6A / 0.3A | 2500LM | Flood Light: 85M Spot Light: 369M |
