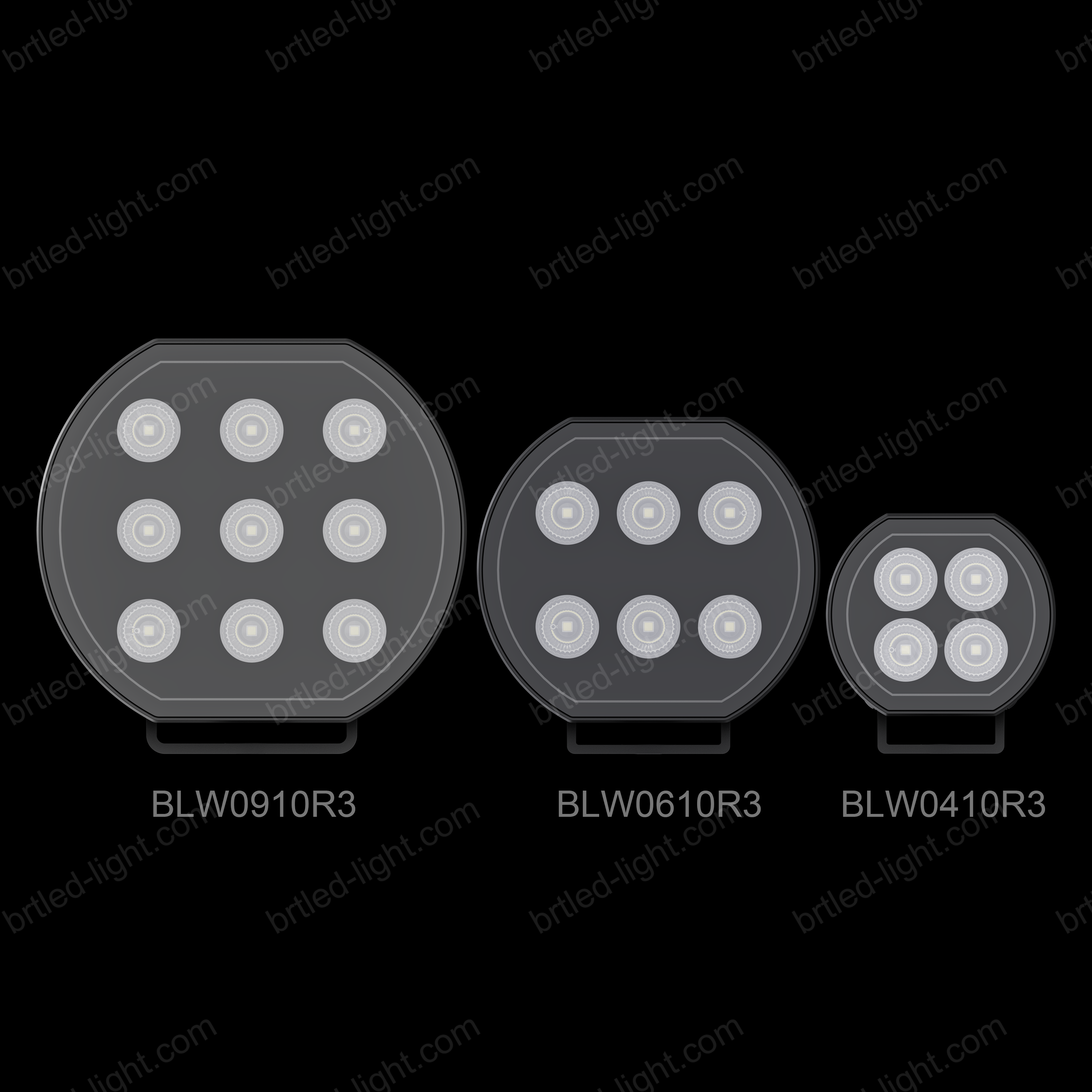

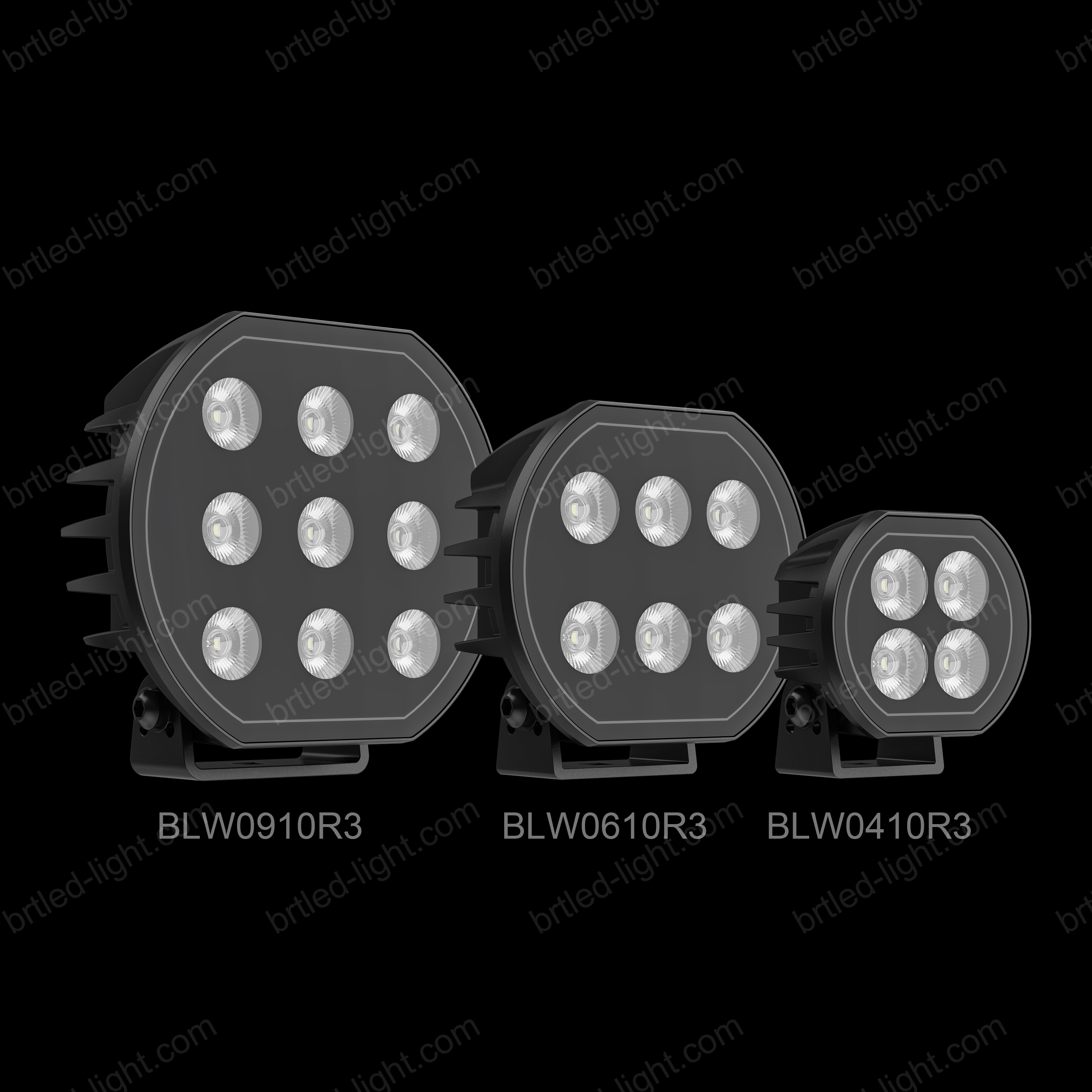

BLW0410R3 BLW0610R3 BLW0910R3
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs Power | Dimensions mm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux(lm) | LUX@1M |

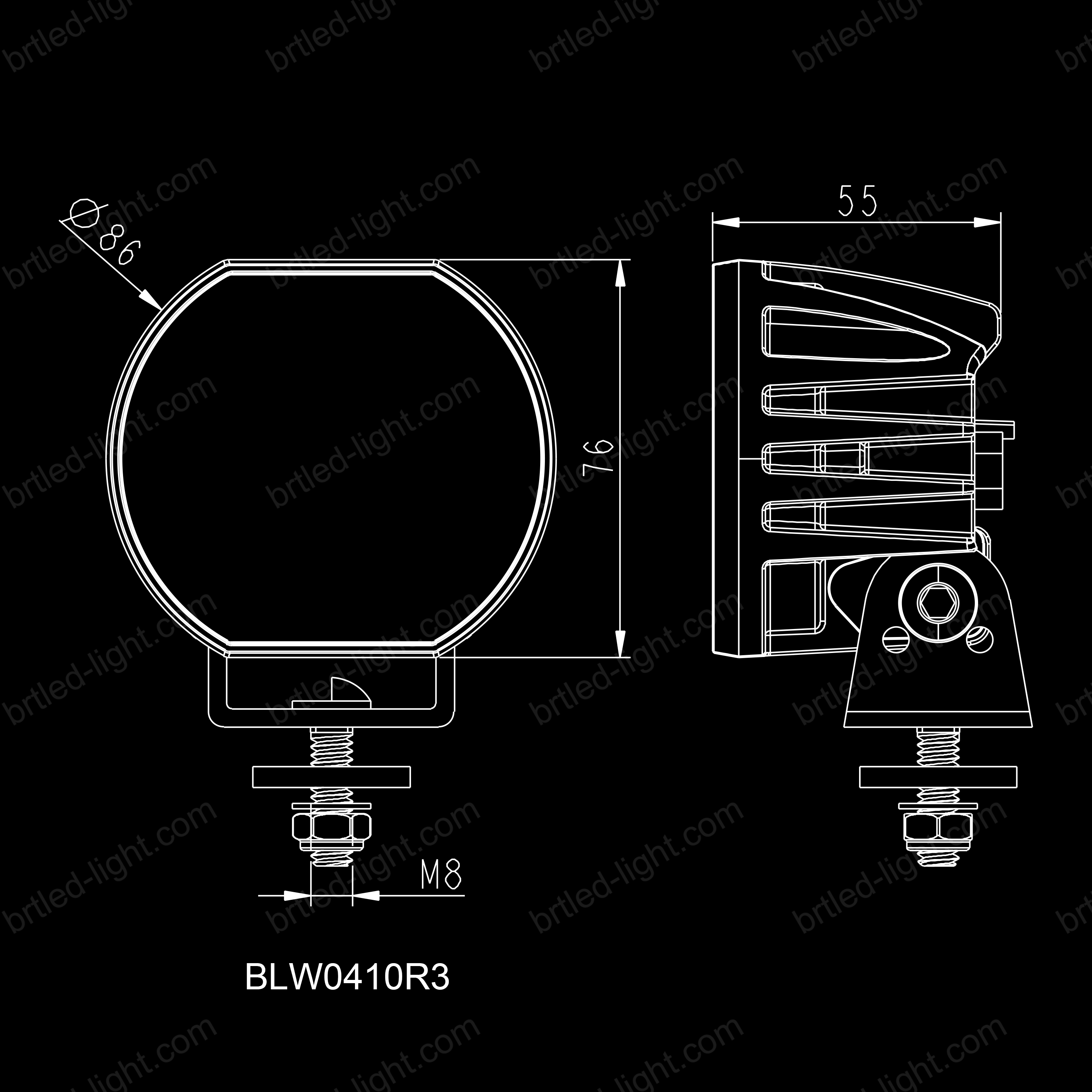

| BLW0410R3 | 4X10W | 86*76*55mm | Flood | 60° | 3.2A/1.5A | 3800LM | 68M |

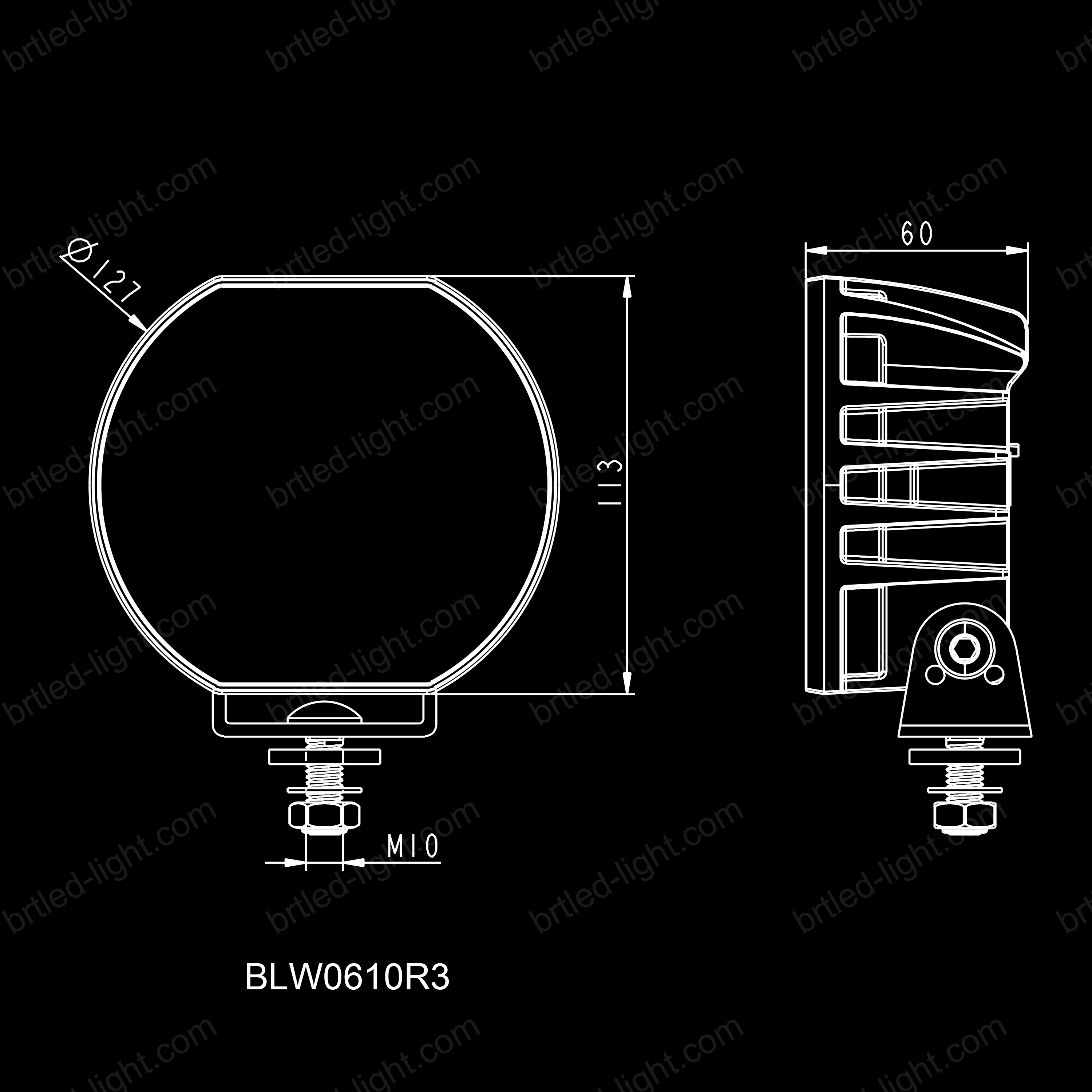

| BLW0610R3 | 6X10W | 127*113*60mm | Flood | 60° | 4.9A/2.3A | 5700LM | 86M |

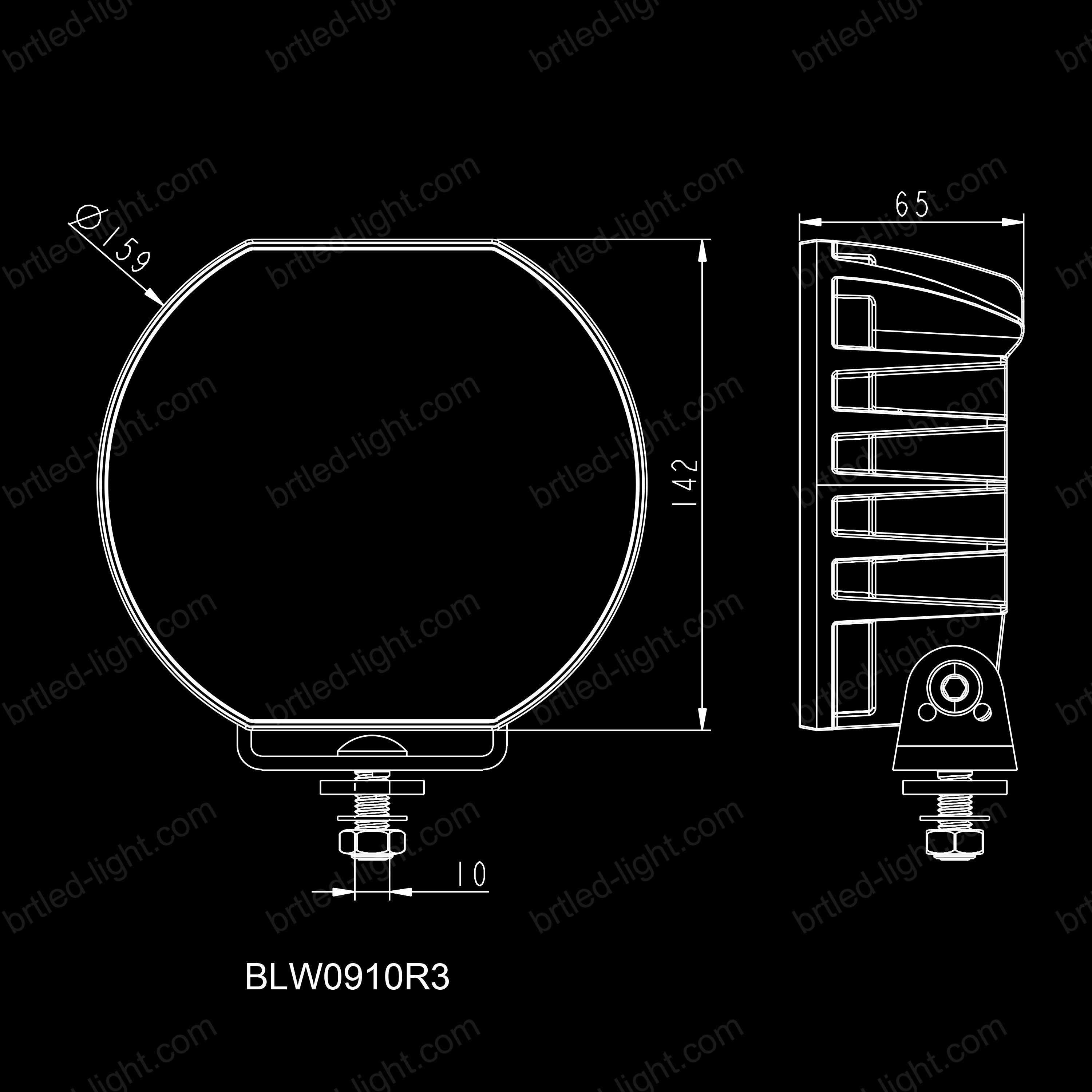

| BLW0910R3 | 9X10W | 159*142*65mm | Flood | 60° | 7.2A/3.4A | 8600LM | 102M |
