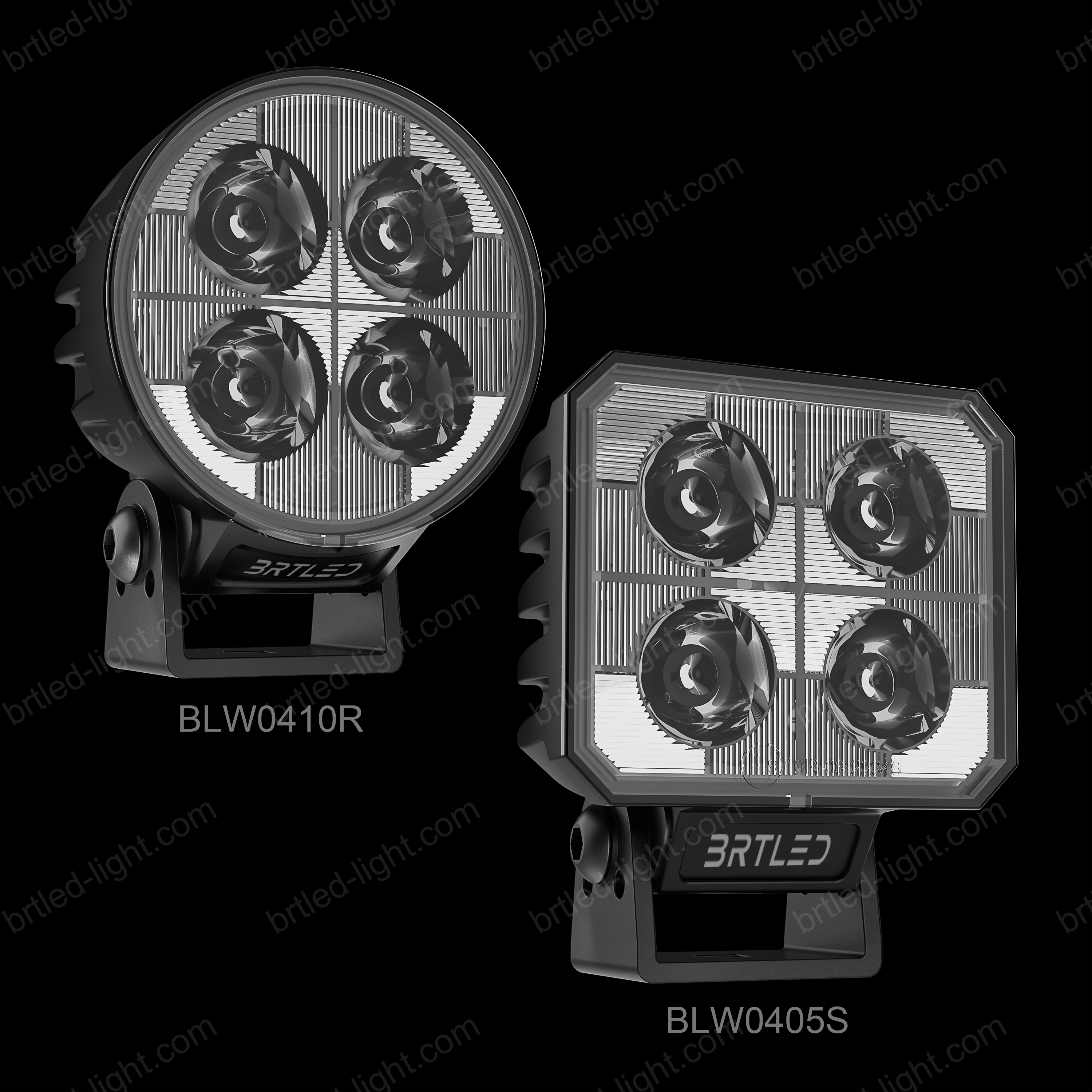

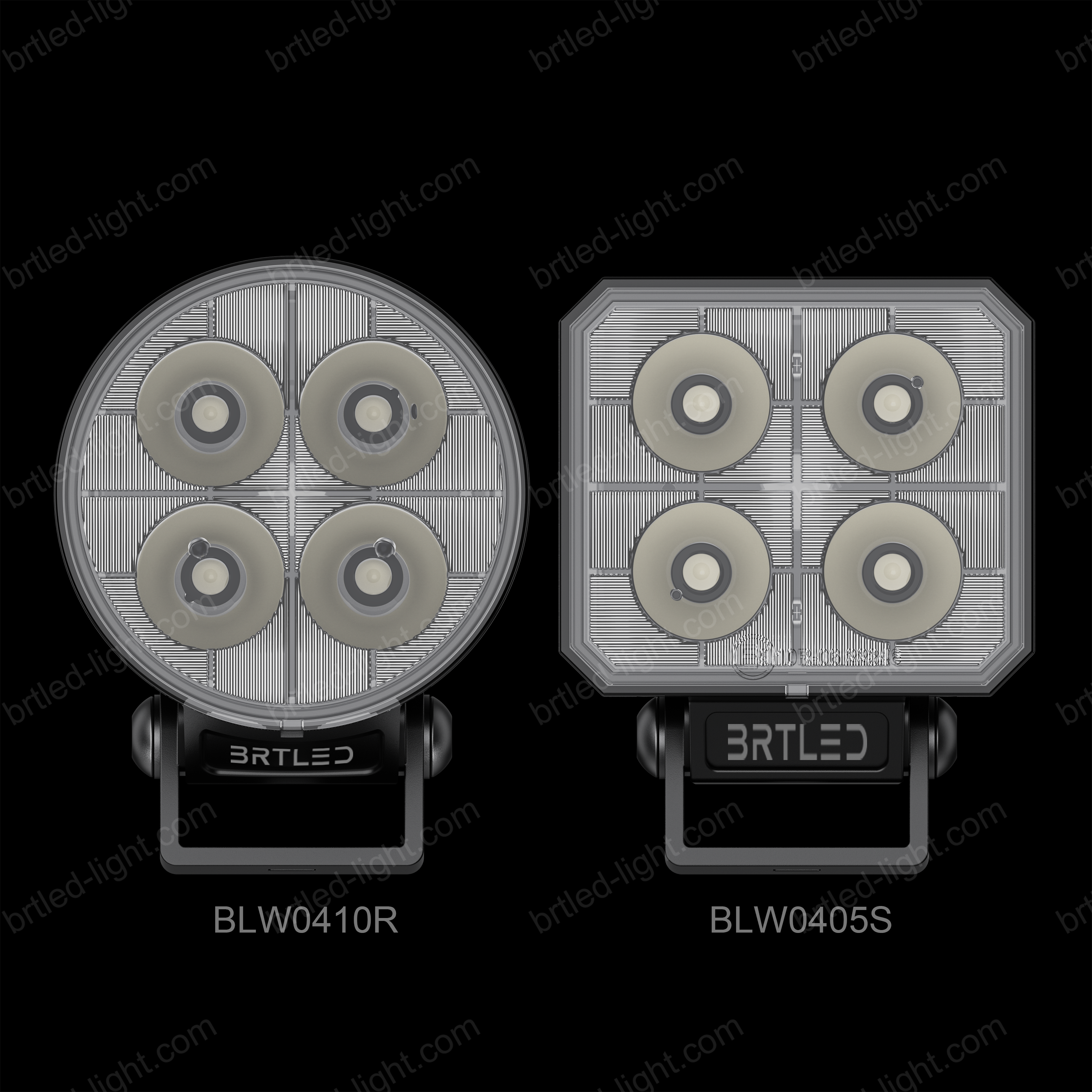

BLW0405S BLW0410R
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs Power | Dimensions mm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux (lm) | LUX@1M |

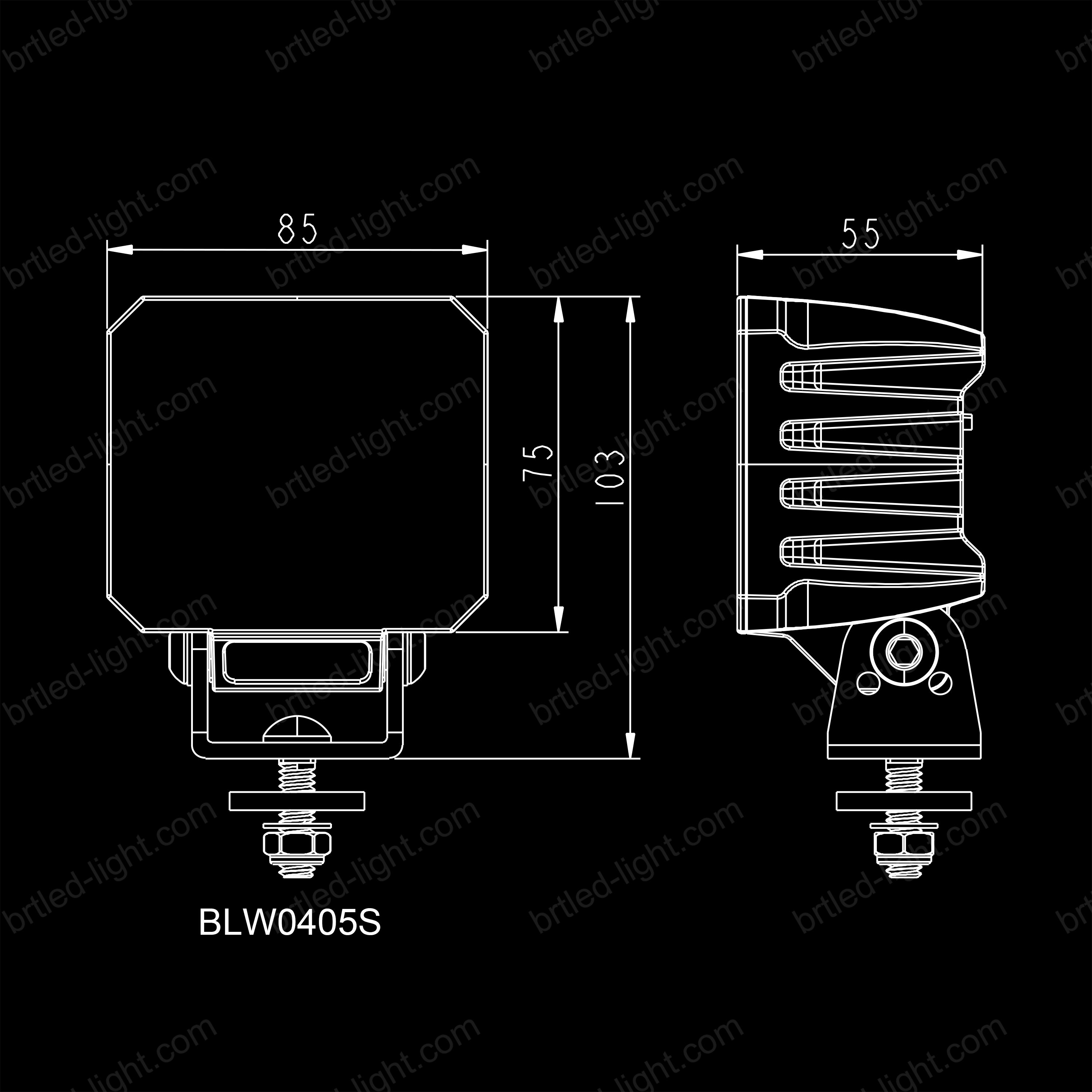

| BLW0405S | 4X10W | 85*103*55mm | Flood Spot | Flood Light: 60° Spot Light: 10° | 2.7A/1.4A | 3800LM | Flood Light: 67M Spot Light: 273M |

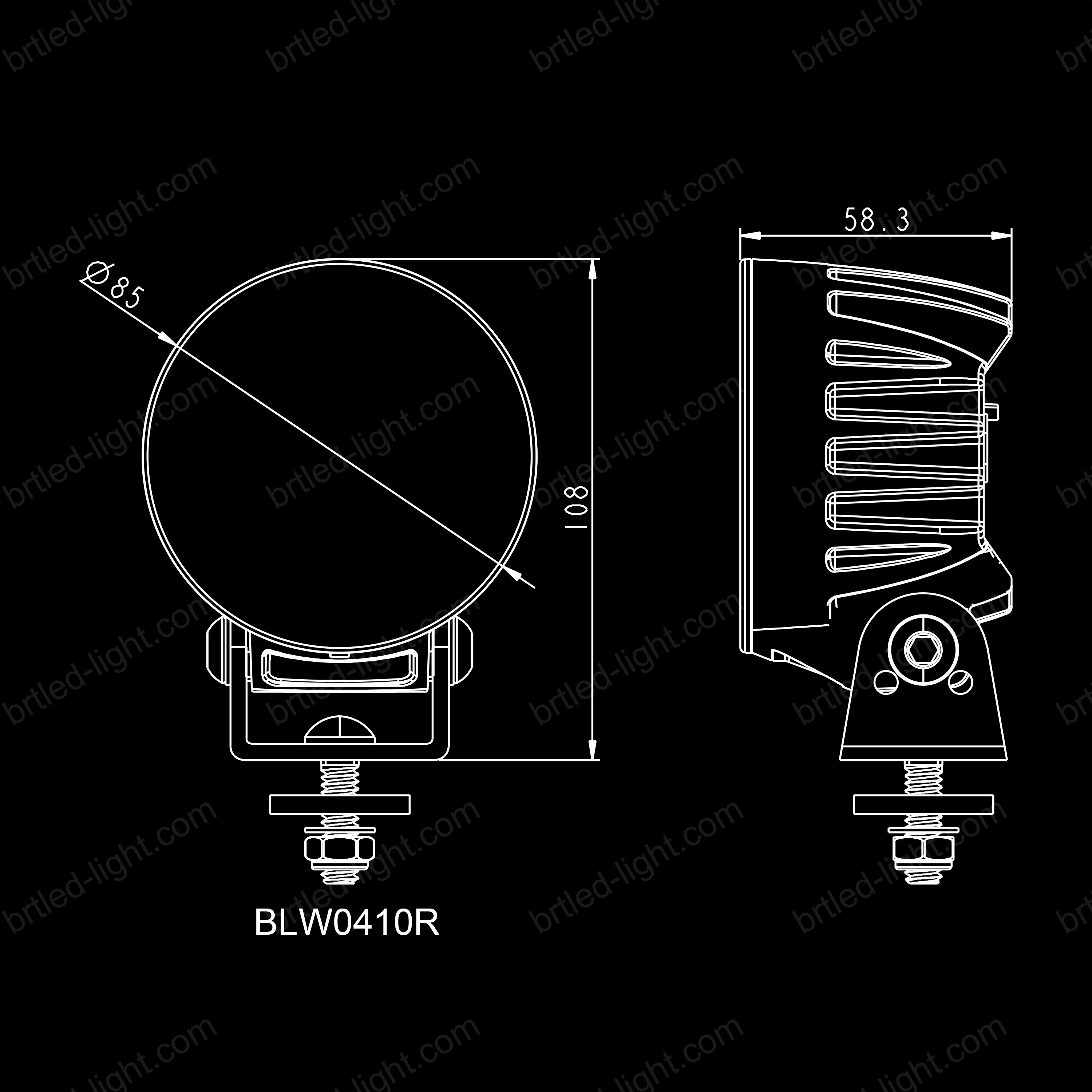

| BLW0410R | 4X10W | 85*108*58.3mm | Flood | Flood Light: 60° | 2.7A/1.4A | 3800LM | Flood Light: 74M |
