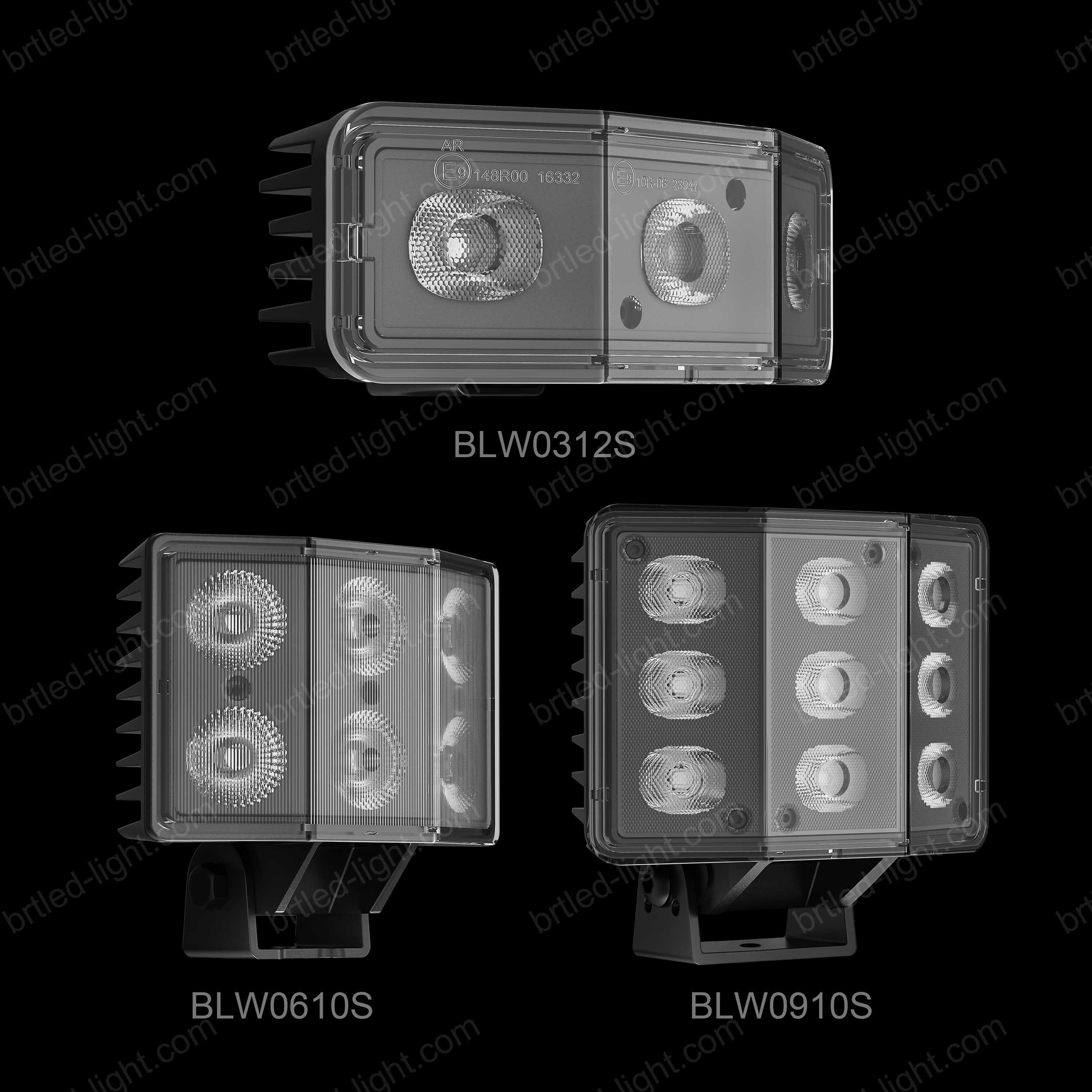

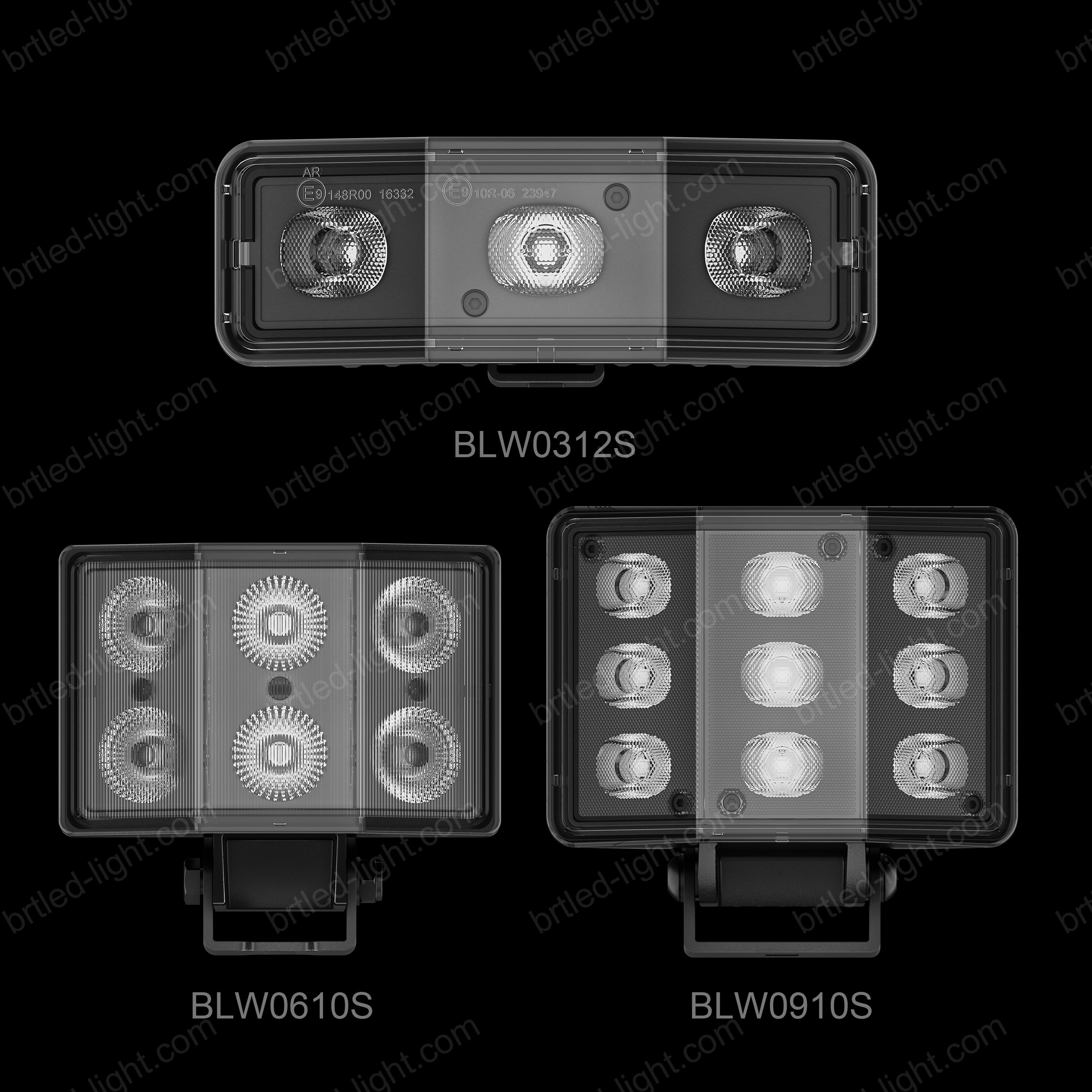

BLW0312S BLW0610S BLW0910S
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/CISPR 25 CLASS 3
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/CISPR 25 CLASS 3
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs Power | Dimensionsmm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

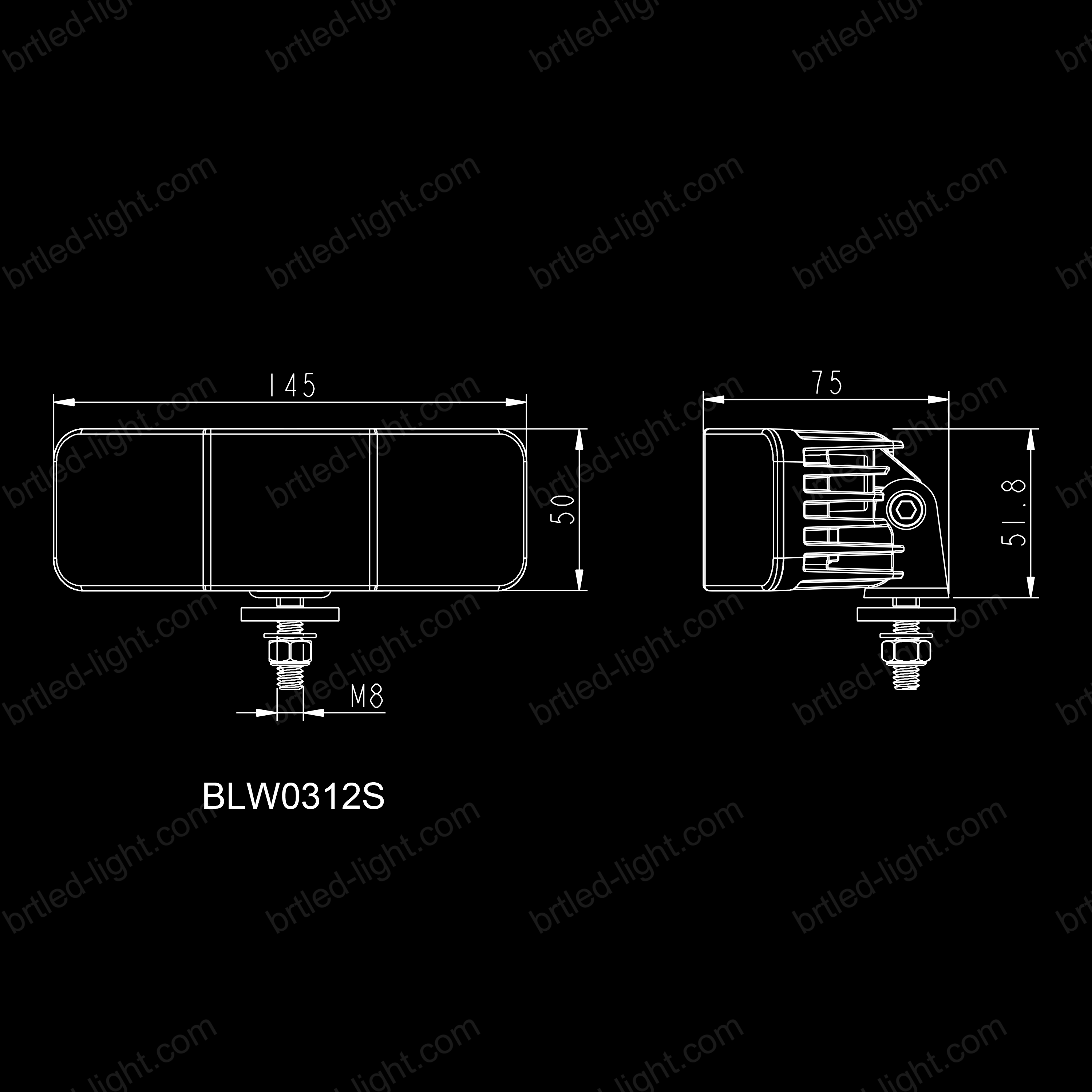

| BLW0312S | 3x10W | 145*50*75mm | Flood | Flood Light: 120°X60° | 2.3A/1.1A | 3200LM | Flood Light: 54M |

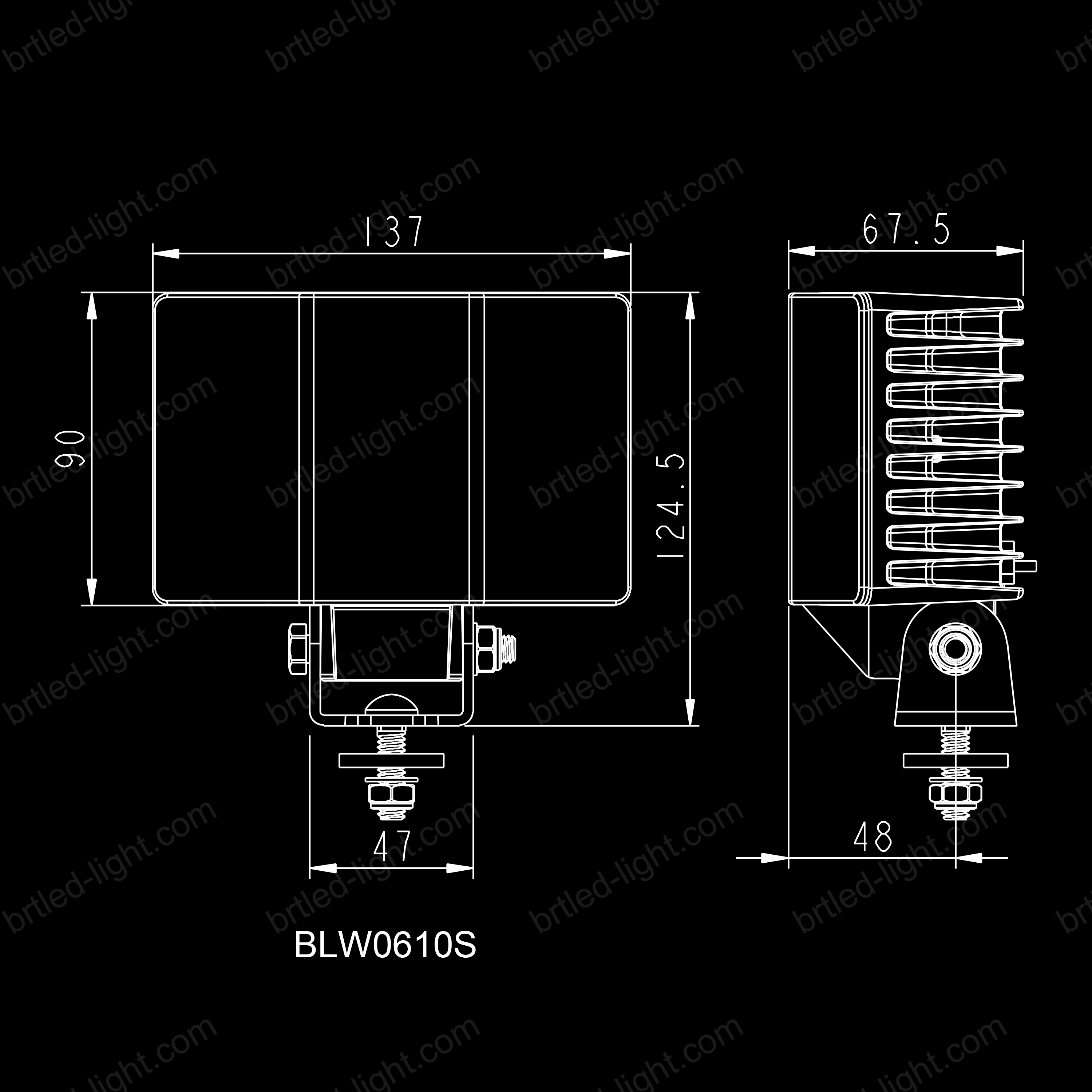

| BLW0610S | 6x10W | 137*90*67.5mm | Flood | Flood Light: 120°X35° | 4.2A/2.1A | 5600LM | Flood Light: 88M |

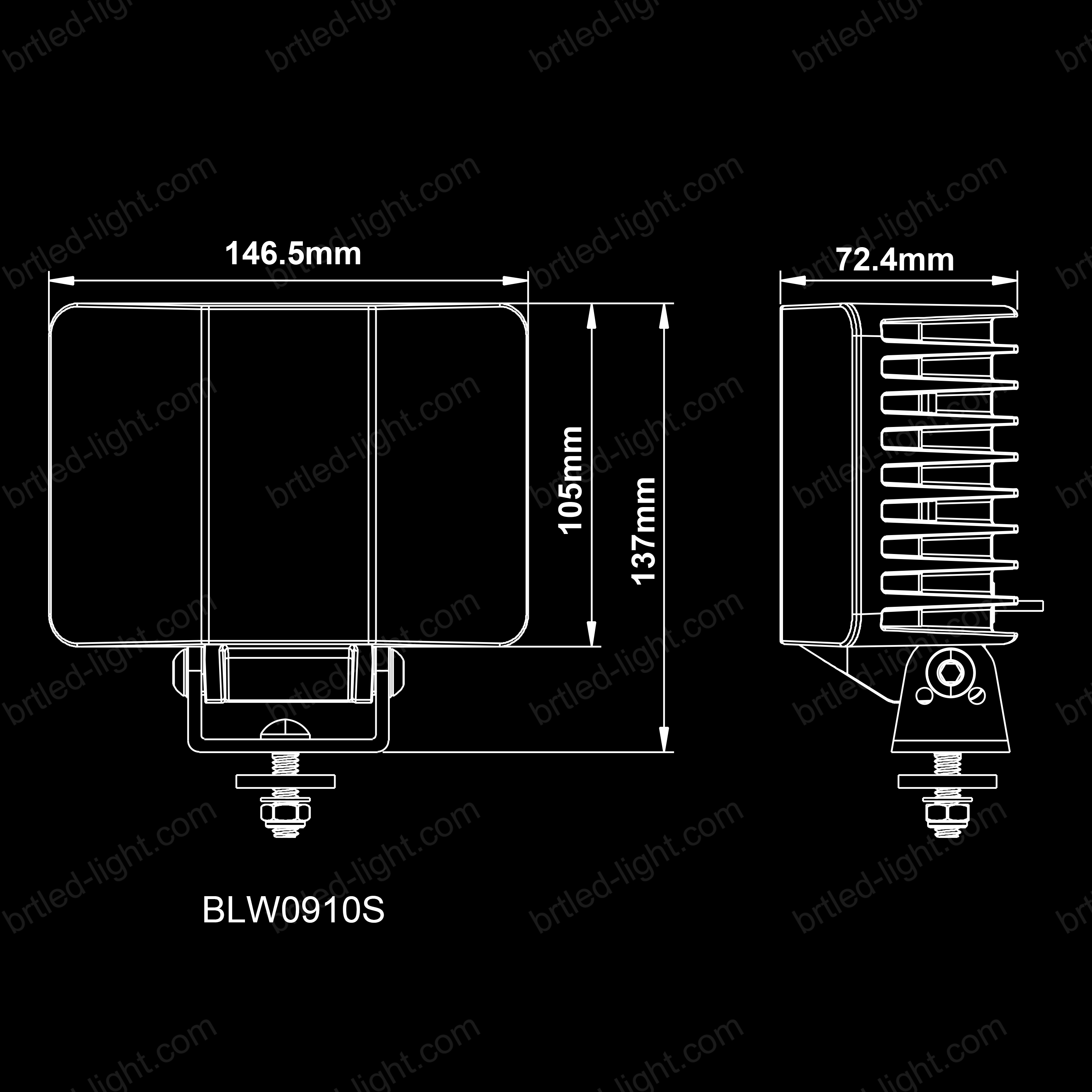

| BLW0910S | 9x10W | 146.5*105*72.4mm | Flood Combo | Flood Light: 120°X60° Combo Light: 120° | 6.2A/3A | 9500LM | Flood Light: 93M Combo Light: 229M |
