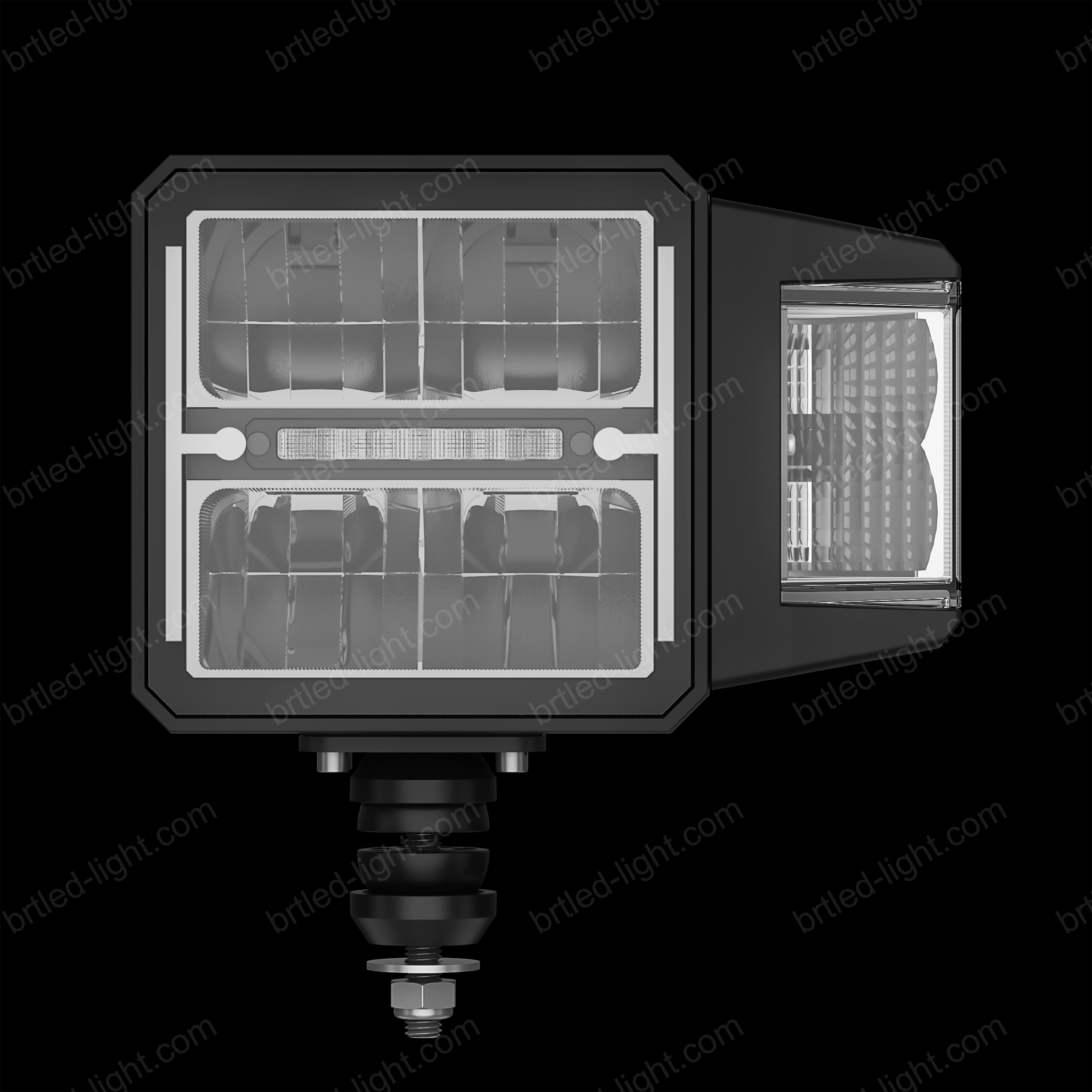

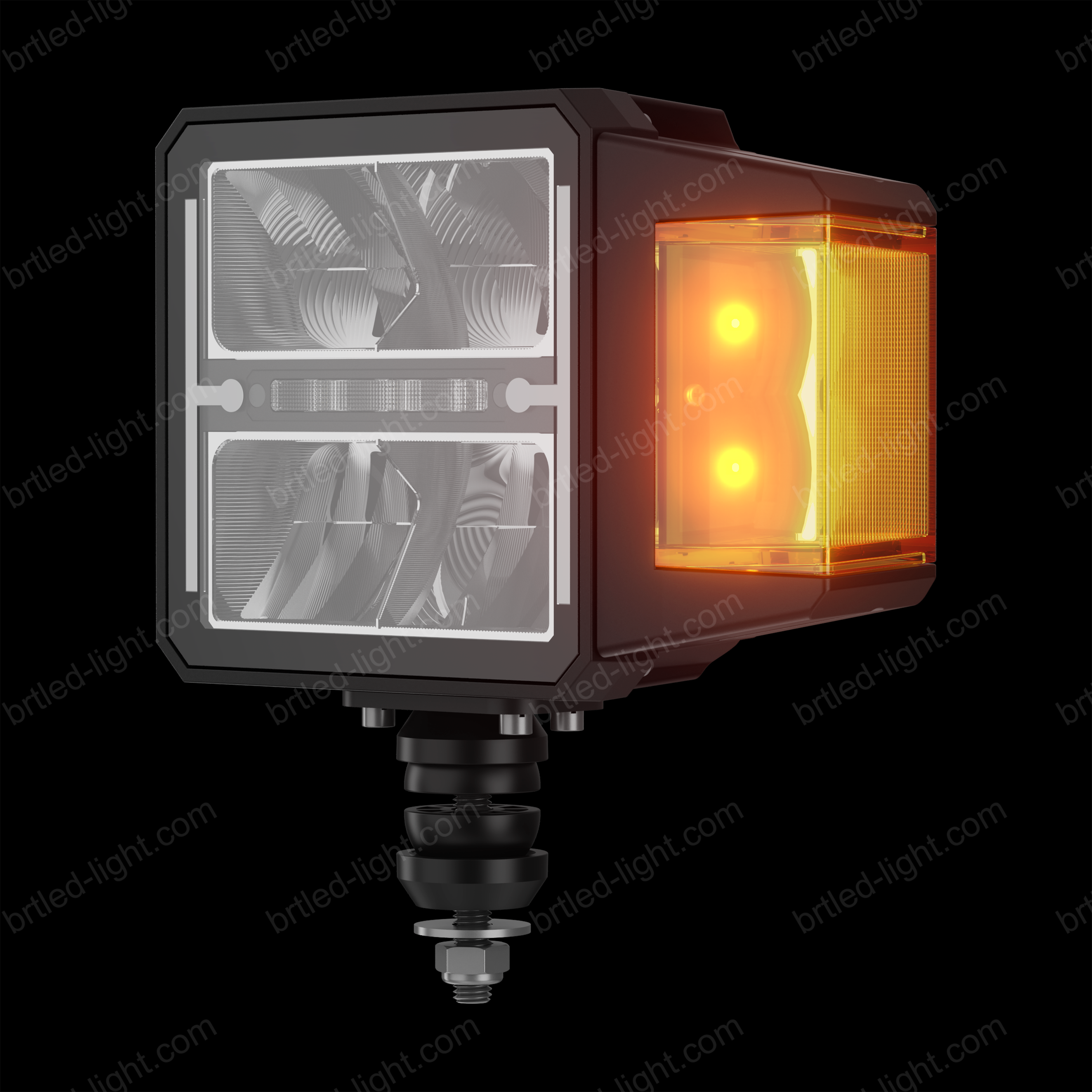

BLHL0415S2
· Voltage: DC10-30V
· High beam/Low Beam/Indicator/Position light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· High beam/Low Beam/Indicator/Position light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (lm) | LUX@1M |

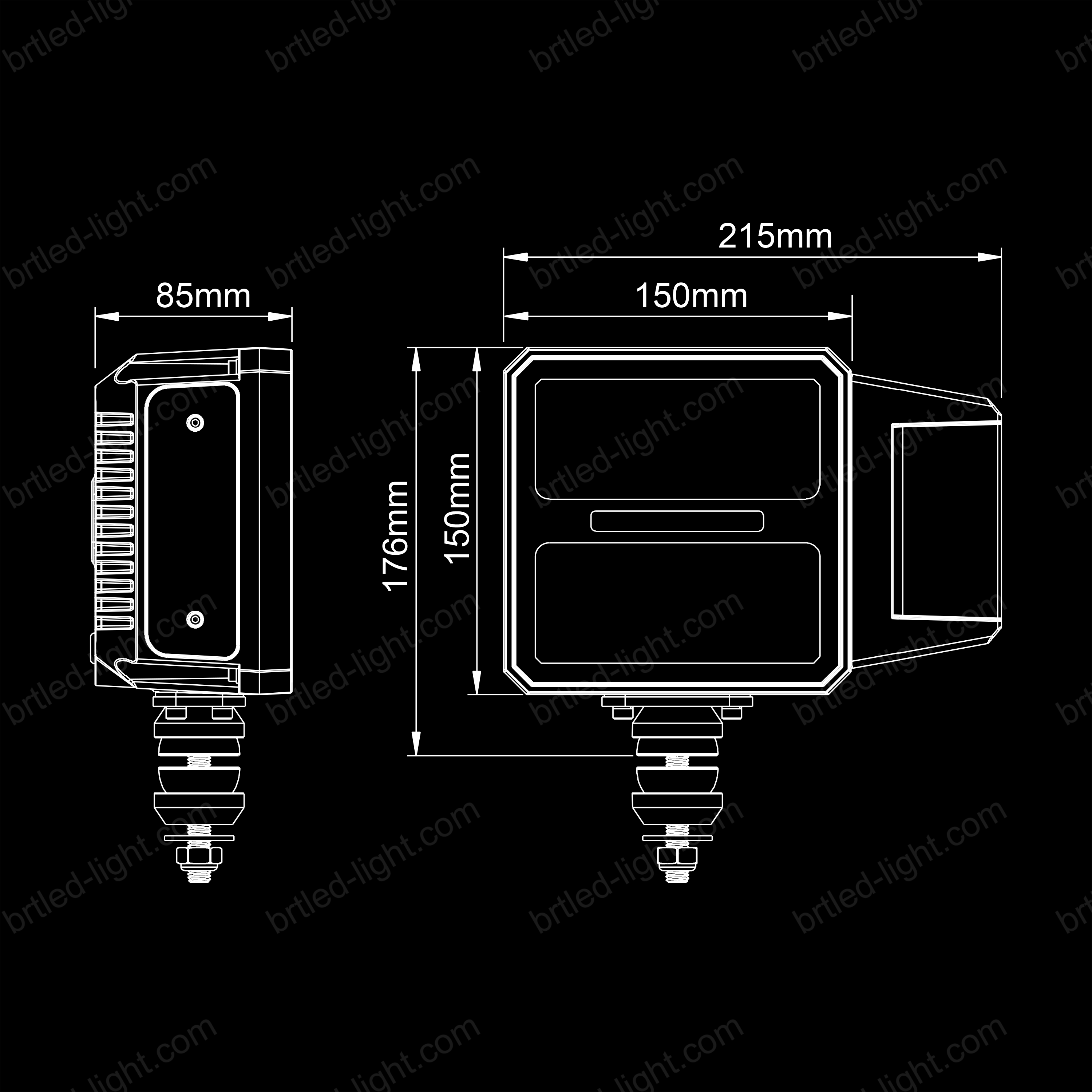

| High Beam: 4X12W Low Beam: 2X12W Indicator: 4X3W Position light: 3x1W | 215*150*85 | High Beam Low Beam | Approved (Ref. No.:17.5) | High Beam:3.8A/1.7A Low Beam: 1.7A/0.8A Indicator: 0.9A/0.5A Position Light: 0.1A/0.05A Heated Lens: 1.9A/0.9A | High Beam: 3600lm Low Beam: 1800lm Indicator: 220lm Position Light: 160lm | High Beam:280M Low Beam: 163M |
