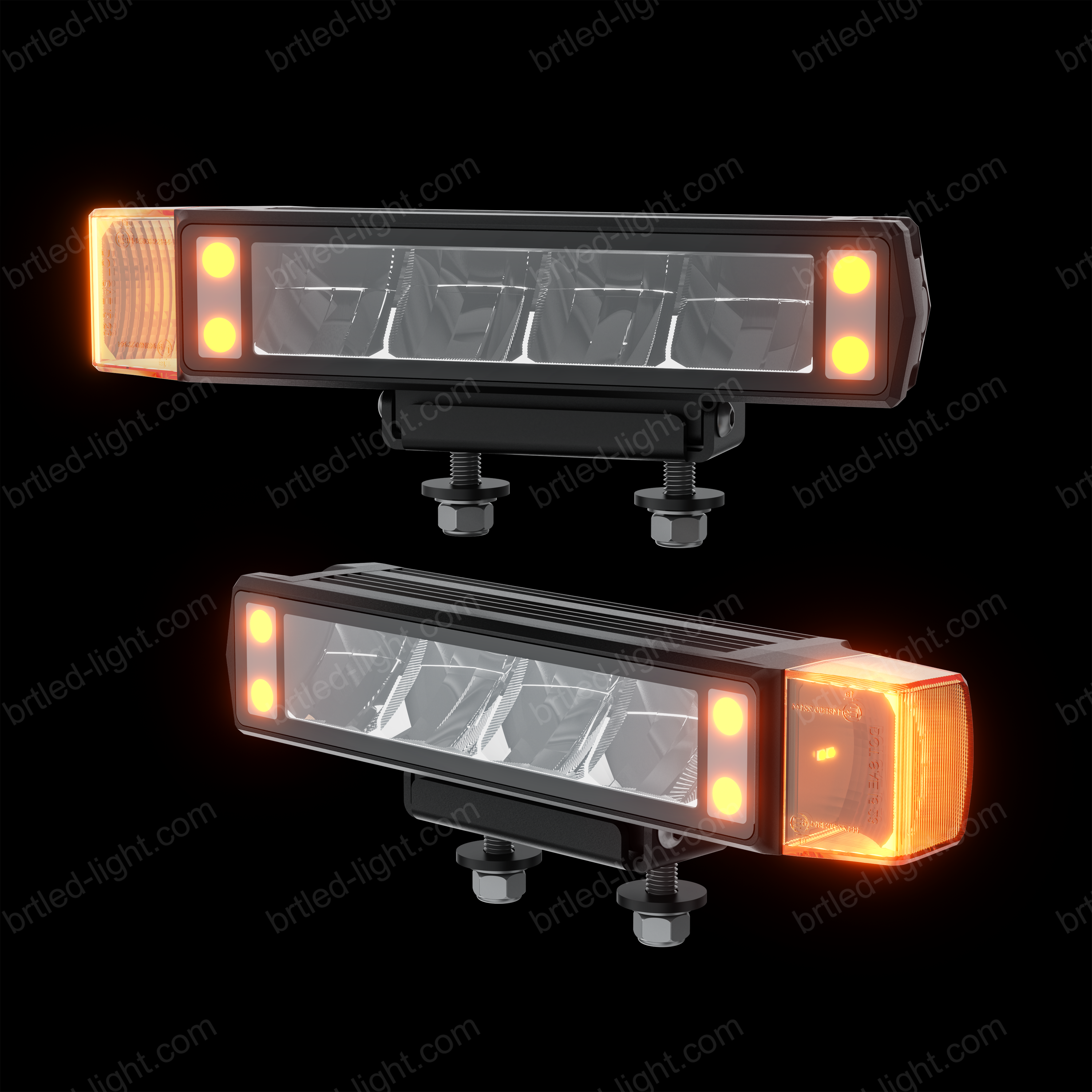

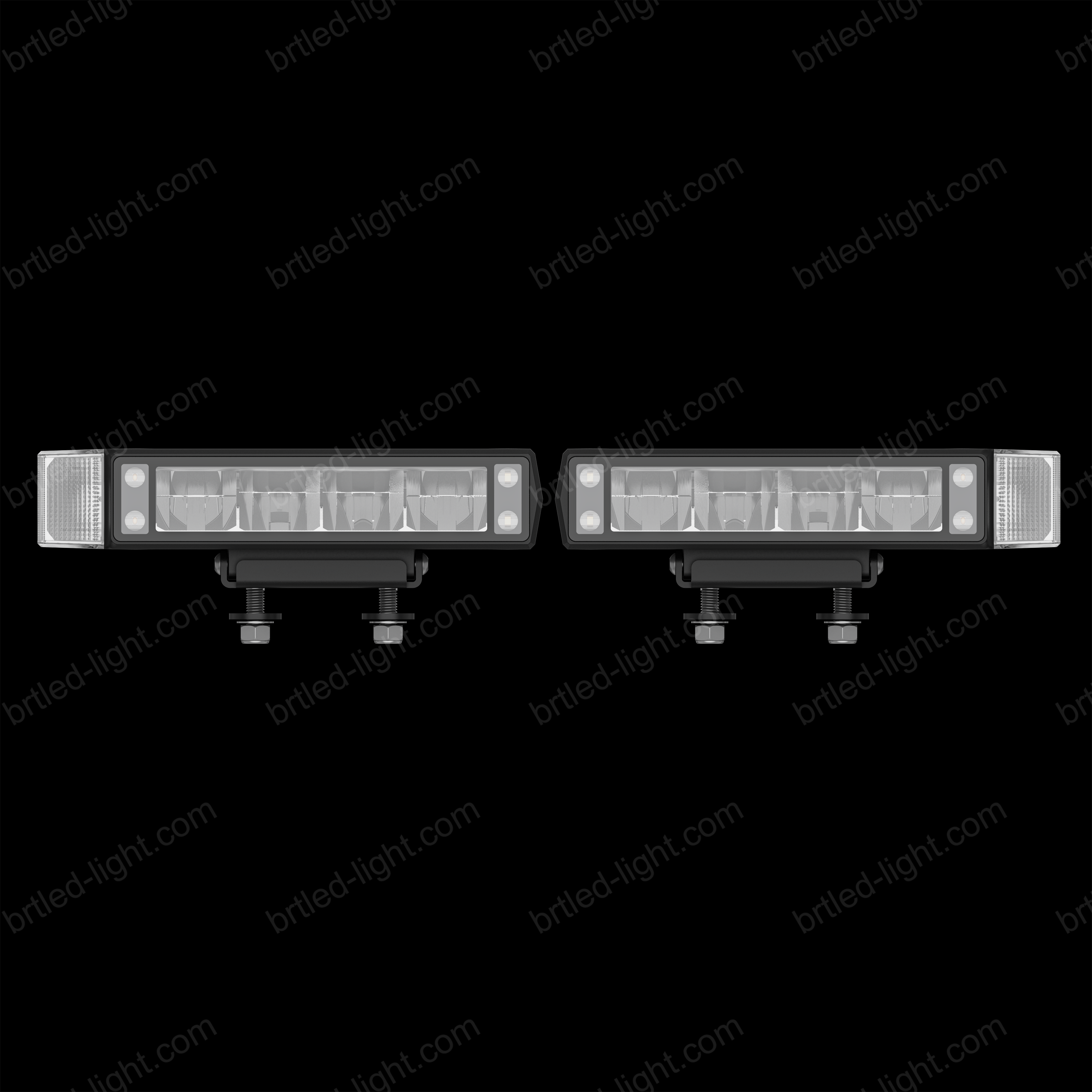

BLHL0412S2
· Voltage: DC6-30V
· High beam/Low Beam/Indicator/Position light/Warning Light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· High beam/Low Beam/Indicator/Position light/Warning Light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

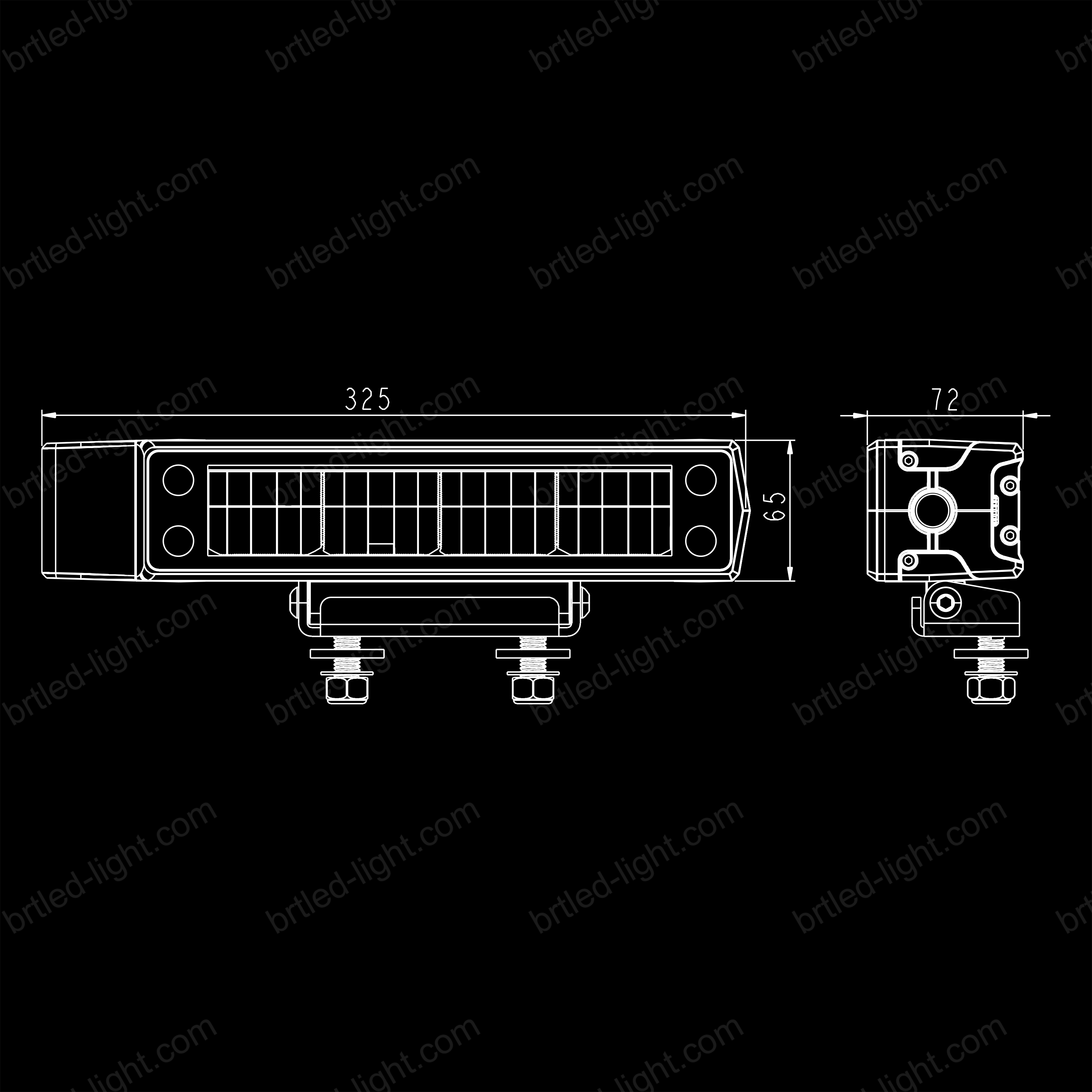

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (lm) | LUX@1M |
| BLHL0412S2 | High Beam: 4X12W Low Beam: 2X12W Indicator: 4X3W Position light: 4x3W Warning light: 4x3W | 325*65*72 | High Beam Low Beam | Approved (Ref. No.:17.5) | High Beam: 3.9A/1.9A Low Beam: 2.0A/1.0A Indicator: 0.7A/0.4A Position Light: 2.4A/1.2A Warning Light: 3.1A/1.5A | High Beam: 3600lm Low Beam: 1800lm Indicator: 220lm Position Light: 160lm | High Beam:307M Low Beam: 203M |
