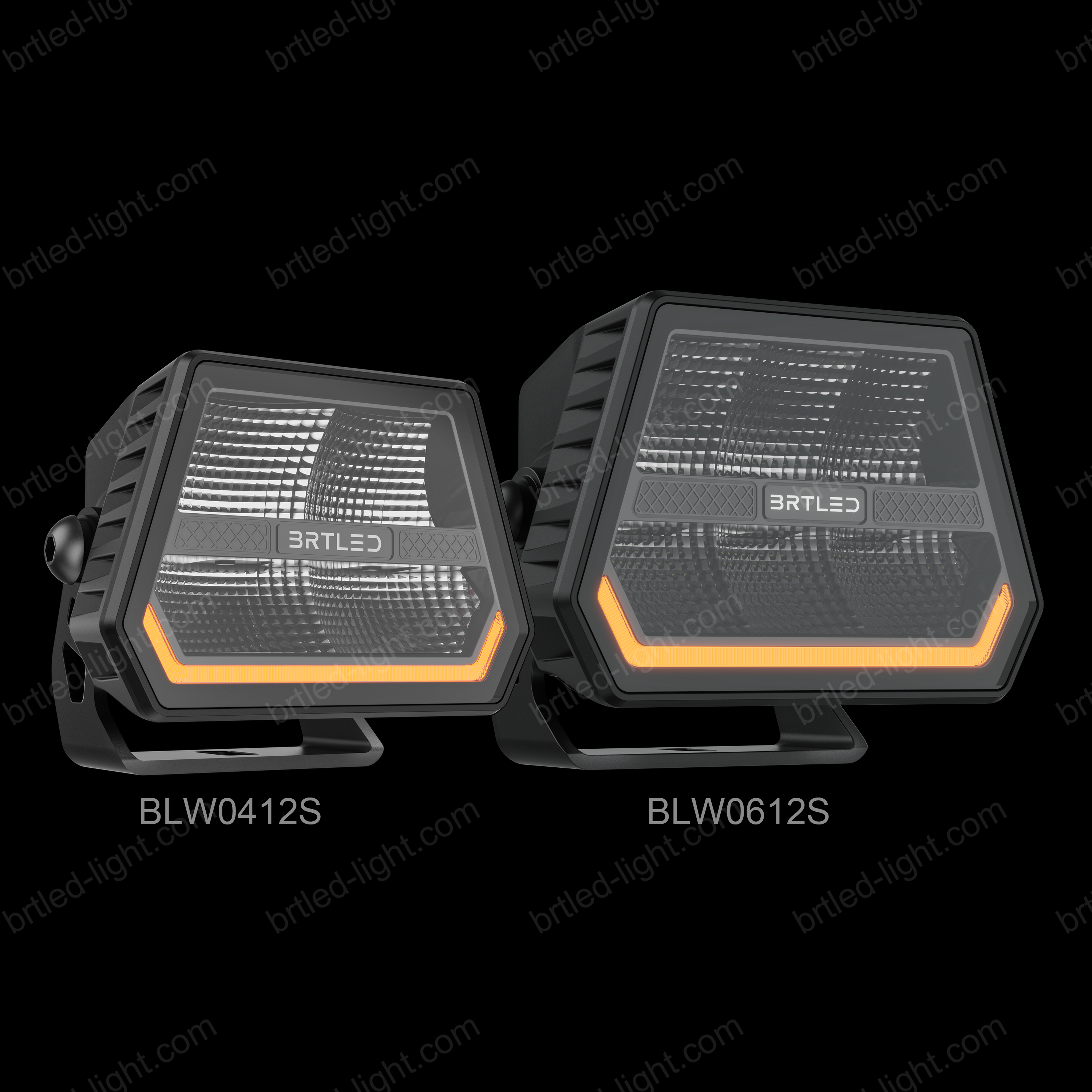

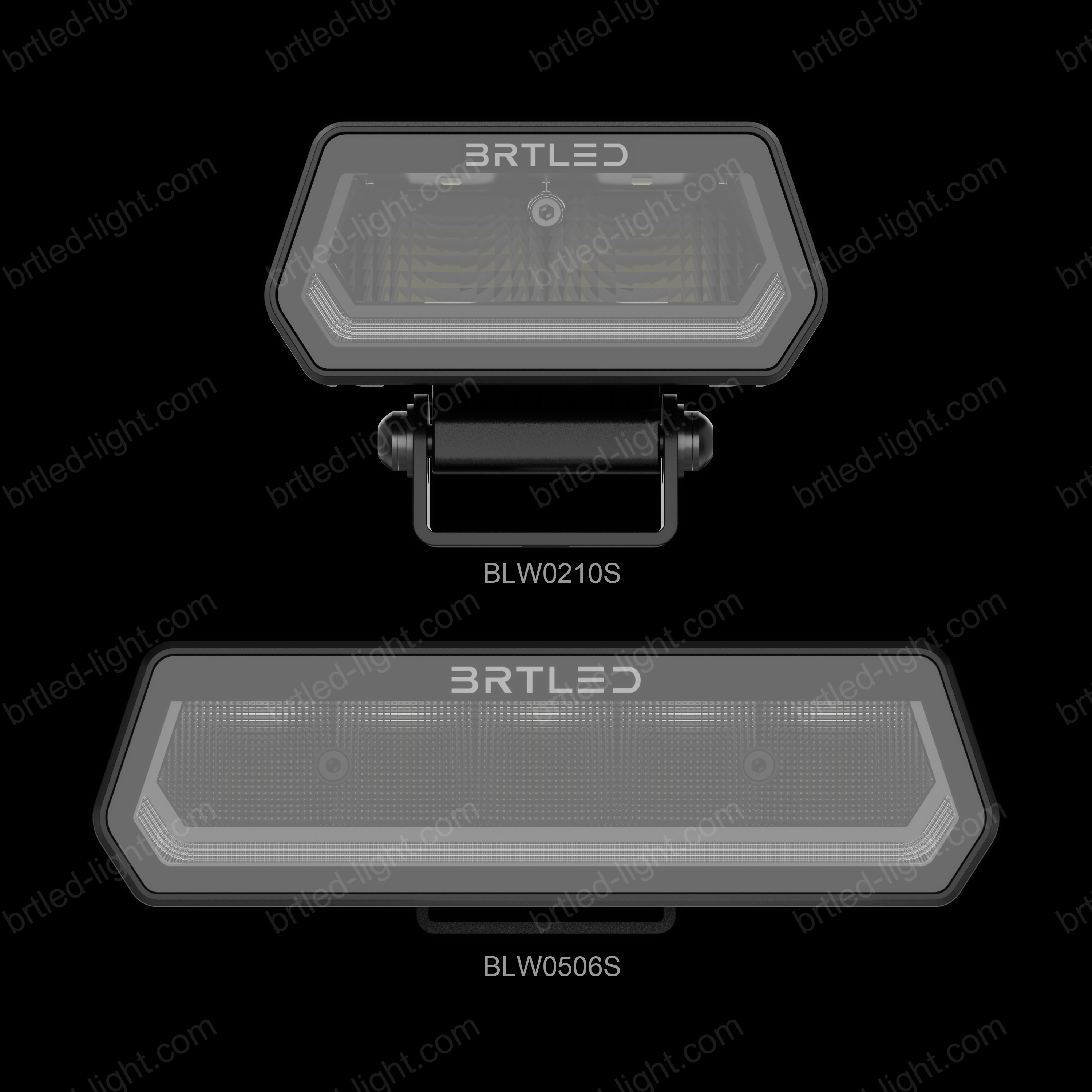

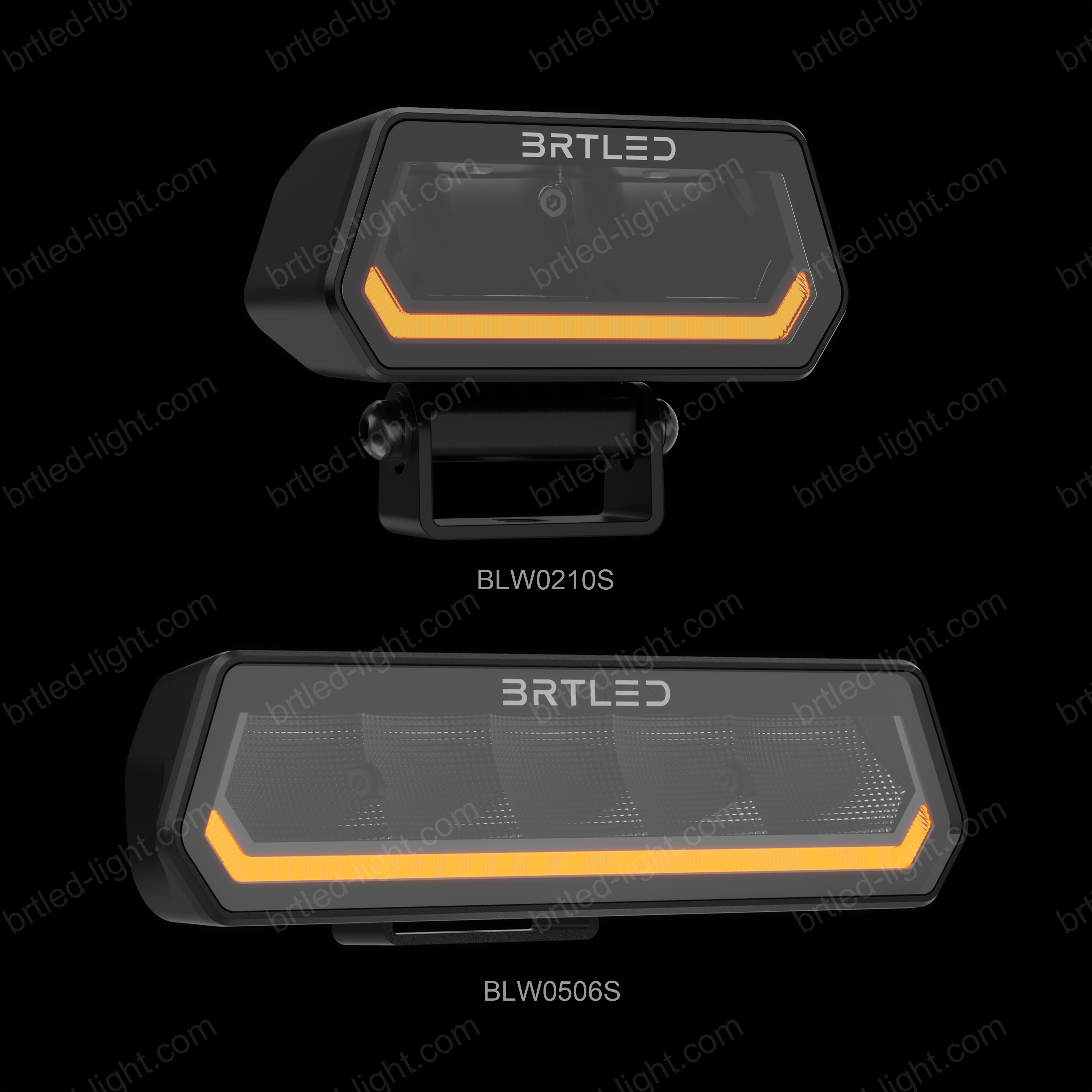

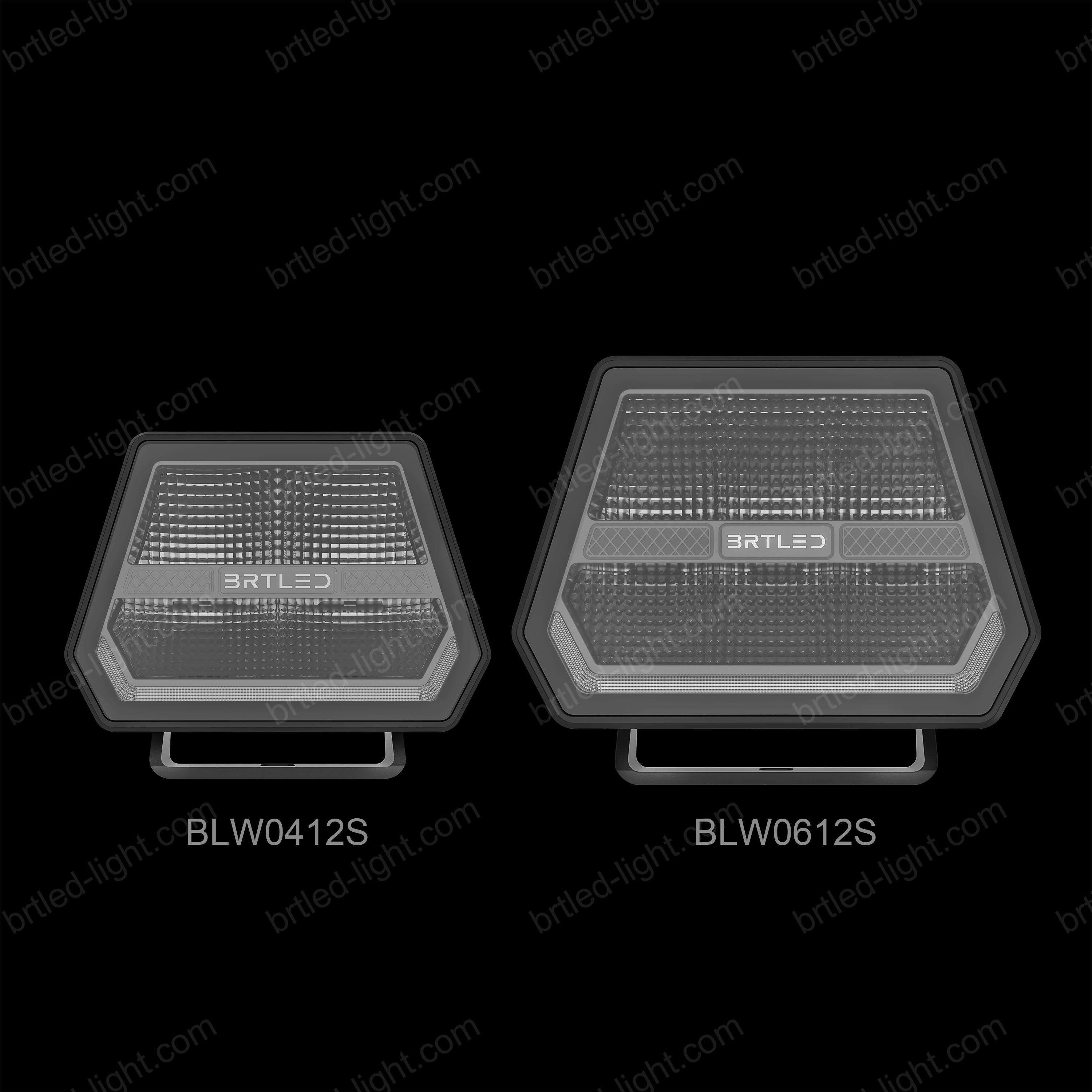

BLW0210S-BLW0506S-BLW0412S BLW0612S
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/R148-BLW0412S(Ref. No.:25-BLW0612S(Ref. No.:12.5)
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K/R148-BLW0412S(Ref. No.:25-BLW0612S(Ref. No.:12.5)
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs Power | Dimensions mm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |

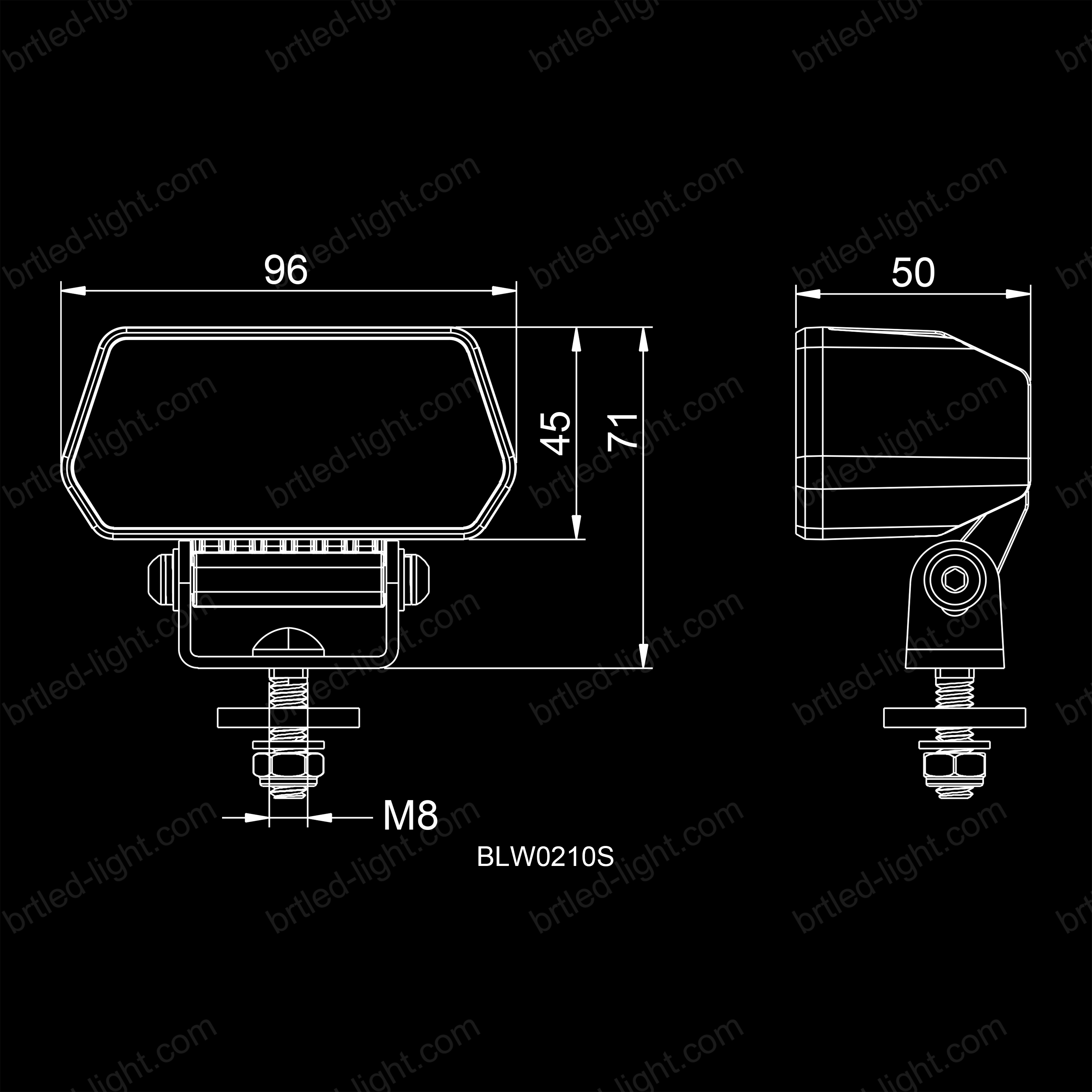

| BLW0210S | 2X10W | 96*45*50mm | Flood/Spot | Flood Light: 80° x 50° Spot Light: 10° | 1.6A/0.8A | 2800LM | Flood Light: 51M Spot Light: 251M |

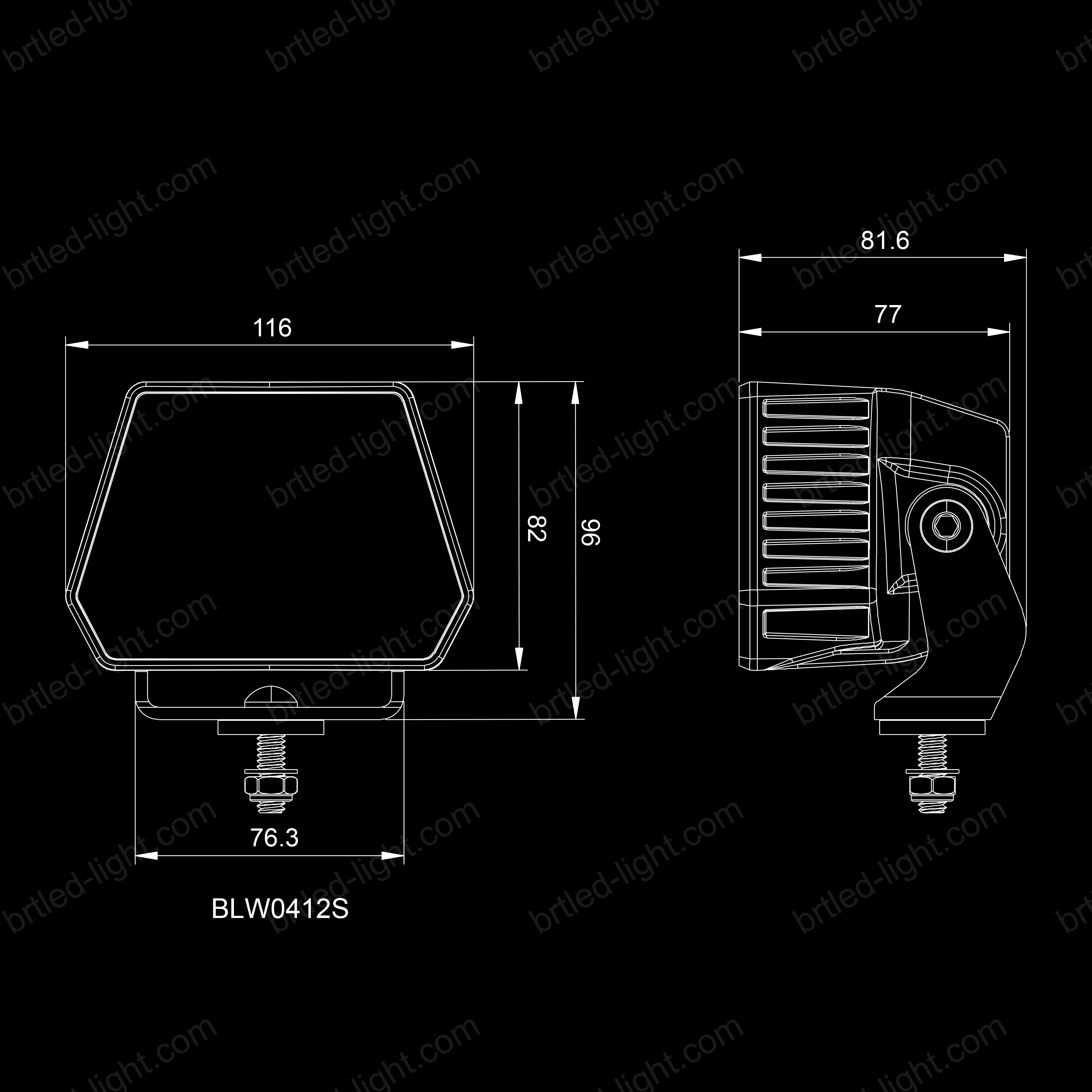

| BLW0412S | 4X15W | 116*82*77mm | Flood/Spot | Flood Light: 80° x 50° Spot Light: 25° | 3.6A/1.8A | 5200LM | Flood Light: 78M Spot Light: 330M |

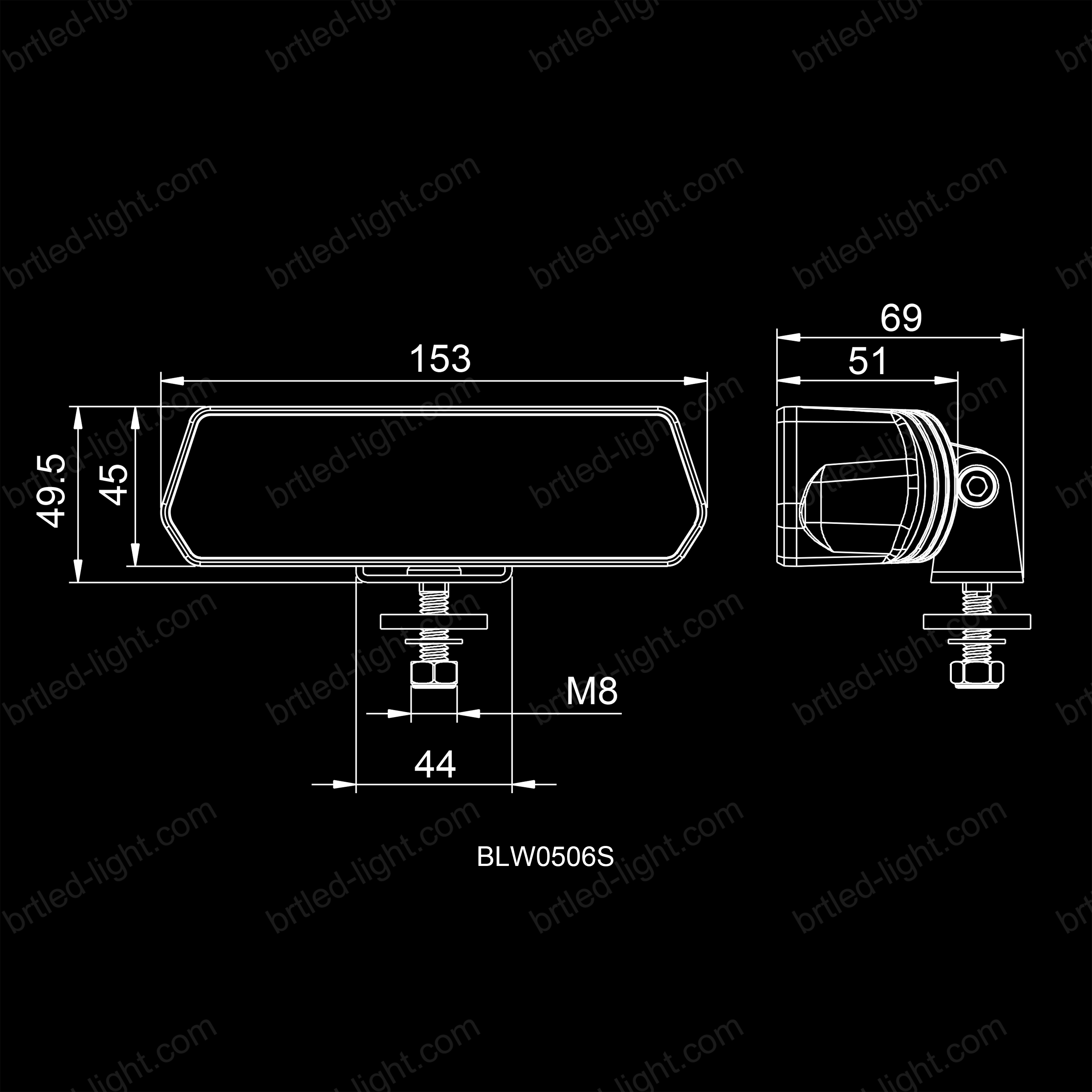

| BLW0506S | 5X6W | 153*45*69mm | Flood | Flood Light: 80° x 50° | 3.0A/1.4A | 2800LM | Flood Light: 68M |

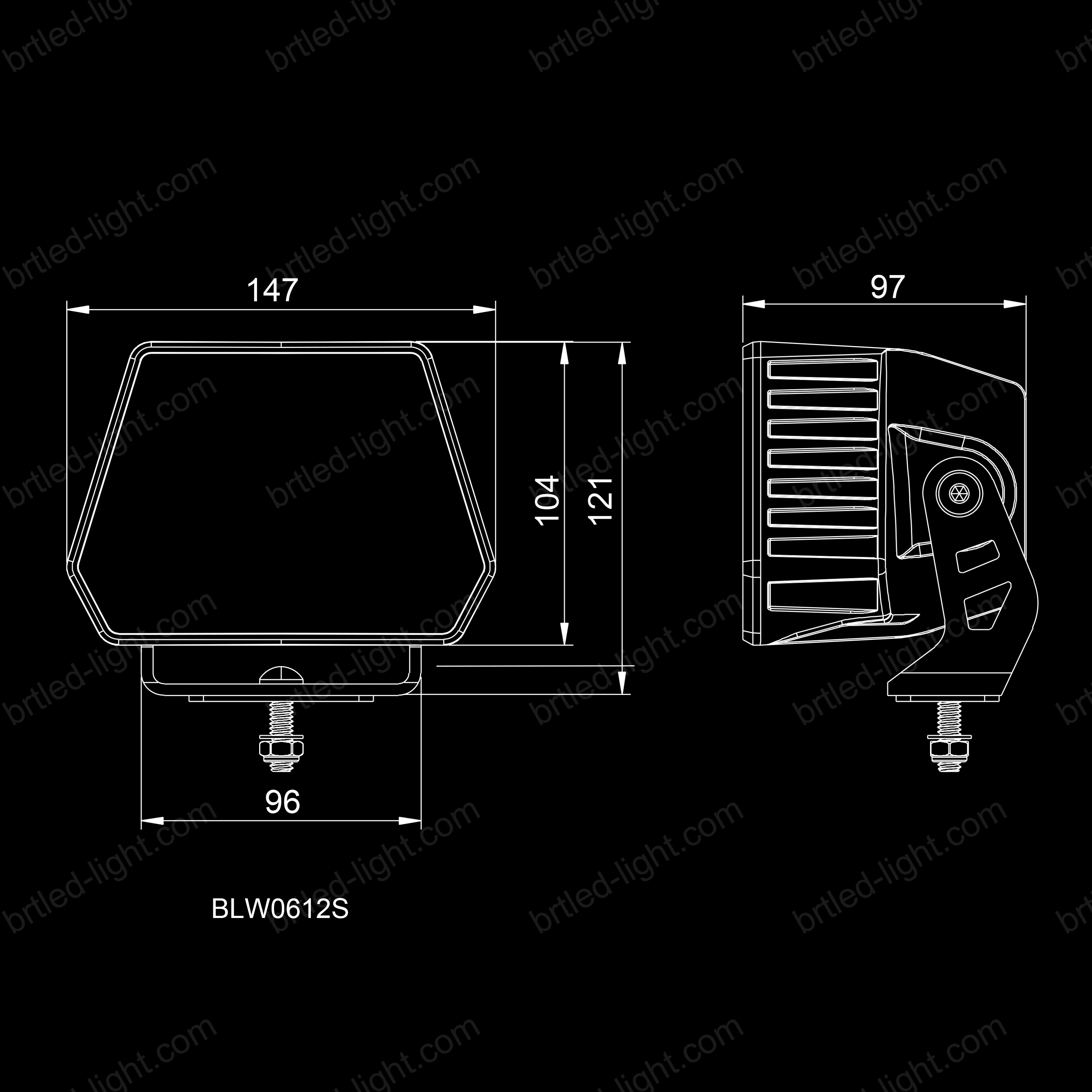

| BLW0612S | 6X15W | 147*104*97mm | Flood/Spot | Flood Light: 80°x50° Spot Light: 35° | 7.5A/3.4A | 8200LM | Flood Light: 103M Spot Light(off-road):408M Driving Light(E-Mark):246M |
