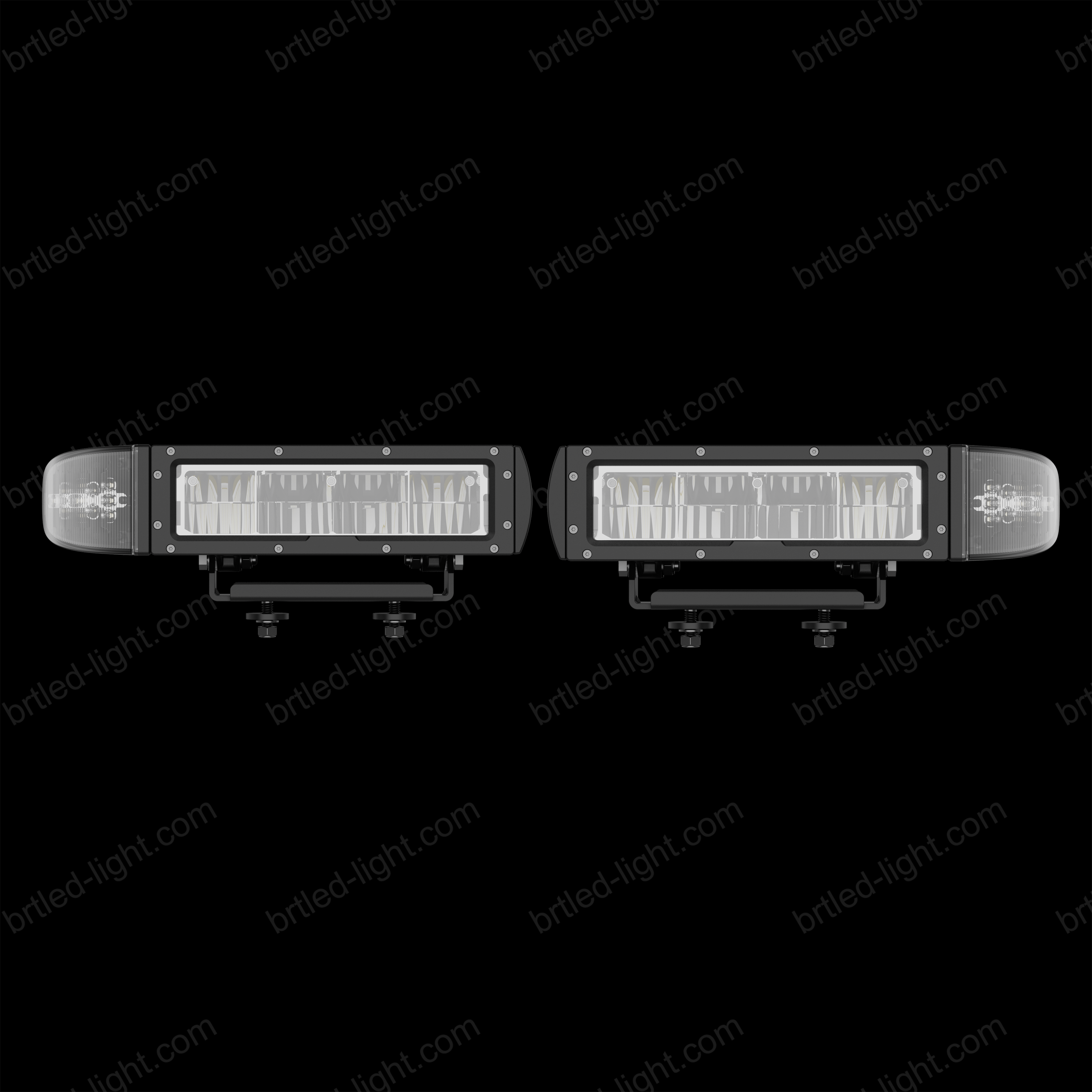

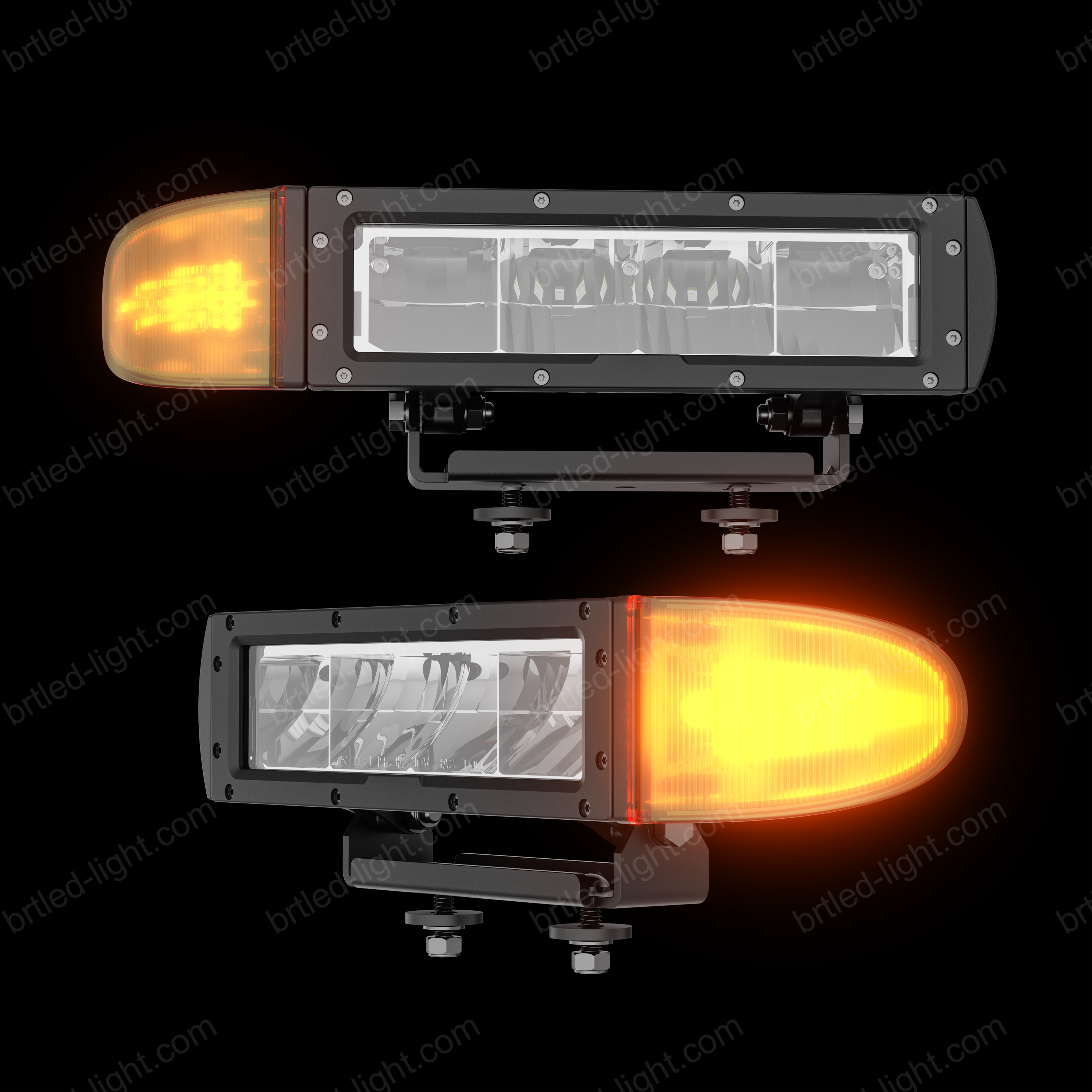

BLHL0408S
· Voltage: DC9-30V
· High beam/Low Beam/Indicator/Position light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· High beam/Low Beam/Indicator/Position light/Heated function
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R6/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

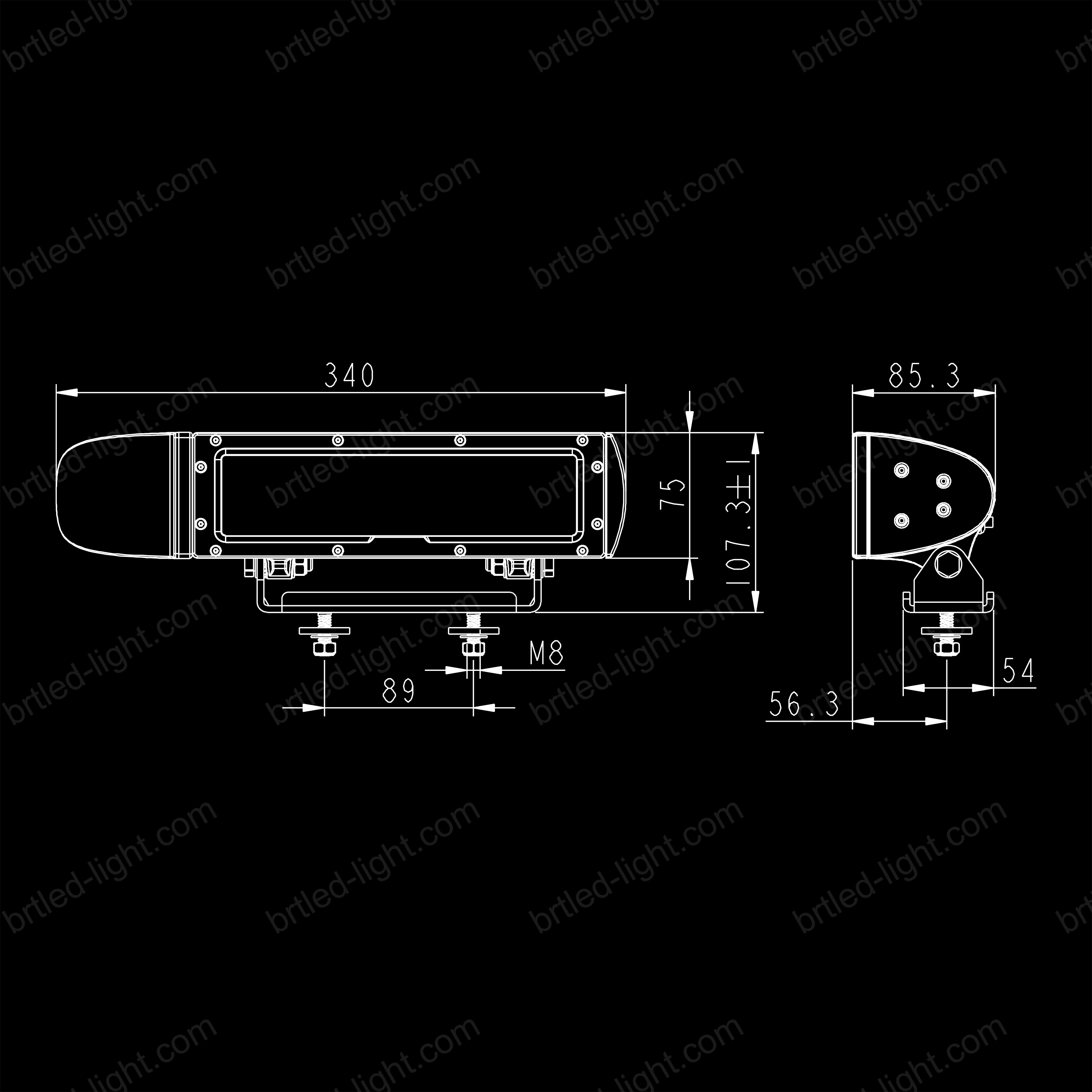

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (lm) | LUX@1M |
| BLHL0408S | High Beam: 4X10W Low Beam: 2X10W Indicator: 6X3W Position light: 3x3W | 340*107*85.3 | High Beam Low Beam | Approved (Ref. No.:12.5) | High Beam: 2.4A/1.3A Low Beam: 1.5A/0.8A Indicator: 1.8A/0.9A Position Light: 0.8A/0.4A Heated Lens: 1.9A/0.8A | High Beam: 3600lm Low Beam: 1800lm Indicator: 320lm Position Light: 160lm | High Beam:260M Low Beam: 131M |
