BLSG0406S
·Voltage: DC9-36V
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Die Cast Aluminum Alloy (ADC12) Heat-Sink
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· CE / ECE R10/IP68/IP69K
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

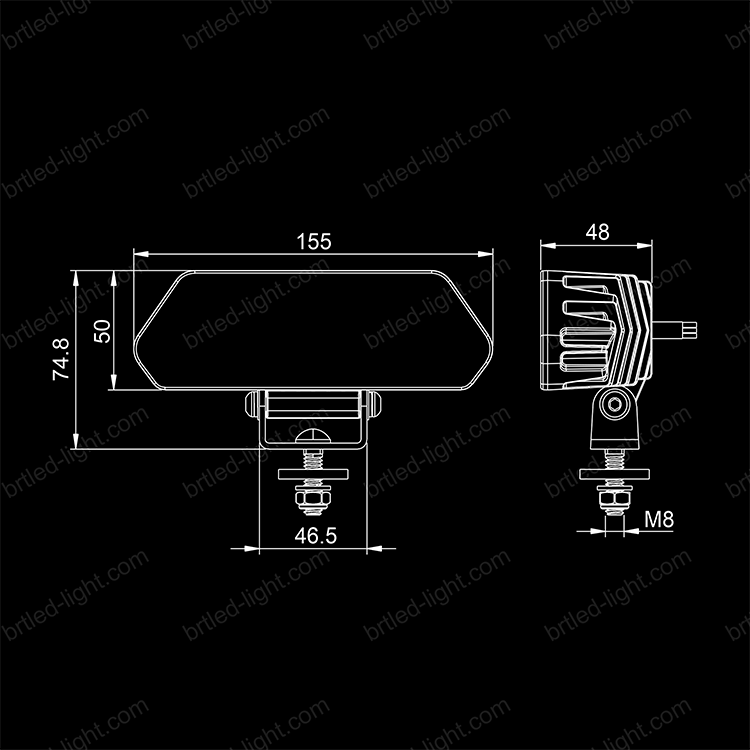

| Part NO. | LEDs Power | Dimensions mm | Beam pattern | Degrees | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |
| BLSG0406S | 4X6W | 155*50*48mm | Flood | 80° | Main Light: 1.8A / 0.9A Brake Light: 0.33A / 0.17A Warning Light: 0.33A / 0.17A | 2200LM | 39M |
