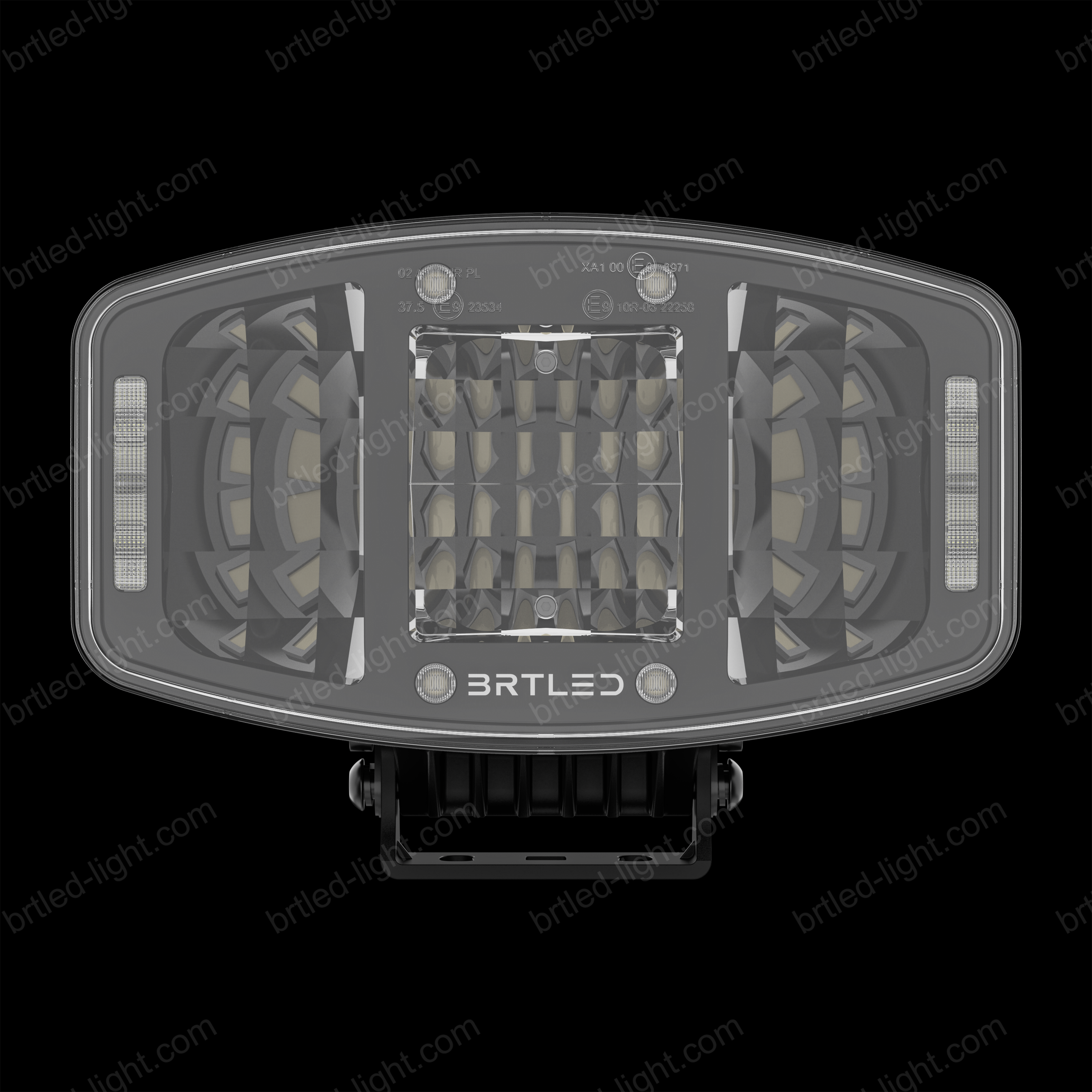

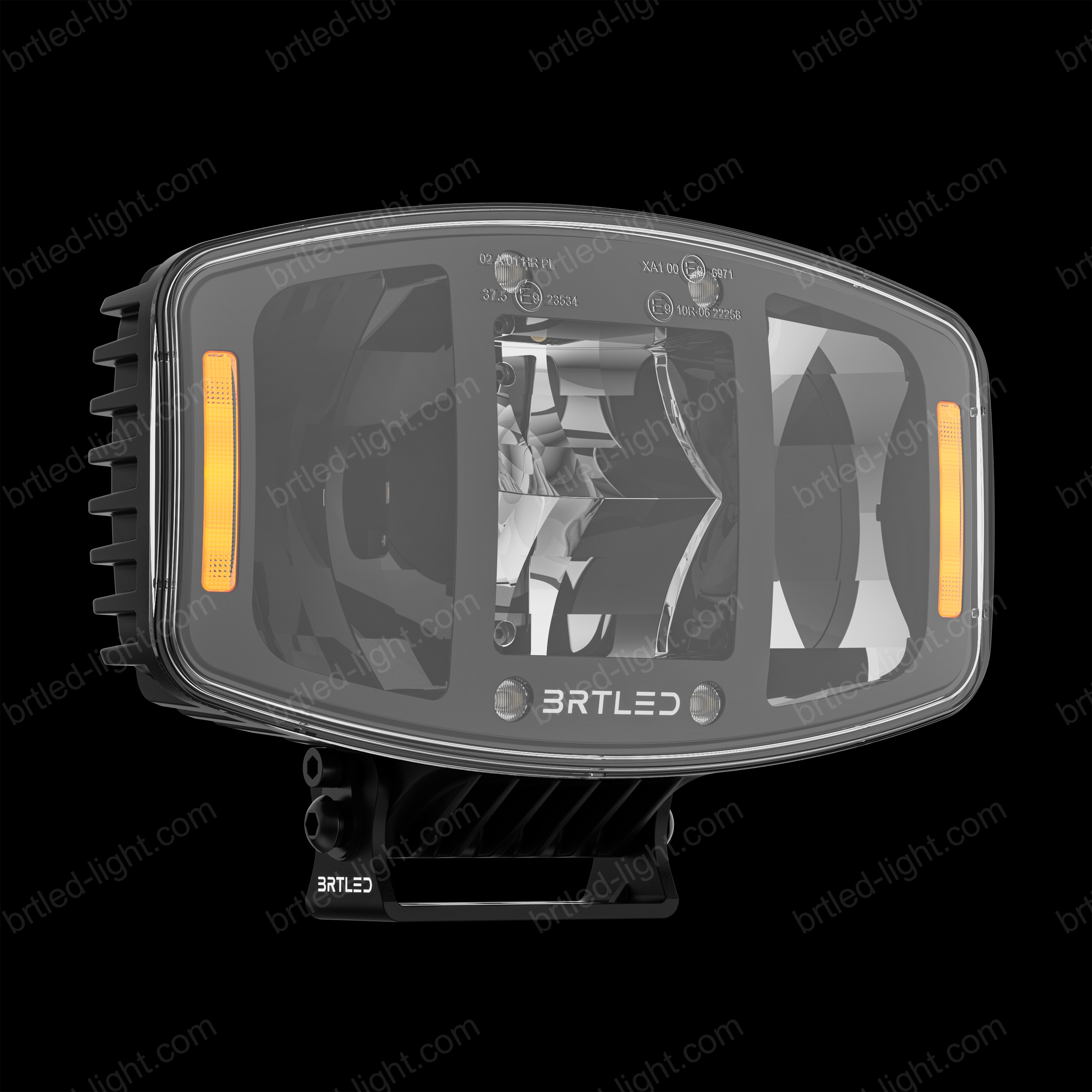

BLD0425S-WL
·Voltage: DC9-36V
· Euro Beam with Dual Position Light and warning light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 /R65/ R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Euro Beam with Dual Position Light and warning light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R7 /R65/ R10/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

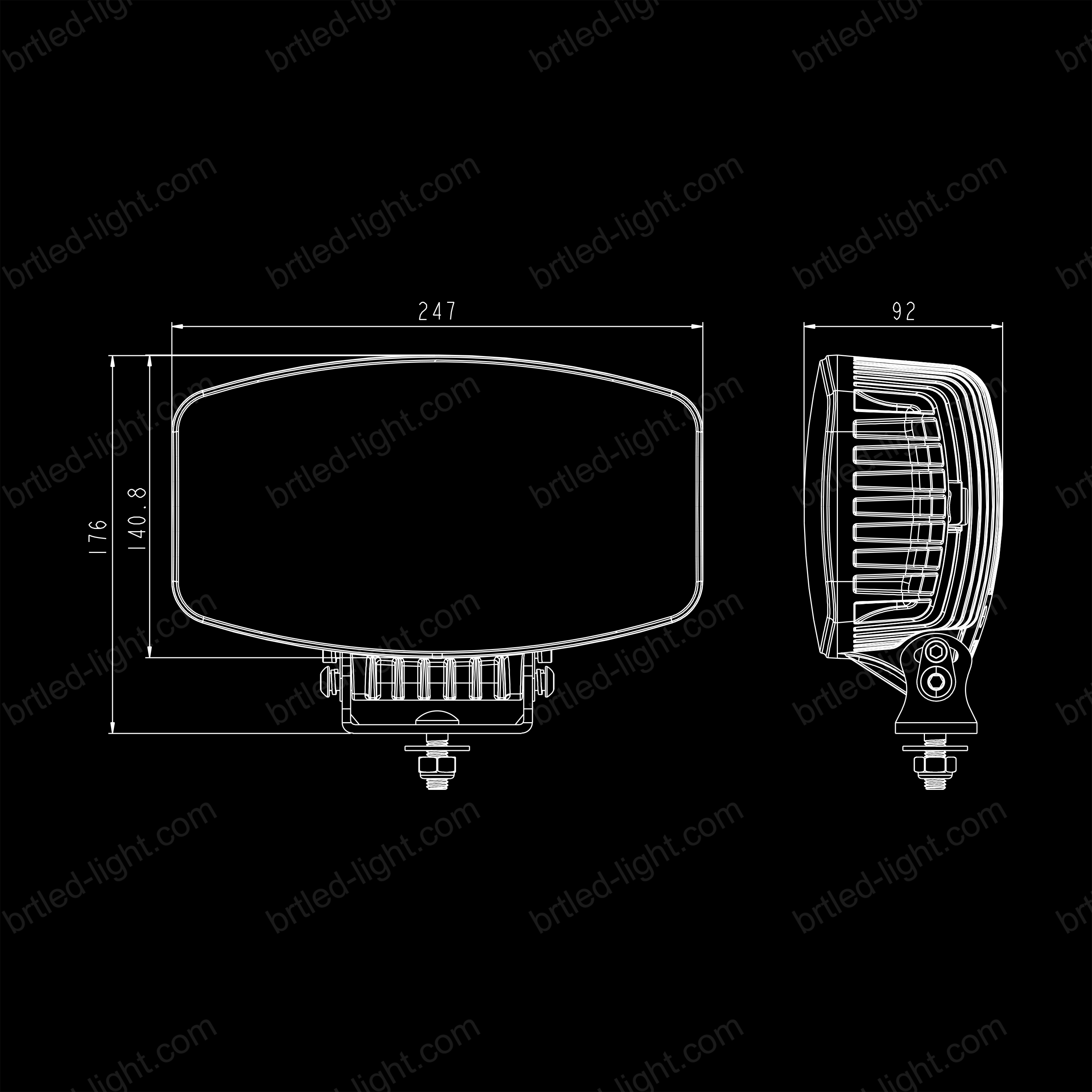

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |
| BLD0425S-WL | 4X25W | 247*176*92mm | Driving beam | Approved (Ref. No.:37.5) | 6.5A/3.3A | 10000LM | ECE R112: 425M |
