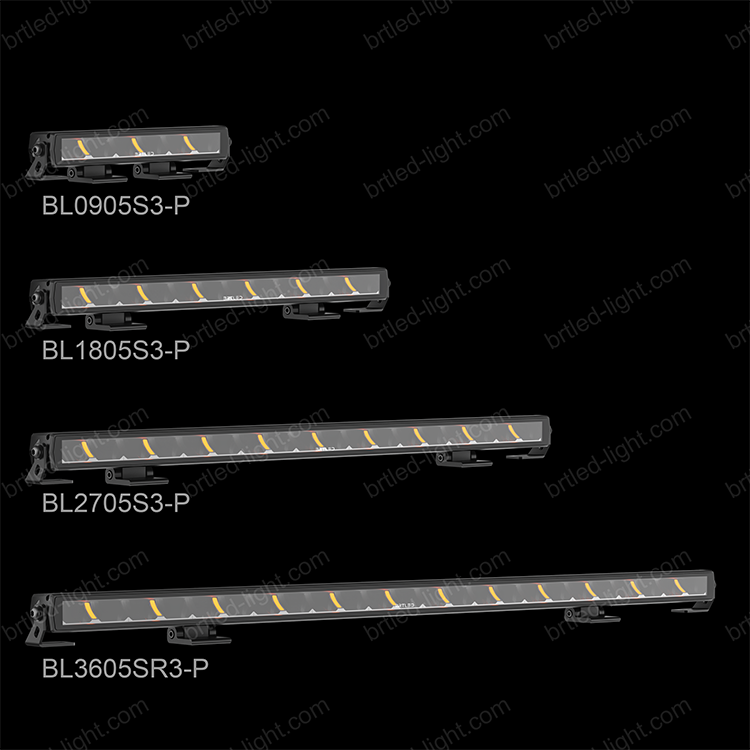

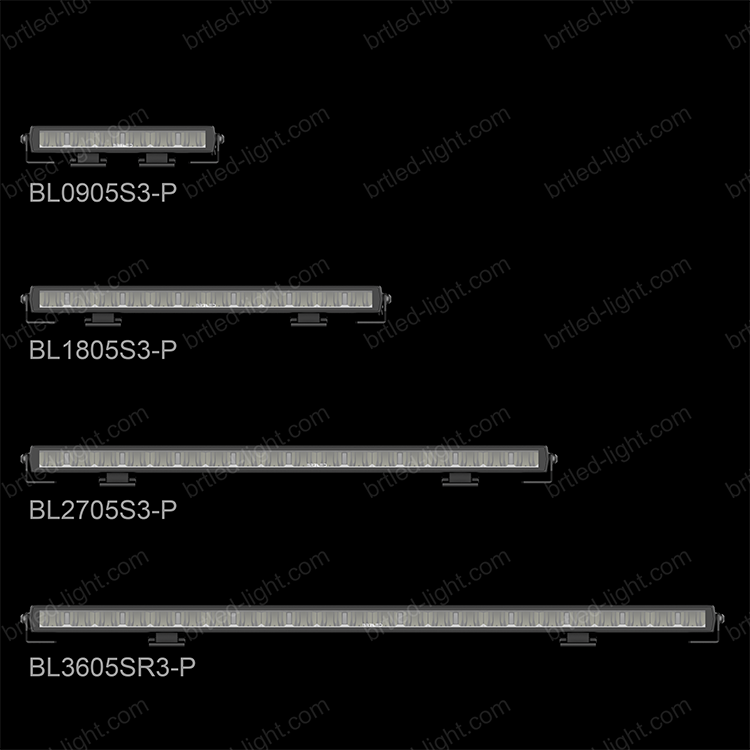

BL09-18-2705S3-P BL3605S3-P
·Voltage: DC9-36V
· Spot/Combo Beam
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R10/CE/R7
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· Spot/Combo Beam
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112 / R10/CE/R7
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail

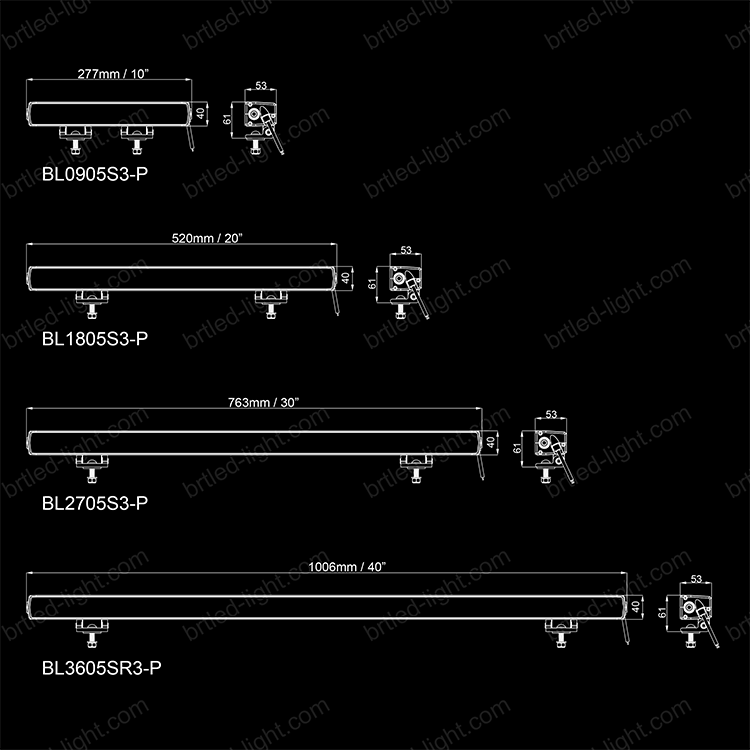

| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | AMP Draw (12V/24V) | Raw Luminous Flux (LM) | LUX@1M |
| BL0905S3 | 9X5W | 277*40.5*52.5mm | Spot Beam Combo Beam | Approved (Ref. No.:25) | 3.1A / 1.4A | 4100LM | Spot beam: 360M Combo beam: 307M |
| BL1805S3-P | 12X8W | 520*40.5*52.5mm | Driving beam | Approved (Ref. No.:50) | 6.2A / 2.6A | 9600LM | 458M |
| BL2705S3-P | 18X8W | 763*40.5*52.5mm | Driving beam | Approved (Ref. No.:50) | Full power: 9.2A / 4.6A ECE R112: 4.6A / 2.2A | 14400LM | Full power:585M ECE R112: 463M |
| BL3605SR3 | 36X5W | 1006*40.5*52.5mm | Driving Beam Combo Beam | / | 10.4A /5A | 16300LM | Driving Beam: 648M Combo beam: 630M |
