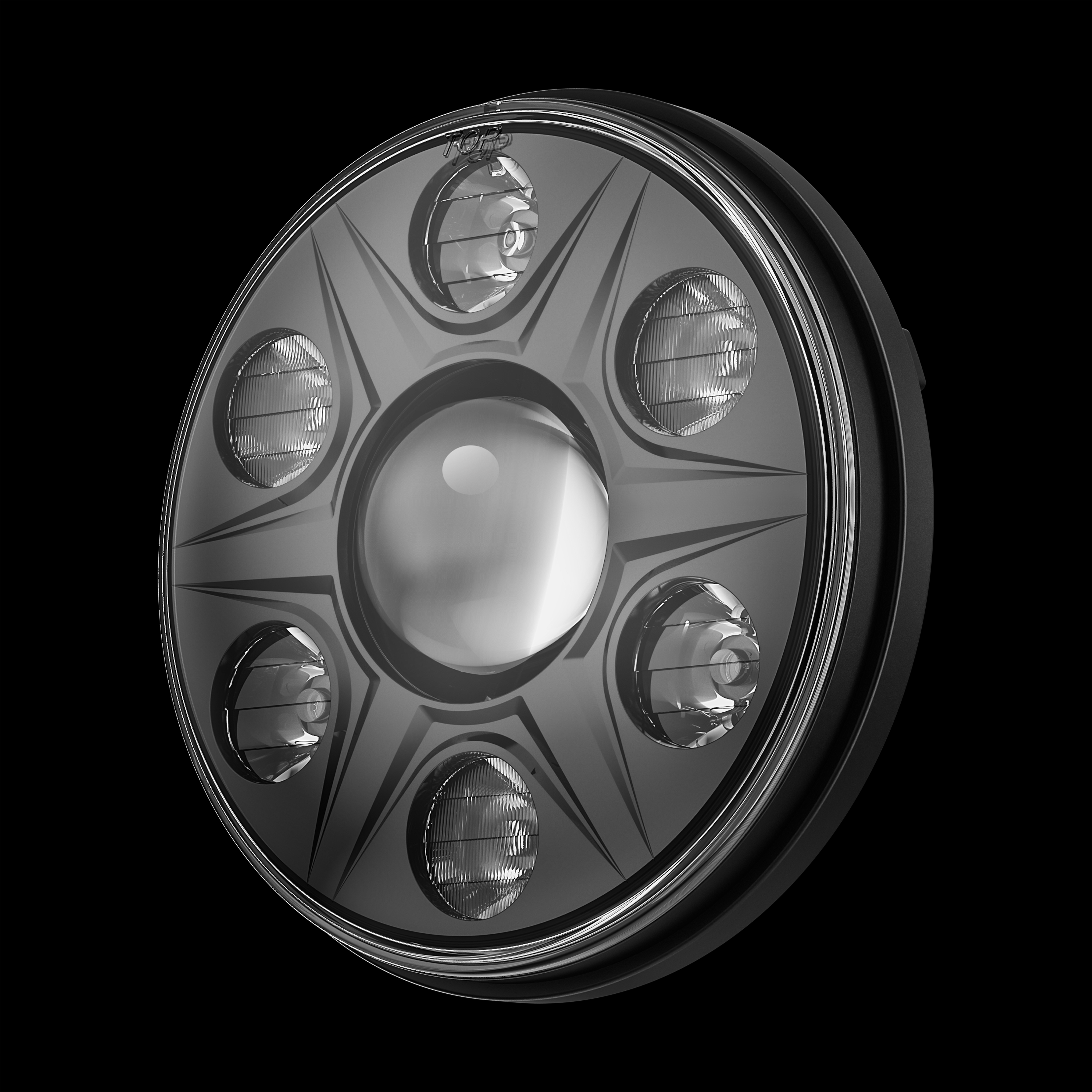

BLHL7R-2
· Voltage: DC9-36V
· High beam/Low Beam/Position light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
· High beam/Low Beam/Position light
· Anodized Polyester Powdercoat
· Electronic Thermal Management (ETM)
· EMC Compliant
· IP68/IP69K/ECE R112/R7/R10/DOT/CE
· Over / Under Voltage Protection
· Warranty: one year
· Environment temperature -40~+60 ° C
Detail
| Part NO. | LEDs | Dimensions mm | Beam pattern | ECE R112 | Raw Luminous Flux (lm) | LUX@1M |

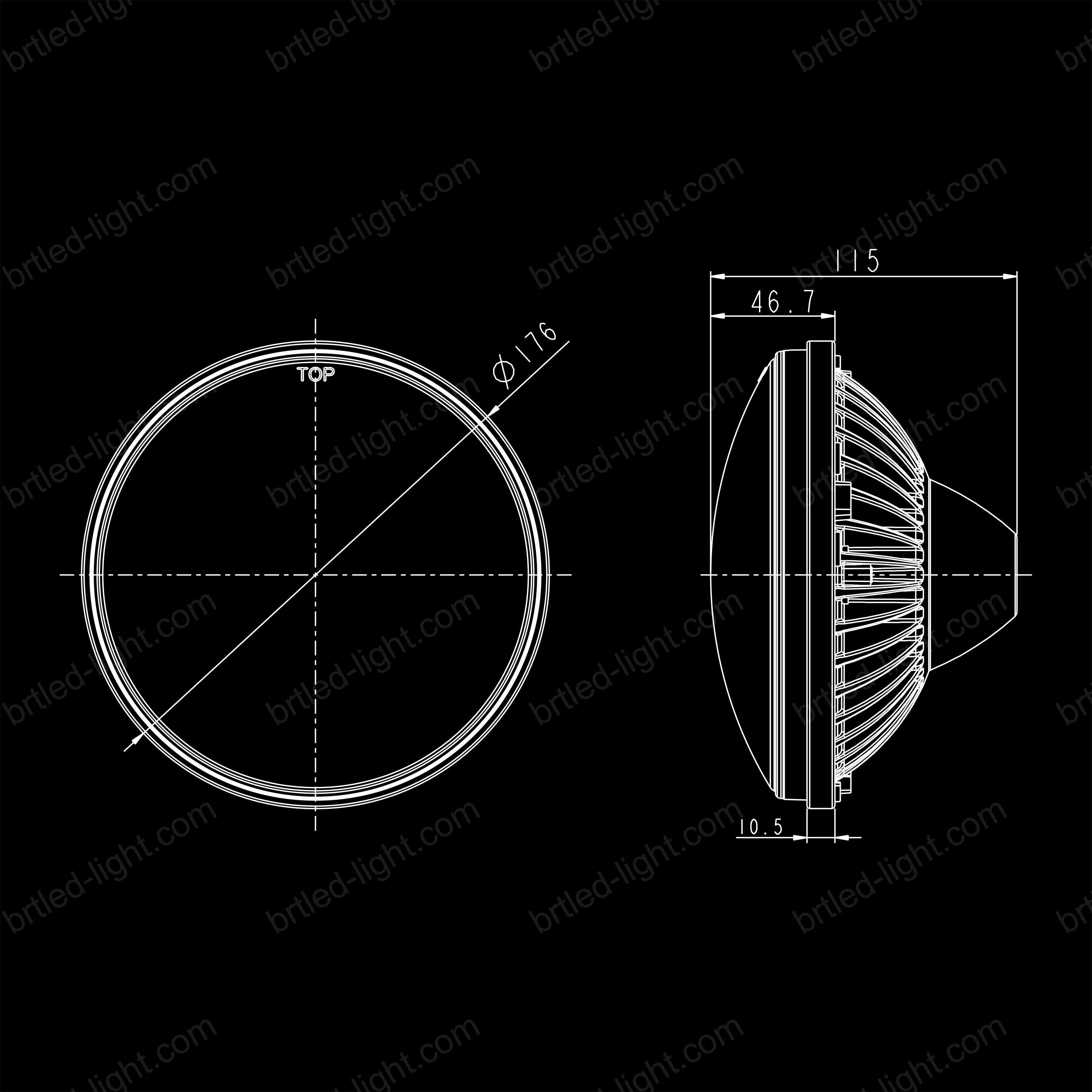

| BLHL7R-2 | High Beam: 40W Low Beam: 24W | Φ176*115 | High Beam Low Beam | Approved (Ref. No.:12.5) | High Beam: 3900lm Low Beam: 1800lm | High Beam:256M Low Beam: 187M |
